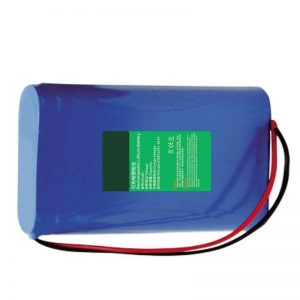

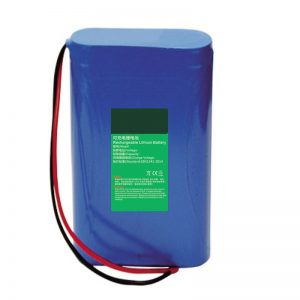

Lithium Battery 18650 10.8V 3000mAh

2020-08-26 00:40



NoItemStandardRemark
1ModelAIN10/8-3000
2Cell SpecificationICR18650/3000mAh/3.6V
3Battery Pack18650-3S1P-3000mAh-10.8V
4Rated Capacity3000mAhCustomizable
5Min Capacity2700mAh
6Energy32.4Wh
7Nominal Voltage10.8VCustomizable
8Voltage Before Shipment≥11.4V
9Inner Resistance≤150mΩ
10Charging Voltage12.6±0.2V
11Floating Charging Voltage12.65±0.2V
12Standard Charging Current600mA
13Max Charging Current1500mA
14Standard Discharging Current600mACustomizable
15Max Discharging Current3000mACustomizable
16Peak discharge current6000mA/0.1s
17Terminate Voltage8.25V
18SizeDia  75±1 mmCustomizable
Wide   60±1 mmCustomizable
Thickness   20±1 mmCustomizable
19WeightAround  150g±30g
20Output WayUL1007 22# 100±5mm Wires, 3±0.5mmCustomizable
21Working TemperatureCharge:0~45℃
Discharge:-20~60℃
Recommend Working Temperature:15℃~35℃
22Self-discharge RateThe Residual Capacity:   ≤3%/Month;    ≤15%/Year
Recoverable Capacity: ≤1.5%/Month;   ≤8%/Year
23Storage EnvironmentLess Than a Month:-20~+35℃、45~75%RH
Less Than 3 Months:-10~+35℃、45~75%RH
Recommended Storage Environment

:15~30℃、45~75%RH

24Warranty12 Month
25Operation StandardGB31241-2014
Long time storage:

When the battery needs to be stored for a long time, it should be charged to nearly 50% of the battery with a voltage of about 11.5V and placed under the recommended storage conditions. Do a full charge and discharge cycle at least once every 6 months (charge first, discharge and then recharge 50%).

Application Field:

Industrial supporting facilities, hand-held instruments and equipment, intelligent sweeping robot and other fields

Main Features:

1. Multiple protection functions: over charge, over discharge, over current, short circuit over temperature, etc.;

Note: All products do not support retail, please contact us for product prices!
