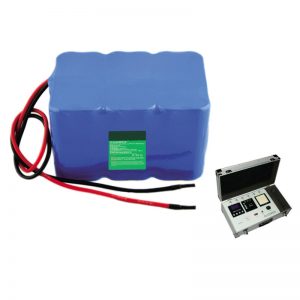

18650 10.8V26.8Ah Field water quality monitoring instrument lithium battery

2020-08-27 03:47

NO	Item	Standard	Remark
1	Model	AIN10/8-26800
2	Cell Specification	18650/3350mAh/3.6V
3	Battery pack	18650/3S8P/5Ah/10.8V	Customizable
4	Rated Capacity	26.8Ah	Customizable
5	Min Capacity	25.4Ah
6	Energy	289.44Wh
7	Nominal Voltage	10.8V	Customizable
8	Voltage Before Shipment	≥11.5V
9	Inner Resistance	≤150mΩ
10	Charging Voltage	12.60±0.2V
11	Floating Charging Voltage	12.75±0.2V
12	Standard Charging Current	5.36A
13	Max Charging Current	8A
14	Standard Discharging Current	5.36A
15	Max Discharging Current	10A
16	Peak discharge current	15A/0.1s
17	Terminate Voltage	9V
18	Size	Length 165±1 mm	Customizable
		Wide 75±1 mm	Customizable
		Thickness 58±1 mm	Customizable
19	Weight	Around 1300g±50g
20	Output Way	UL 3239 18# 200±2 Wires 2±0.5mm	Customizable
21	Working Temperature	Charge：0～45℃
		Discharge：-20～60℃
		Recommended Working Temperature：15℃～35℃
22	Self-discharge Rate	The Residual Capacity： ≤3%/Month; ≤15%/Year
22	Self-discharge Rate	Recoverable Capacity ： ≤1.5%/Month; ≤8%/Year
23	Storage Environment	Less Than a Month：-20～+35℃、45～75%RH
		Less Than 3 Months：-10～+35℃、45～75%RH
		Recommended Storage Temperature：15～30℃、45～75%RH
24	Warranty	12 Months
25	Operation Standard	GB31241-2014
Long time storage: When the battery needs to be stored for a long time, it should be charged to nearly 50% of the battery with a voltage of about 11.5V and placed under the recommended storage conditions. Do a full charge and discharge cycle at least once every 6 months (charge first, discharge and then recharge 50%). Application Field: Field water quality monitor lithium battery, laser particle counter lithium battery, intelligent robot lithium battery, track signal lamp standby power lithium battery, industrial instrumentation, industrial control monitoring instrument, medical infusion pump lithium battery portable instrument power supply and other fields. Main Features: 1. Multiple protection functions: over charge, over discharge, over current, short circuit over temperature, etc.;
