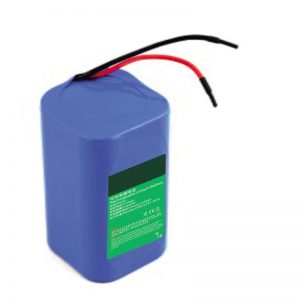

18650 14.4V 3000mAh Automatic charge vacuum cleaner lithium battery

2020-08-27 01:45

NoItemStandardRemark
1ModelAIN3/6-6000
2Cell Specification18650/3000mAh/3.6V
3Battery pack18650/4S1P/6Ah/3.6VCustomizable
4Rated Capacity3.0AhCustomizable
5Min Capacity2.8Ah
6Energy43.2Wh
7Nominal Voltage14.4VCustomizable
8Voltage Before Shipment≥15.2V
9Inner Resistance≤150mΩ
10Charging Voltage16.8±0.2V
11Floating Charging Voltage17.0±0.2V
12Standard Charging Current0.6A
13Max Charging Current1.5A
14Standard Discharging Current0.6A
15Max Discharging Current5.0A
16Peak discharge current10A/0.1s
17Terminate Voltage3.0V
18SizeLength  75±1 mmCustomizable
Wide  38±1 mmCustomizable
Thickness  38±1 mmCustomizable
19WeightAround 260g±10g
20Output WayUL1007/20#, Wire 200mmCustomizable
21Working TemperatureCharge:0~45℃
Discharge:-20~60℃
Recommended Working Temperature:15℃~35℃
22Self-discharge RateThe Residual Capacity:   ≤3%/Month;    ≤15%/Year
Recoverable Capacity: ≤1.5%/Month;   ≤8%/Year
23Storage EnvironmentLess Than a Month:-20~+35℃、45~75%RH
Less Than 3 Months:-10~+35℃、45~75%RH
Recommended Storage Temperature :15~30℃、45~75%RH
24Warranty12 Months
25Operation StandardGB31241-2014
Long time storage:

When the battery needs to be stored for a long time, it should be charged to a state close to 50% of the battery with a voltage of about 15.2V and placed under the recommended storage conditions. Do a full charge and discharge cycle at least once every 6 months (charge first, discharge and then recharge 50%).

Application Field:

Oil well detection instrument lithium battery, industrial instrumentation, industrial control monitoring instruments, medical infusion pump lithium battery portable instrument power supply and other fields.

Main Features:

1. Multiple protection functions: over charge, over discharge, over current, short circuit over temperature, etc.;
