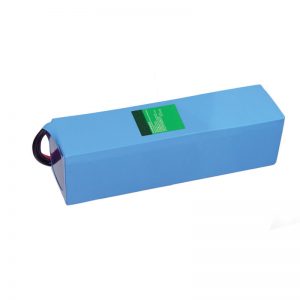

18650 48V10Ah Security power lithium battery

2020-08-26 06:42

NoItemStandardRemark
1ModelAIN46/8-10000
2Cell Specification18650/3350mAh/3.6V
3Battery pack18650-13S3P-10Ah-46.8V
4Rated Capacity10.0AhCustomizable
5Min Capacity9.50Ah
6Energy468Wh
7Nominal Voltage46.8V(48V)Customizable
8Voltage Before Shipment≥49.4V
9Inner Resistance≤180mΩ
10Charging Voltage54.6±0.2V
11Floating Charging Voltage55.25±0.2V
12Standard Charging Current2.0A0.2C
13Max Charging Current5.0A0.5C
14Standard Discharging Current2.0ACustomizable
15Max Discharging Current10ACustomizable
16Peak discharge current20A/0.1s
17Terminate Voltage35.75V
18SizeLength   290±1 mmCustomizable
Wide   95±1 mmCustomizable
Thickness   85±1 mmCustomizable
19WeightAround 2.8kg±0.3kg
20Output WayUL3135 AWG 14# Wires  300mmCustomizable
21Working TemperatureCharge:0~45℃
Discharge:-20~60℃
Recommended Working Temperature:15℃~35℃
22Self-discharge RateThe Residual Capacity:   ≤3%/Month;    ≤15%/Year
Recoverable Capacity

: ≤1.5%/Month;   ≤8%/Year

23Storage EnvironmentLess Than a Month:-20~+35℃、45~75%RH
Less Than 3 Months:-10~+35℃、45~75%RH
Recommended Storage Temperature:15~30℃、45~75%RH
24Warranty12 Months
25Operation StandardGB31241-2014
Long time storage:

When the battery needs to be stored for a long time, it should be charged to a state close to 50% of the battery with a voltage of about 50.7V and placed under the recommended storage conditions. Do a full charge and discharge cycle at least once every 6 months (charge first, discharge and then recharge 50%).

Application Field:

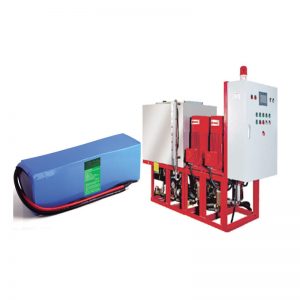

Fire motor drive, lithium battery of medical rehabilitation robot, lithium battery of patrol robot, power supply of medical instrument and equipment, security instrument and meter, wireless monitoring equipment, RGV rail transit, unmanned ship, standby power supply of security, etc

Main Features:

1, super large capacity: imported high energy density 18650/3./6 V/3350mAh cell, small volume, high capacity.

2. Multiple protection functions: over charge, over discharge, over current, short circuit over temperature, etc.
