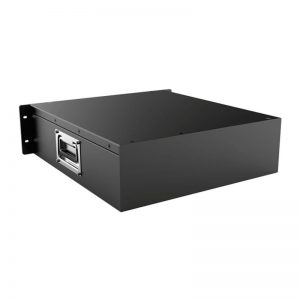

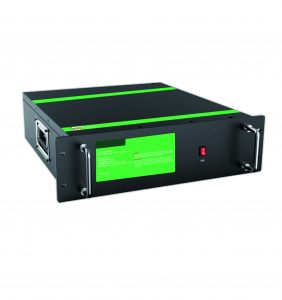

Lithium iron phosphate for communication base stations Prismatic 48V 50Ah

2020-08-26 09:00

NoItemStandard      Remark
2Cell SpecificationFe25Ah/25Ah/3.2V LFP
3Battery packFe-15S2P-50Ah-48V
4Rated Capacity50.0AhCustomizable
5Min Capacity45.0Ah
7Nominal Voltage48VCustomizable
8Voltage Before Shipment≥49.4V
9Inner Resistance≤200mΩ
10Charging Voltage54.0±0.2V
11Floating Charging Voltage54.75±0.2V
12Standard Charging Current10A0.2C
13Max Charging Current25A  0.5C
14Standard Discharging Current10ACustomizable
15Max Discharging Current50ACustomizable
16Peak discharge current150A/0.1s
17Terminate Voltage37.5V
18SizeLength   482±1 mmCustomizable
Wide   477±1 mmCustomizable
Thickness   133.2±1 mmCustomizable
19WeightAround 36kg±0.5kg
20Output WayCustomizable
21Working TemperatureCharge:0~45℃
Recommended Working Temperature:15℃~35℃
22Self-discharge RateThe Residual Capacity:   ≤3%/Month;    ≤15%/Year
Recoverable Capacity

: ≤1.5%/Month;   ≤8%/Year

23Storage EnvironmentLess Than a Month:-20~+35℃、45~75%RH
Less Than 3 Months:-10~+35℃、45~75%RH
Recommended Storage Temperature:15~30℃、45~75%RH
24Warranty12 Months
25Operation StandardGB31241-2014
Long time storage:

When the battery needs to be stored for a long time, it should be charged to a state close to 50% of the battery with a voltage of about 50.7V and placed under the recommended storage conditions. Do a full charge and discharge cycle at least once every 6 months (charge first, discharge and then recharge 50%).

Application Field:

Spare lithium batteries for mobile communication base stations, lithium batteries for patrol robots, power supplies for medical devices and equipment, security instruments and meters, wireless monitoring equipment, RGV rail transit, unmanned ships, standby power supplies for security, etc

Main Features:

communication function: the LCD display voltage power, easily display power;

terminal output terminal: the terminal large current output interface, and to increase the conductive reliability;

data communications management: adopt seiko IC + TI charger management chip, accurate data transmission, accurate temperature control, maximum limit to eliminate potential safety problems; RS485 communication protocol; battery safety, special handle, good low temperature performance, long cycle life.

battery cycle life is high, accord with low carbon, energy saving, environmental protection value concept;


Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!
