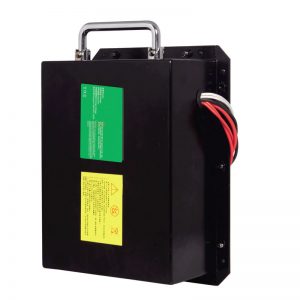

26650 Photovoltaic solar panel cleaning intelligent robot Iron phosphate lithium battery 25.6V10Ah

2020-08-26 02:33

NoItemStandardRemark
1ModelAIN25/6-3500
2Cell Specification26650/3500mAh/3.2V LFP
3Battery pack26650-8S3P-10Ah-25.6V
4Rated Capacity10AhCustomizable
5Min Capacity9Ah
6Energy256Wh
7Nominal Voltage25.6V(24V)Customizable
8Voltage Before Shipment≥26.4V
9Inner Resistance≤200mΩ
10Charging Voltage28.80±0.2V
11Floating Charging Voltage29.20±0.2V
12Standard Charging Current2A0.2C
13Max Charging Current5A0.5C
14Standard Discharging Current2ACustomizable
15Max Discharging Current10ACustomizable
16Peak discharge current30A/0.1s
17Terminate Voltage20V
18SizeLength   220±1 mmCustomizable
Wide   165±1 mmCustomizable
Thickness   85±1 mmCustomizable
19WeightAround 4.2kg±0.5kg
20Output WayCustomizable
21Working TemperatureCharge:0~45℃
Discharge:-20~60℃
Recommended Working Temperature:15℃~35℃
22Self-discharge RateThe Residual Capacity:   ≤3%/Month;    ≤15%/Year
Recoverable Capacity

: ≤1.5%/Month;   ≤8%/Year

23Storage EnvironmentLess Than a Month:-20~+35℃、45~75%RH
Less Than 3 Months:-10~+35℃、45~75%RH
Recommended Storage Temperature:15~30℃、45~75%RH
24Warranty12 Months
25Operation StandardGB31241-2014
Long time storage:

When the battery needs to be stored for a long time, it should be charged to nearly 50% of the battery with a voltage of about 27.2V and placed under the recommended storage conditions. Do a full charge and discharge cycle at least once every 6 months (charge first, discharge and then recharge 50%).

Application Field:

Rail transit communication, unmanned ship communication, portable communication equipment, mobile communication base station, photovoltaic solar energy storage, energy storage power station, home energy storage, traffic signs, mining, medical equipment and equipment, industrial machinery equipment, security instrumentation, power tools, wireless monitoring equipment, automation equipment, etc.

Main Features:

1. Battery pack is safe and has good low temperature performance and long cycle life.

2. Battery pack cycle life is high, in line with the low carbon, energy saving, environmental values.

3. The BMS system is built into the battery, with multiple protection functions. The PCM/BMS adopts the most advanced chips and MOS from Japan and the United States, and is balanced.

4. The car gauge electric cell can be selected as a combination unit to ensure the consistency, stability and safety of the battery pack.

5. Multi-string combination and battery modular design.

6. Small size, light weight, long life, high replacement efficiency, deep charging and discharging, easy to carry, to provide your system with reliable, high-quality power and energy

7. Power battery has the advantages of more cycle charge and discharge times, low self-discharge rate, long service life, strong deep discharge ability, high charging efficiency, strong power, strong anti-seismic ability, less maintenance or maintenance free, etc.
