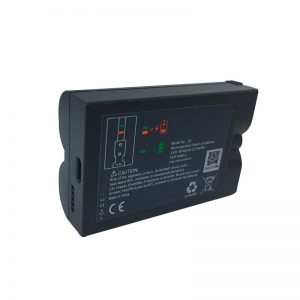

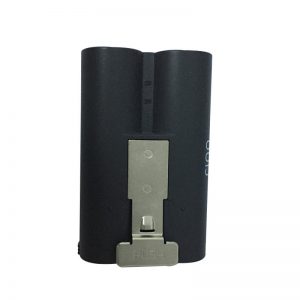

3.6V 6000mAh 18650 Smart home doorbell lithium battery

2020-08-27 02:20

NO	Item	Standard	Remark
1	Model	AIN3/6-6140
2	Cell Specification	ICR18650/3070mAh/3.6V
3	Battery pack	ICR18650/1S2P/6140mAh/3.6V	Customizable
4	Rated Capacity	6140mAh	Customizable
5	Min Capacity	5800mAh
6	Energy	22.1 Wh
7	Nominal Voltage	3.6V	Customizable
8	Voltage Before Shipment	≥3.9V
9	Inner Resistance	≤150mΩ
10	Charging Voltage	5.00±0.2V	5V USB
11	Floating Charging Voltage	5.15±0.2V
12	Standard Charging Current	1.2A
13	Max Charging Current	3.0A
14	Standard Discharging Current	1.2A
15	Max Discharging Current	3.0A
16	Peak discharge current	5A/0.1s
17	Terminate Voltage	3.0V
18	Size	Length 70.2±1 mm	Customizable
		Wide 45.7±1 mm	Customizable
		Thickness 22.4±1 mm	Customizable
19	Weight	Around 130g±10g
20	Output Way		Customizable
21	Working Temperature	Charge：0～45℃
		Discharge：-20～60℃
		Recommended Working Temperature：15℃～35℃
22	Self-discharge Rate	The Residual Capacity： ≤3%/Month; ≤15%/Year
22	Self-discharge Rate	Recoverable Capacity ： ≤1.5%/Month; ≤8%/Year
23	Storage Environment	Less Than A Month：-20～+35℃、45～75%RH
		Less Than 3 Months：-10～+35℃、45～75%RH
		Recommended Storage Temperature：15～30℃、45～75%RH
24	Warranty	12 Months
25	Operation Standard	GB31241-2014
Long time storage: When the battery needs to be stored for a long time, it should be charged to nearly 50% of the battery with a voltage of about 3.9V and placed under the recommended storage conditions. Do a full charge and discharge cycle at least once every 6 months (charge first, discharge and then recharge 50%). Application Field: Smart home doorbell, smart home curtain, smart home robot, mobile POS terminal polymer battery, portable printer lithium battery, financial instrument equipment and other fields. Main Features: 1. Multiple protection functions: over charge, over discharge, over current, short circuit over temperature, etc.; 2. USB charging function: compatible with the traditional 5V USB charging mode; 3. Hardware output terminal: Adopt gold-plated shrapnel output mode to increase the conductivity reliability; 4. LED power display: display the charging status and charging process of the battery to improve the recognition effect of the product; 5. Data communication management: It adopts seiko IC+TI software management chip, precise data transmission and precise temperature control to eliminate security risks to the greatest extent. 6. Battery pack is safe and has good low temperature performance and long cycle life; 7. Battery pack cycle life is high, in line with the values of low carbon, energy saving and environmental protection;
