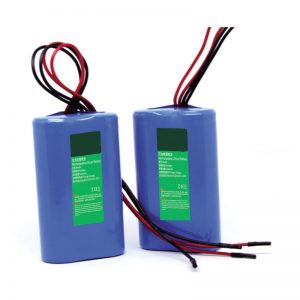

18650 3.6V 6000mAh Well tester lithium battery

2020-08-27 01:01

NO	Item	Standard	Remark
1	Model	AIN3/6-3000
2	Cell Specification	18650/3000mAh/3.6V
3	Battery pack	18650/1S2P/6Ah/3.6V	Customizable
4	Rated Capacity	6.0Ah	Customizable
5	Min Capacity	5.4Ah
6	Energy	21.6Wh
7	Nominal Voltage	3.6V	Customizable
8	Voltage Before Shipment	≥3.9V
9	Inner Resistance	≤100mΩ
10	Charging Voltage	4.20±0.2V
11	Floating Charging Voltage	4.25±0.2V
12	Standard Charging Current	1.2A
13	Max Charging Current	3.0A
14	Standard Discharging Current	1.2A
15	Max Discharging Current	3.0A
16	Peak discharge current	8A/0.1s
17	Terminate Voltage	3.0V
18	Size	Length 68±1 mm	Customizable
		Wide 38±1 mm	Customizable
		Thickness 20±1 mm	Customizable
19	Weight	Around 130g±10g
20	Output Way	UL1007/24#，Wire 200mm	Customizable
21	Working Temperature	Charge：0～45℃
		Discharge：-20～60℃
		Recommended Working Temperature：15℃～35℃
22	Self-discharge Rate	The Residual Capacity： ≤3%/Month; ≤15%/Year
22	Self-discharge Rate	Recoverable Capacity ： ≤1.5%/Month; ≤8%/Year
23	Storage Environment	Less Than a Month：-20～+35℃、45～75%RH
		Less Than 3 Month：-10～+35℃、45～75%RH
		Recommended Storage Temperature：15～30℃、45～75%RH
24	Warranty	12 Months
25	Operation Standard	GB31241-2014
Long time storage: When the battery needs to be stored for a long time, it should be charged to nearly 50% of the battery with a voltage of about 3.9V and placed under the recommended storage conditions. Do a full charge and discharge cycle at least once every 6 months (charge first, discharge and then recharge 50%). Application Field: Oil well detection instrument lithium battery, industrial instrumentation, industrial control monitoring instruments, medical infusion pump lithium battery portable instrument power supply and other fields. Main Features: 1. Multiple protection functions: over charge, over discharge, over current, short circuit over temperature, etc.;
