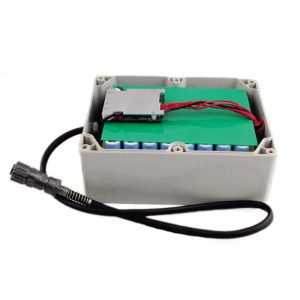

22V 26.8Ah 18650 Backup lithium battery pack for radar tester

2020-08-26 02:17

Specification

NoItemStandardRemark
1Model01KY1906-110
2Cell SpecificationICR18650/3350mAh/3.6V
3Battery pack18650-6S8P-26.8Ah-21.6V
4Rated Capacity26.8AhCustomizable
5Min Capacity25.46Ah
6Energy578.88Wh
7Nominal Voltage21.6V(Or 22V)Customizable
8Voltage Before Shipment≥22.8V
9Inner Resistance≤150mΩ
10Charging Voltage25.20±0.2V
11Floating Charging Voltage25.50±0.2V
12Standard Charging Current5.36A0.2C
13Max Charging Current13.40A0.5C
14Standard Discharging Current5.36ACustomizable
15Max Discharging Current13.0ACustomizable
16Peak discharge current35A/0.1s
17Terminate Voltage18V
18SizeLength   210.5±1 mmCustomizable
Wide   155±1 mmCustomizable
Thickness   88±1 mmCustomizable
19WeightAround 3.5kg±0.3kg
20Output Way2 Connector ZR-RVVP 300V,Wire Length 300mmCustomizable
21Working TemperatureCharge:0~45℃
Discharge:-20~60℃
Recommended Working Temperature:15℃~35℃
22Self-discharge RateThe Residual Capacity:   ≤3%/Month;    ≤15%/Year
Recoverable Capacity

: ≤1.5%/Month;   ≤8%/year

23Storage EnvironmentLess Than 1 Month:-20~+35℃、45~75%RH
Less Than 3 Months:-10~+35℃、45~75%RH
Recommended Storage Temperature:15~30℃、45~75%RH
24Warranty12 Month
25Operation StandardGB31241-2014
Long time storage:

When the battery needs to be stored for a long time, it should be charged to approximately 50% of the battery with a voltage of approximately 22.5V and placed under the recommended storage conditions. Do a full charge and discharge cycle at least once every 6 months (charge first, discharge and then recharge 50%).

Application Field:

Industrial supporting equipment, hand-held instrument equipment, ground penetrating radar tester backup power, etc.

Main Features:

1. Multiple protection functions: over charge, over discharge, over current, short circuit over temperature, etc.;

Note: All products do not support retail, please contact us for product prices!
