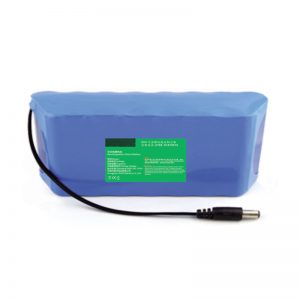

Lithium Battery Packs 18650 10.8V11000mAh

2020-08-24 09:12

Specification

NOItemStandardRemark
1ModelAIN1906-011
2Cell SpecificationICR18650/2200mAh/3.6V
3Battery pack18650-3S5P-11000mAh-10.8V
4Rated Capacity11000mAhCustomizable
5Min Capacity9900mAh
6Energy122.1Wh
7Nominal Voltage10.8VCustomizable
8Voltage Before Shipment≥11.4V
9Inner Resistance≤150mΩ
10Charging Voltage12.6±0.2V
11Floating Charging Voltage12.65±0.2V
12Standard Charging Current2200mA
13Max Charging Current5500mA
14Standard Discharging Current2200mACustomizable
15Max Discharging Current5500mACustomizable
16Peak discharge current20000mA/0.1s
17Terminate Voltage8.25V
18SizeLength  150±1 mmCustomizable
Wide   75±1 mmCustomizable
Thickness 40±1 mmCustomizable
19WeightAround 850g±0.5g
20Output Way5.5DC  Female socket UL2468/22#,Wire Length 150mmCustomizable
21Working TemperatureCharge:0~45℃
Discharge:-20~60℃
Recommended Working Temperature:15℃~35℃
22Self-discharge RateThe Residual Capacity:≤3%/Month;    ≤15%/Year
Recoverable Capacity

: ≤1.5%/Month;   ≤8%/Year

23Storage EnvironmentLess Than 1 Month:-20~+35℃、45~75%RH
Less Than 3 Months:-10~+35℃、45~75%RH
Recommended Storage Environment

:15~30℃、45~75%RH

24Warranty12 Months
25Operation StandardGB31241-2014
Long time storage:

When the battery needs to be stored for a long time, it should be charged to nearly 50% of the battery with a voltage of about 11.5V and placed under the recommended storage conditions. Do a full charge and discharge cycle at least once every 6 months (charge first, discharge and then recharge 50%).

Application Field:

Industrial supporting, laser and other fields

Main Features:

1. Multiple protection functions: over charge, over discharge, over current, short circuit over temperature, etc.;

Payment and Shipment:

1) We accept Paypal,T/T,Western Union or L/C .

2) Full order timeline about 7-10 working days after payment or deposit conform.

3) Shipping: DHL,Fedex TNT(only to certain area).

4) Tracking Number will be provided

After-sale services:

1) One year warranty

2) Rapid replacement of defective until you are satisfied

3) Reply you within 24hours

4) Any non-intentional damage will be repaired free of charge

Why choose lithium ion battery?

Lithium ion is the battery technology of today.

Do you want to be the fasted or best performing?

Do you want to save energy or burn less fuel?

Do you want your investment to last longest?

Do you want to be’out there’ longest without getting anxious about your energy?

Then lithium ion is your choice of batteries.

A few of its outstanding featuers

Space and weight savings up to 70%

Longer lifespan of traditional batteries

Extremely fast charging and discharging.

High efficiency,not wasting energy.

Safe operation.

FAQ

Q: Are you trading company or manufacturer?
A: We are an original factory.

Q: Can I have samples to test? And what is lead time for sample order?
A: Yes,we can supply samples,the leadtime for samples is 3-5 days.and buyer pay for sample cost and shipping cost.

Q: Do you provide after-sales serive?
A: Yes,the warranty is 12 months, if any quality problems on our side in this period, we can send new oe as replacement.

Q: Do you accept OEM/ODM?
A: Yes,it is avaliable.

Q:Are you battery real capacity?
A: All of our battery cells with Grade A,100% new and real capacity.

Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order quantity is big.

Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better price, we will check the best price for you.

Q: What is your term of payment?
A: We adopt T/T,Paypal and so on.

Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!
