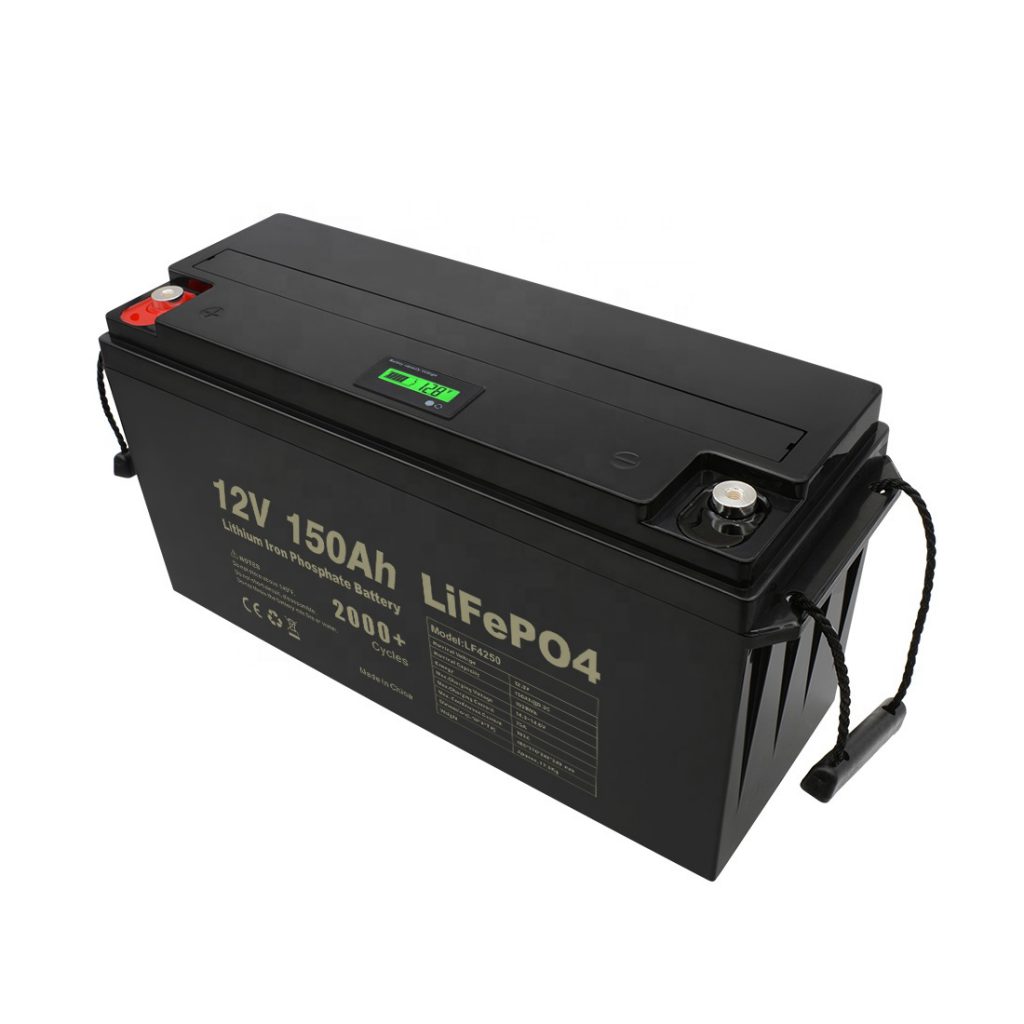

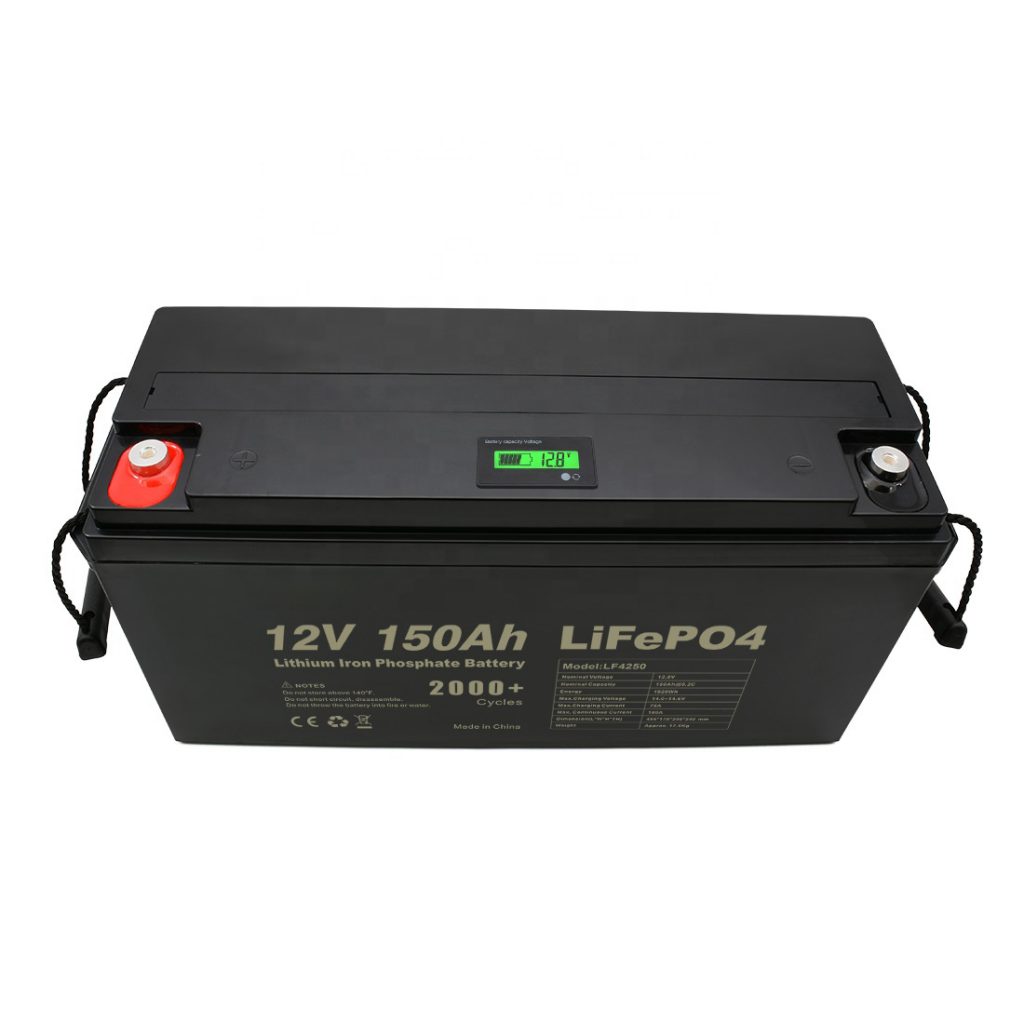

Deep Cycle Rechargeable Lifepo4 Battery 12v 150Ah 200Ah 250Ah 300Ah

2021-01-20 03:55

Product Description
Electrical
Characteristics
Nominal Voltage
12.8V
Nominal Capacity
Energy
1920Wh
Internal Resistance
≤40mΩ
Cycle Life
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
Self Discharge
≤3.5% per month at 25℃

Standard Charging

Max.Charging Voltage
14.0~14.6V

Charging Mode

At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and
then,changed continuously with constant voltage of 14.6V until the current was not
more than 0.02C
Charging Current
75A
Max.Charging Current
100A

Standard Discharging

Discharging Current
75A
Max. Continuous Current
100A
Max.Pulse Current
200A(<3S)
Discharging Cut-off Voltage
10.0

Operating Condition

Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance
IP55

Structure

Cell & Format
IFR32700 N60,4S25P
Casing
Plastic
Dimension(L*W*H*TH)
485*170*240*240
Weight
Approx. 17.5Kg
Terminal
M8

Feature

◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.
◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.
◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Can be charged using most standard lead-acid charges (set).
◆ Wider temperature range:-20℃~60℃.
◆ Support for Series application expansion (up to 51.2V) and two in parallel.

Chart
Application
◆ UPS ◆ Solar &Wind Power System ◆ Golf Cart ◆ Electric Vehicle , E-bike, E-rickshaw etc. ◆ Lighting
Our Factory
Packing And Shipping
FAQ

Q1: Are you trading company or manufacturer ?
A: We are manufacturer.
Q2: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q3: What is the key technical advantage of your products?
A: We adopt the digital control technology, which is convenient for remote upgrade and full automatic production.
Q4: What is your Engineering Testing and Validation capabilities?
A:We will response you within 2 hours and solve the problem within 24 hours.
Q5: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!
