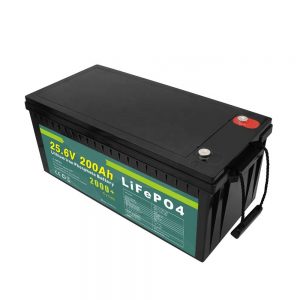

Wholesale CE Rohs 12 Months Warranty lifepo4 lithium 24v 200ah lifepo4 solar battery

2020-10-10 01:22

Product Details

SpecificationItemValue






Electrical Characteristics

Nominal Voltage25.6V
Nominal Capacity[email protected]
Energy5120Wh
Internal Resistance≤35mΩ
Cycle Life2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
Self Discharge≤3.5% per month at 25℃








Standard Charging

Max.Charging Voltage28.0~29.2V
Charging ModeAt 0℃~45℃ temperature, charged to 29.2V at a constant current of 0.2C5A, and then,changed continuously with constant voltage of 29.2V until the current was not more than 0.02C(A).
Charging Current20A
Max.Charging Current35A






Standard Discharging

Discharging Current20A
Max. Continuous Current35A
Max.Pulse Current70A(<3S)
Discharging Cut-off Voltage20.0








Operating Condition

Charge Temperature0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust ResistanceIP55






Structure

Cell & FormatGSP4017320,8S1P
CasingPlastic
Dimension(L*W*H*TH)522*238*217*217
WeightApprox. 31Kg
TerminalM8
Chart

Features

◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.
◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.
◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
◆ Can be charged using most standard lead-acid charges (set).
◆ Wider temperature range:-20℃~60℃.
◆ Support for Series application expansion (up to 51.2V) and two in parallel.
Application
Our Factory
Shipping And Packing
FAQ
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Sample needs 3 days, mass production time needs 2-7 weeks, it depends on order quantity.
Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 3-7 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed with an order?
A. Firstly let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places a deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.
Q8.How about warranty?
A:2 year warranty.
Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!
