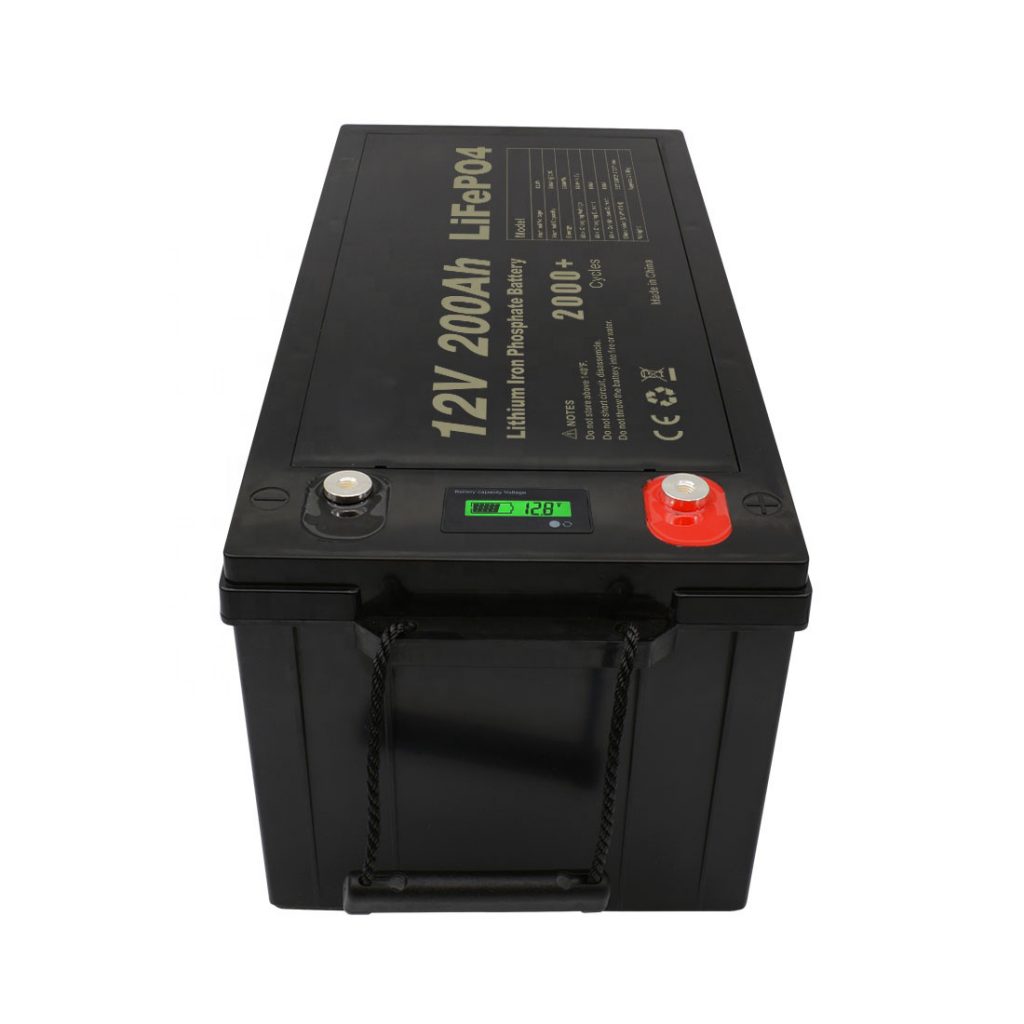

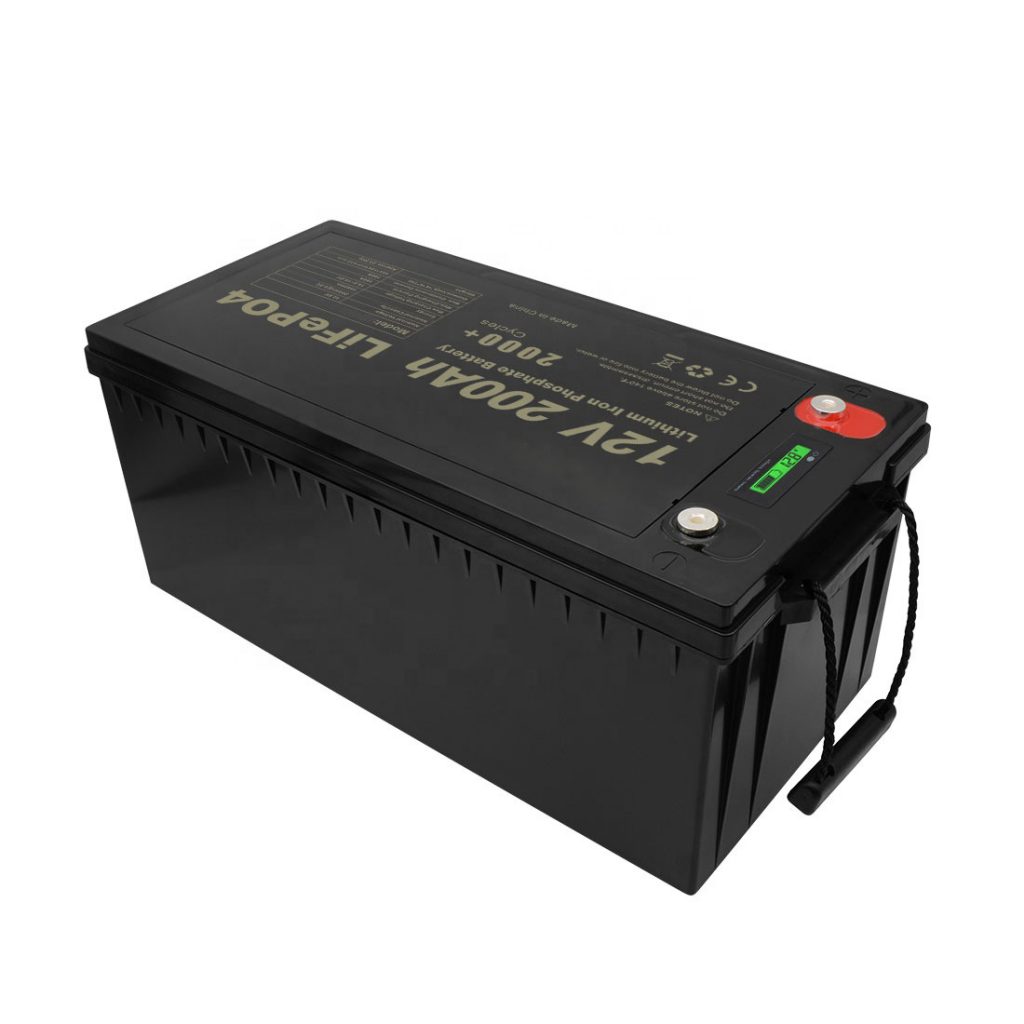

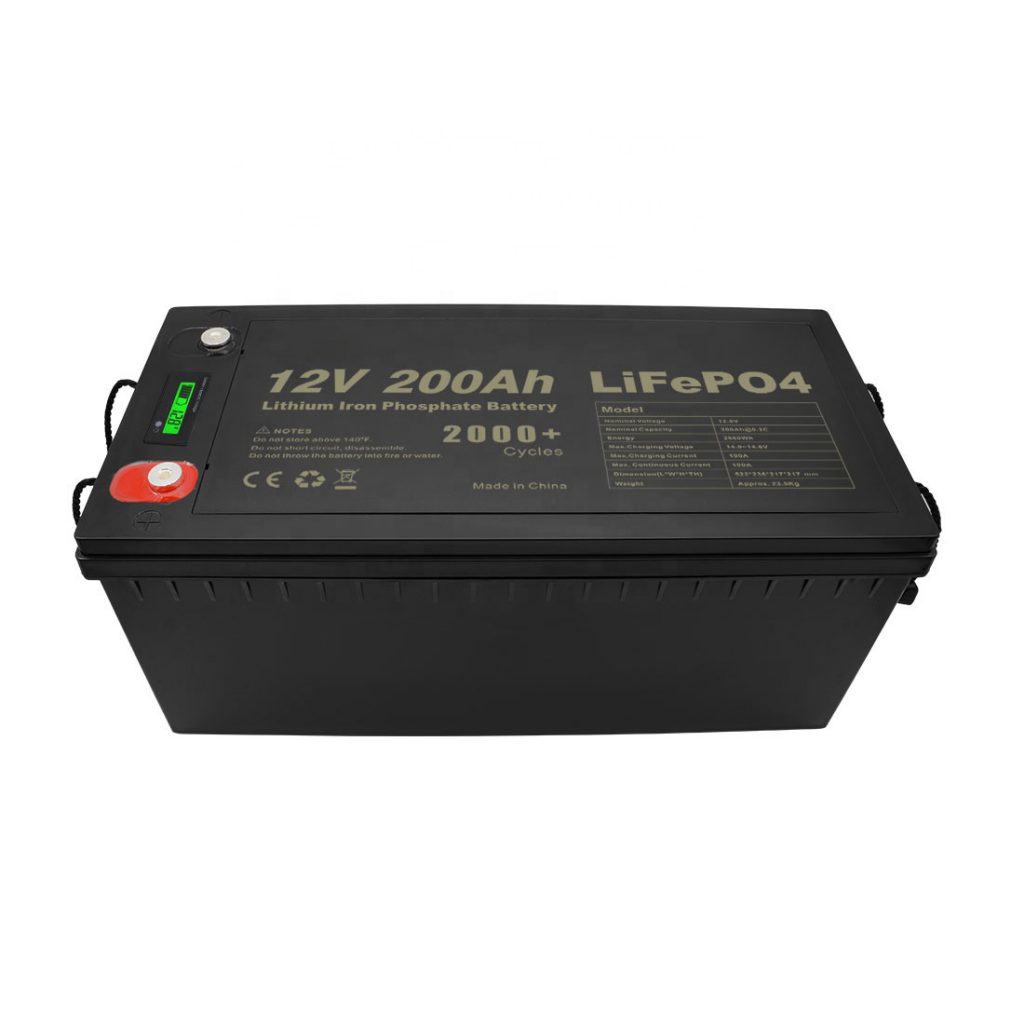

New Design 3.2V 12V 48V Lithium Batteries Maintenance Free Industrial 12V LiFePO4 200ah Battery

2020-10-09 12:14

Product Details

SpecificationItemValue






Electrical
Characteristics

Nominal Voltage12.8V
Nominal Capacity[email protected]
Energy2560Wh
Internal Resistance≤35mΩ
Cycle Life2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
Self Discharge≤3.5% per month at 25℃








Standard Charging

Max.Charging Voltage14.0~14.6V
Charging ModeAt 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and
then,changed continuously with constant voltage of 14.6V until the current was not
more than 0.02C
Charging Current100A
Max.Charging Current100A
Standard DischargingDischarging Current100A
Max. Continuous Current100A
Max.Pulse Current200A(<3S)
Discharging Cut-off Voltage10.0
Operating ConditionCharge Temperature0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust ResistanceIP55
StructureCell & FormatIFR32700 N60,4S33P
CasingPlastic
Dimension(L*W*H*TH)522*238*217*217
WeightApprox. 23.5Kg
TerminalM8
Chart
Feature
◆ Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions.
◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature. ◆ Free of maintenance .
◆ Internal cell balancing.
◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery. ◆ Can be charged using most standard lead-acid charges (set). ◆ Wider temperature range:-20℃~60℃. ◆ Support for Series application expansion (up to 51.2V) and two in parallel.
Application
Our Factory
Packing And Shipping

FAQ
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.
Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order?
A. Firstly let us know your requirements or application.

Secondly, We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places a deposit for formal order.

Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q8.How about warranty?
A:1 year warranty
