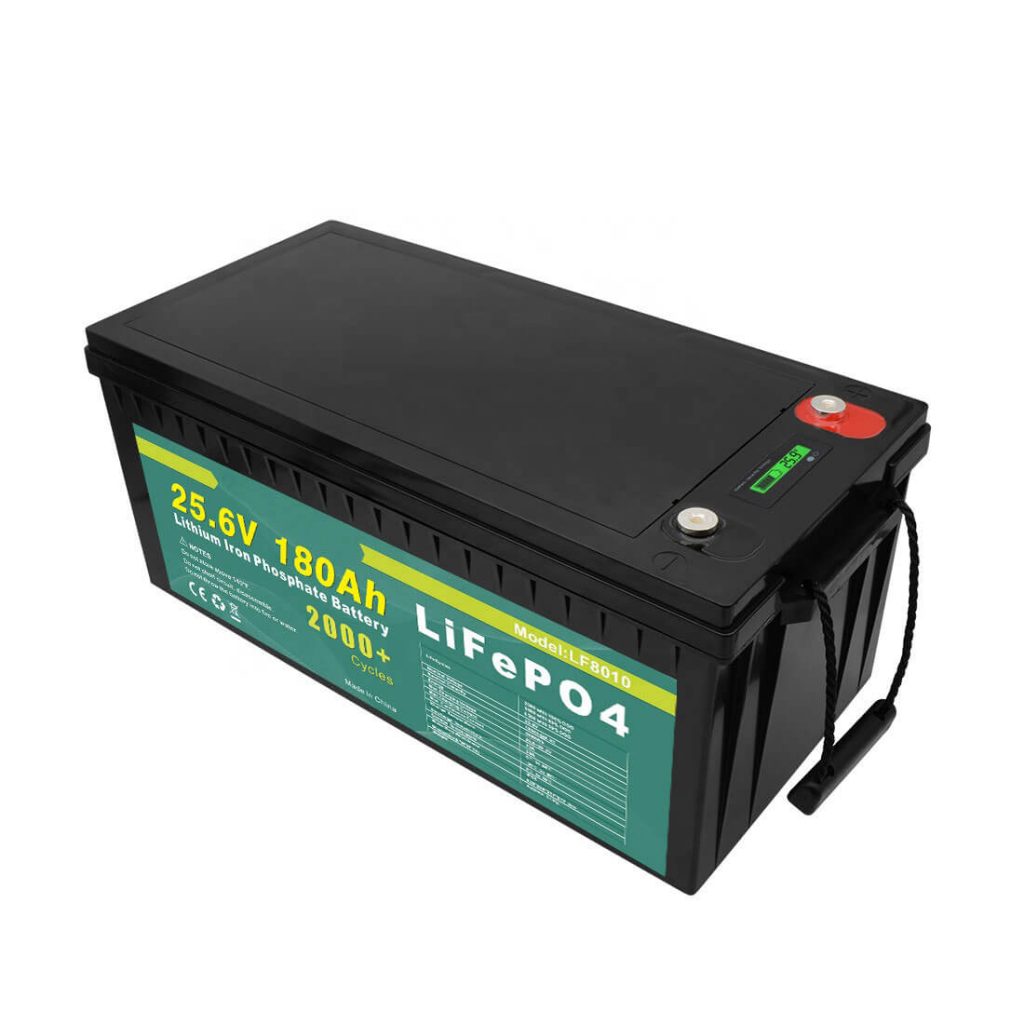

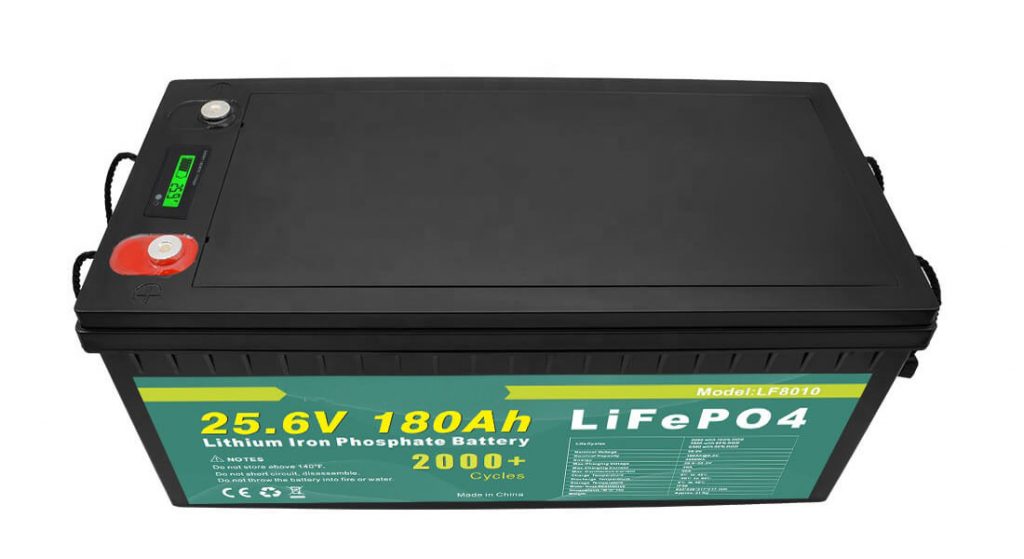

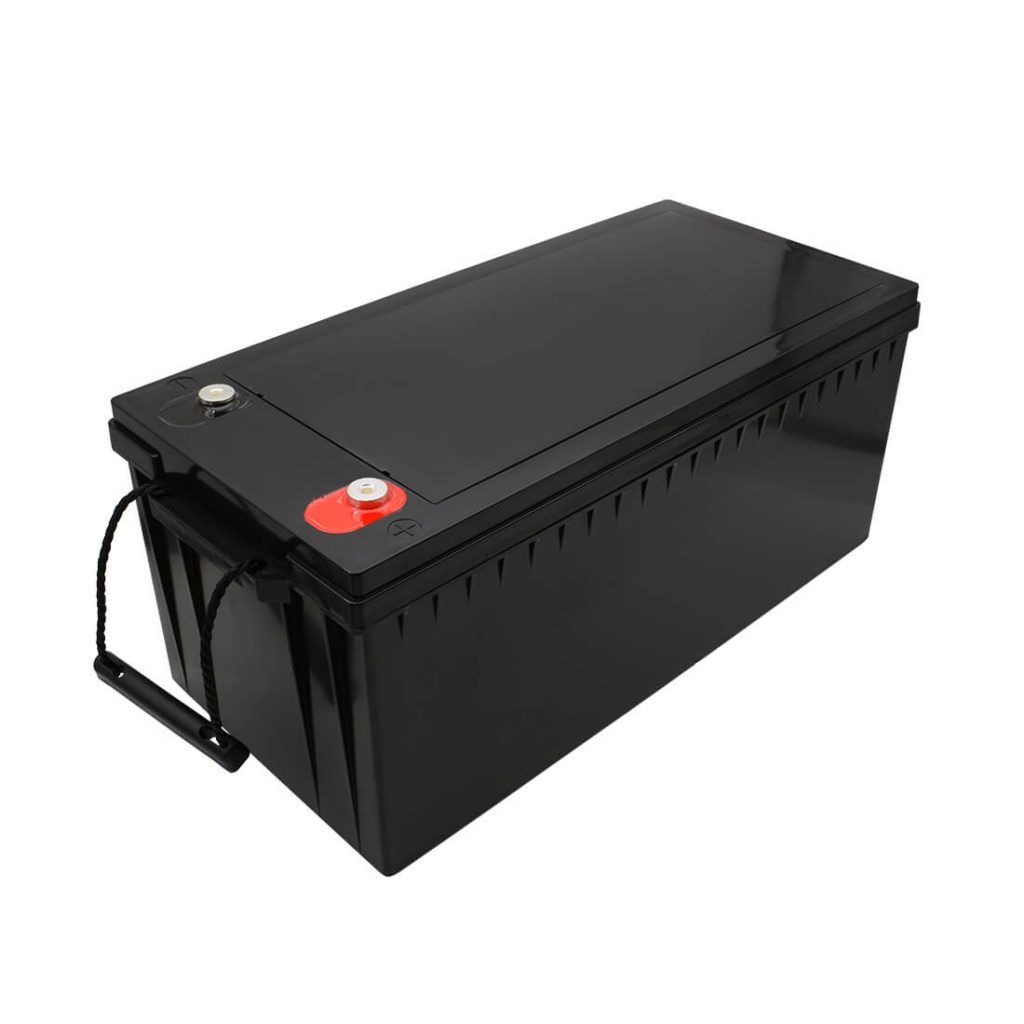

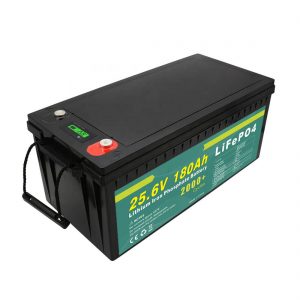

Rechargeable 24v180ah(LiFePO4) Battery Pack For Solar Street Light

2021-01-21 07:56

Product Description
Electrical
Characteristics
Nominal Voltage
25.6V
Nominal Capacity
Energy
4608Wh
Internal Resistance
≤35mΩ
Cycle Life
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
Self Discharge
≤3.5% per month at 25℃
Standard Charging
Max.Charging Voltage
28.0~29.2V
Charging Mode
At 0℃~45℃ temperature, charged to 29.2V at a constant current of 0.2C5A, and
then,changed continuously with constant voltage of 29.2V until the current was not
more than 0.02C(A).
Charging Current
20A
Max.Charging Current
35A
Standard Discharging
Discharging Current
20A
Max. Continuous Current
35A
Max.Pulse Current
70A(<3S)
Discharging Cut-off Voltage
20.0
Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance
IP55
Structure
Cell & Format
GSP4017320,8S1P
Casing
Plastic
Dimension(L*W*H*TH)
522*238*217*217
Weight
Approx. 31Kg
Terminal
M8

Advantages

1. Long cycle life for more than 2000 times
2. High specific energy
3. Good performance at high temperature
4. Low impedance
5. Lower self-discharge
6. Suit for big current discharge
7. High reliable and safety characteristics
8. Strong charging acceptance and quick-charging capability
9. Environmental Friendly
10. Large capacity and good shock resistance

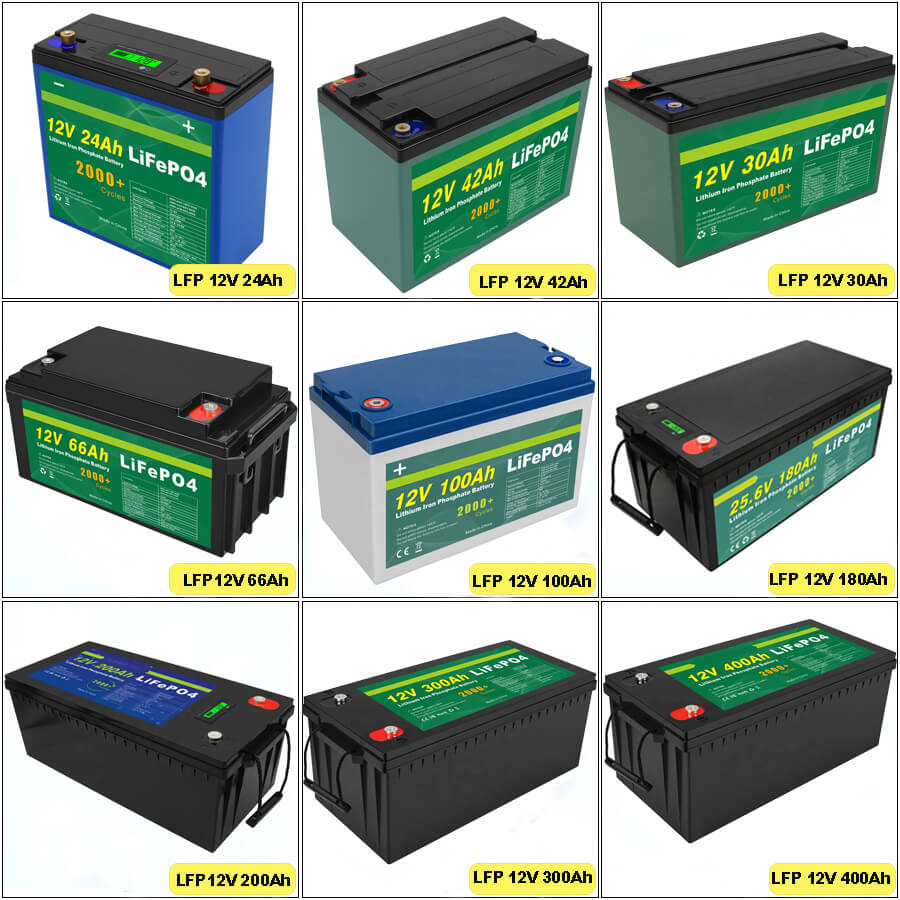

Related LiFePO4 Batteries

Main applications
*  Communication: back-up electric supply, interphone
Eletrical vehicles: electric bicycle (E-bike), golf cart , electric wheelchair, E-car and E-bus
Power tools: electric cropper, electric drill, electric saw, electric hammer
*  Illuminate devices: solar battery, miner lamp, solar power lamp, emergency light, electric torch.
* Portable office devices: Laptop, PDA, portable electrograph, portable printer
Video devices: Portable DVD , portable television
Others: R/C model, toy, small home appliance



1. High quality: Restrict quality control in every step before shipping you.
2. Best Service: We try our best to support customers as friends.
3. OEM Welcomed: PLS don’t hesitate to tell us your ideas.
4. Low MOQ: We hope can reach your every business demands.
5. Prompt & Favorable Delivery: We will share the best price advantage from our forwarder with you.
6. Customer centric Aim& Warranty: Your satisfaction is our honor; we will be back you ASAP.

Our Factory



Packing And Shipping

1.Packaging:
a. In generral, international standard packaging
b. As customers required
2. Shipping:
a. Sample order: 3-10 days by plane;
b. Bulk order: 15-30 days by sea
3. Payment:
a.We accept T/T , Western Union, Paypal, L/C and so on.
b. If you prefer other payment terms,please contact us.

FAQ

Q1: Is it the capacity of your battery real?
Re: All of our batteries are real full capacity with top quantity, competitive price& long lifecycle.

Q2: What is your payment term?
Re: We accept T/T, Western Union, PayPal, L/C.

Q3: How about the lead time?
Re: 3-7 working days for the samples and mass production depend on your order quantity;
We will share the best advantage from our forwarder with you.

Q4: Do you accept OEM?
Re: We support the OEM service: Pls don’t hesitate to tell us your ideas.

Q5: Which certificates do you have?
Re: We have CE/FCC/ROHS/UN38.3/MSDS

Q6: How about your warranty?
Re: Depends on the battery type(6 months-1 year)

Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!
