A Grade LiFePO4 Battery 48V 200Ah With Deep Cycle Life

2023-04-13 07:54

Specification

Electrical Characteristics	Nominal Voltage	51.2V
	Nominal Capacity	[email protected]
	Energy	10240Wh
	Internal Resistance	≤35mΩ
	Cycle Life	4000-6000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
	Self Discharge	≤3.5% per month at 25℃
Standard Charging	Max.Charging Voltage	58.4±0.2
	Charging Mode	At 0℃~45℃ temperature, charged to 58.4V at a constant current of 0.2C, and then,changed continuously with constant voltage of 58.4V until the current was not more than 0.02C
	Charging Current	200A
	Max.Charging Current	200A
Standard Discharging	Discharging Current	200A
	Max. Continuous Current	200A
	Max.Pulse Current	210A(10S) Can be set up
	Discharging Cut-off Voltage	40.0
Operating Condition	Charge Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
	Discharge Temperature	-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
	Storage Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
	Water Dust Resistance	IP54
Structure	Cell & Format	(16S1P)
	Casing	Metal

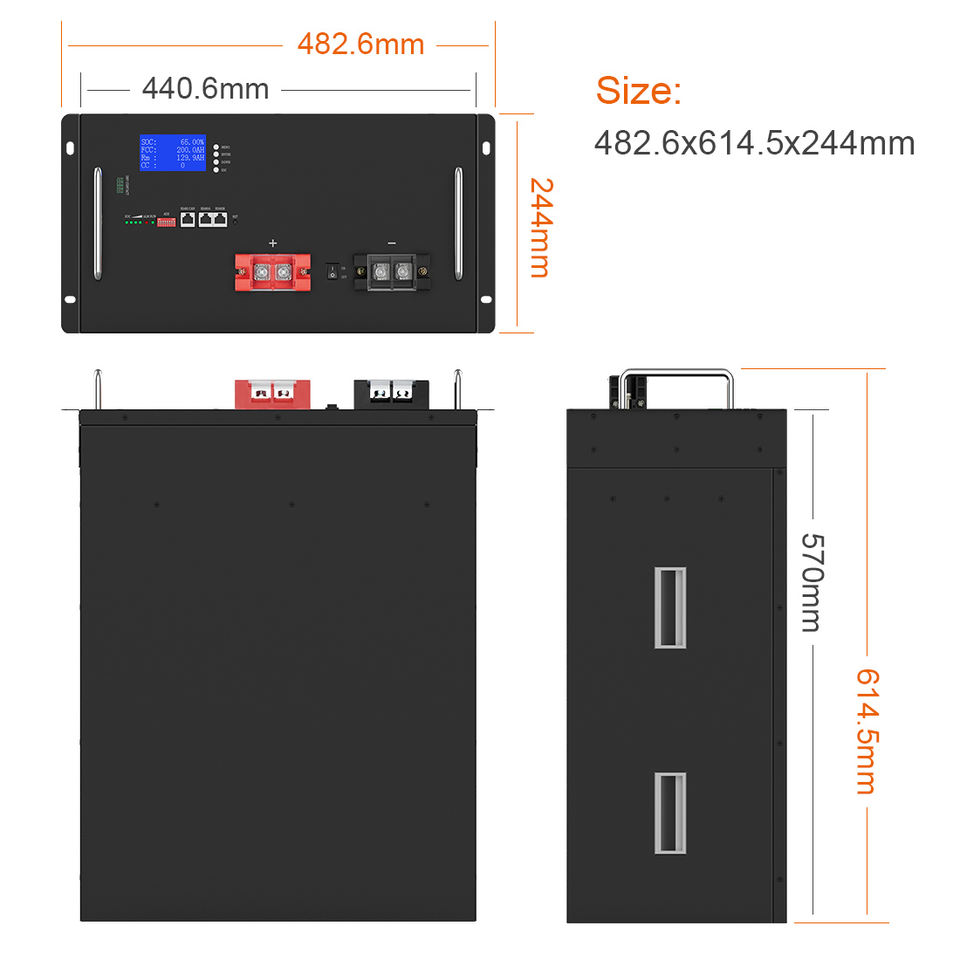

	Max.Dimension (L*W*H)	82.6*614.5*244mm（5.5U）
	Weight	Approx.78Kg
	Communication Interface	CAN or RS485
	Display	LCD

Applications:

1.Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
2.Back-up System and UPS
--Telecomm Base / CATV system / Computer Server Center / Medical Instruments / Military Equipment
3.Other Applications
--Security and Electronics / Mobile POS, Mining Light / Torch / LED Light / Emergency Light
--RV Motor home /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard / Electric bike / Electric Scooter / Electric

Our Factory



FAQ

Q1:Can I have samples to test? And what is lead time for sample order?
A1:Yes,we can supply samples,the leadtime for samples is 7-10 days.and buyer pay for sample cost and shipping cost.

Q2: Do you provide after-sales serive?
A2: Yes,the warranty is 3 years, if any quality problems on our side in this period, we can send new one as replacement.

Q3 What is your company's advantage?
A3: We only supply high level quality of lithium battery and we gurantee on-time shipment,we also provide excellent after sales service

Q4: Do you accept OEM/ODM?
A4: Yes,it is avaliable.

Q5: What is your lead time for the mass production?
A5: General speaking, about 30 days depending on different items after getting down payment and confirmation about the samples.

Q6:Are you battery real capacity?
A6:All of our battery cells with Grade A,100% new and real capacity.

Q7:Are you a factory or a trading company?
A7:we are a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.

Q8: What kind of certificates do you have?
A8: We can provide CE, ROHS, FCC, IEC62133, MSDS, UN38.3 if your order quantity is big.
