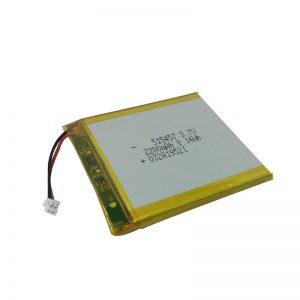

3.7V 2200mAh Polymer lithium batteries for smart home devices

2020-08-27 02:44



NoItemStandardRemark
1ModelAIN515457
2Cell SpecificationAIN515457/2200mAh/3.7V
3Battery packAIN515457/1S1P/2200mAh/3.7V
4Rated Capacity2200mAhCustomizable
5Min Capacity2090mAh
6Energy8.14Wh
7Nominal Voltage3.7VCustomizable
8Voltage Before Shipment≥3.9V
9Inner Resistance≤150mΩ
10Charging Voltage4.20±0.2V
11Floating Charging Voltage4.25±0.2V
12Standard Charging Current440mA
13Max Charging Current1100mA
14Standard Discharging Current440mA
15Max Discharging Current2200mA
16Peak discharge current4000mA/0.1s
17Terminate Voltage3.0V
18SizeLength   60±0.5 mmCustomizable
Wide   54.5±0.5 mmCustomizable
Thickness   5.3±0.5 mmCustomizable
19WeightAround  40g±10g
20Output WayCustomizable
21Working TemperatureCharge:0~45℃
Discharge:-20~60℃
Recommended Working Temperature:15℃~35℃
22Self-discharge RateThe Residual Capacity:   ≤3%/Month;    ≤15%/Year
Recoverable Capacity

: ≤1.5%/Month;   ≤8%/Year

23Storage EnvironmentLess Than a Month:-20~+35℃、45~75%RH
Less Than 3 Months:-10~+35℃、45~75%RH
Recommended Storage Temperature:15~30℃、45~75%RH
24Warranty12 Months
25Operation StandardGB31241-2014
Long time storage:

When the battery needs to be stored for a long time, it should be charged to nearly 50% of the battery with a voltage of about 3.9V and placed under the recommended storage conditions. Do a full charge and discharge cycle at least once every 6 months (charge first, discharge and then recharge 50%).

Application Field:

Artificial vision, intelligent robot, human brain recognition instrument, handheld device, handheld tester, badge intelligent instrument, remote control, smart home instrument, dashcam, financial POS machine, medical device, intelligent door lock and other fields.

Main Features:

1. Multiple protection functions: over charge, over discharge, over current, short circuit over temperature, etc.;

2. Polymer battery pack is safe and has good low temperature performance;

3. High cycle life of polymer battery pack, in line with the values of low carbon, energy saving and environmental protection;

Application

Related Lipo batteries

ModelCapacityNormal VoltageDimension Max(mm)
mAhVThicknessWidthLength
AIN60345010003.76.034.350.0
AIN70348410003.77.030.548.5
AIN90304010003.79.030.540.8
AIN90274511003.79.027.046.0
AIN80226011503.78.022.560.0
AIN50375912003.75.1037.559.5
AIN70344812003.76.9534.348.5
AIN85304812003.78.5030.348.5
AIN70345013003.77.034.550.5
AIN70394313003.77.039.543.0
AIN94304513503.79.4030.546.0
AIN59356214003.75.9035.362.8
AIN65356014003.76.5035.560.5
AIN45426115003.74.6042.560.8
AIN47368615503.74.5036.586.5
AIN50465415003.75.2046.554.5
AIN70405016003.77.1040.350.3
AIN88365016503.78.7036.350.0
AIN52456117003.75.2045.261.8
AIN70386018003.77.038.560.5
AIN10325419003.710.032.054.0
AIN55546220003.75.5054.062.5
AIN80346520003.78.1534.565.5
AIN45508521003.74.7050.585.5
AIN95375922003.79.7037.559.5
AIN92346023003.79.2034.060.0
AIN60506824003.76.0050.568.5
AIN54616225003.75.4561.062.0
AIN60508530003.76.6050.585.5
AIN85508540003.78.5050.385.0

This is part of our products. In addition, we can customize the size and capacity of polymer batteries. Welcome to contact us for more information
