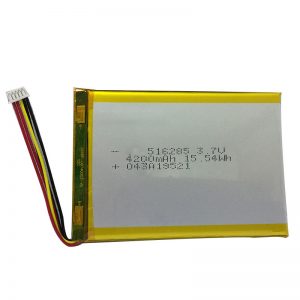

516285 3.7V 4200mAh Smart home instrument polymer lithium battery

2020-08-27 03:11

NoItemStandardRemark
1ModelAIN516285
2Cell Specification516285/4200mAh/3.7V
3Battery pack516285/1S1P/4200mAh/3.7V
4Rated Capacity4200mAh
5Min Capacity3990mAh
6Energy15.54Wh
7Nominal Voltage3.7VCustomizable
8Voltage Before Shipment≥3.9V
9Inner Resistance≤150mΩ
10Charging Voltage4.20±0.2V
11Floating Charging Voltage4.25±0.2V
12Standard Charging Current840mA
13Max Charging Current2100mA
14Standard Discharging Current840mA
15Max Discharging Current4200mA
16Peak discharge current8000mA/0.1s
17Terminate Voltage3.0V
18SizeLength   88±0.5 mmCustomizable
Wide   63±0.5 mmCustomizable
Thickness   5.2±0.5 mmCustomizable
19WeightAround  65g±10g
20Output WayCustomizable
21Working TemperatureCharge:0~45℃
Discharge:-20~60℃
Recommended Working Temperature:15℃~35℃
22Self-discharge RateThe Residual Capacity:   ≤3%/Month;    ≤15%/Year
Recoverable Capacity

: ≤1.5%/Month;   ≤8%/Year

23Storage EnvironmentLess Than a Month:-20~+35℃、45~75%RH
Less Than 3 Months:-10~+35℃、45~75%RH
Recommended Storage Temperature:15~30℃、45~75%RH
24Warranty12 Months
25Operation StandardGB31241-2014

Long time storage:

When the battery needs to be stored for a long time, it should be charged to nearly 50% of the battery with a voltage of about 3.9V and placed under the recommended storage conditions. Do a full charge and discharge cycle at least once every 6 months (charge first, discharge and then recharge 50%).

Application Field:

Artificial vision, intelligent robot, human brain recognition instrument, handheld device, handheld tester, badge intelligent instrument, remote control, smart home instrument, dashcam, financial POS machine, medical device, intelligent door lock and other fields.

Main Features:

1. Multiple protection functions: over charge, over discharge, over current, short circuit over temperature, etc.;

2. Polymer battery pack is safe and has good low temperature performance;

3. High cycle life of polymer battery pack, in line with the values of low carbon, energy saving and environmental protection;

Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!
