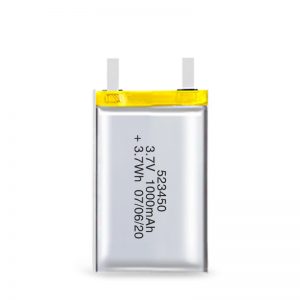

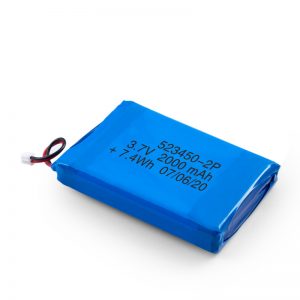

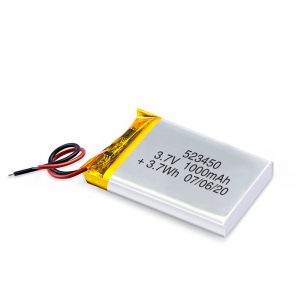

LiPO Rechargeable Battery 523450 3.7V 1000mAH/ 7.4V 1000mAH/3.7V 2000mAH

2020-08-10 10:35

3.1    CapacityTypical1000mAhDischarge:0.2CmA

cut off Voltage:3V for cell

3.2    Nominal VoltageAverage  7.4VDischarge:0.2CmA

cut off Voltage:3V for cell

3.3    AC Impedance Resistance≤240mΩ
3.4    Discharge Cut-off Voltage6.0V
3.5    Charge Current200mAStandard Charge
3.6    Charge Voltage8.4V
3.7    Max. Charge Voltage8.46V
3.8    Charge TimeApprox 6.0hCharge: 0.2CmA

3.9    Max. Charge Current

3.10   Continuous discharge Current2000mA2.0CmA
3.11   Pulse. discharge current4000mA4.0CmA (PULSE≤1min)
3.11   WeightApprox 42.5g
3.12  Operating


3.13  Storage


less than 1 month-10~35℃Recommended storage

temperature: 20℃,at the

shipment state

less than 3 month



1,Q: What's the main product in ALL IN ONE?

A: Rechargeable battery. nimh battery and Li-ion, Lipo battery and power battery pack.

2,Q: What is overcharge?

A: After charge, tested the batteries' initial state and capacity. Charge to 10.0V at 3C current, then charge to 0.01C at CV mode. Observe changes in battery appearance.

3,Q: What is over discharge?

A: After charge, test the batteries' initial state. When the batteries are normal, discharge to 0V at 0.5C. Observe changes in battery appearance

4. Q: Can I have a sample order?

A: Yes, we accept sample order to test and check quality. Batteries can be made as require.

5. Q: Do you have MOQ limit?

  A: Yes, we have MOQ limit for mass production, but it depends on battery model. Please contact us for details.

6. Q: How about the lead time?

A: Samples will takes 5-7 business days. Mass production will takes 25-30 days. It depends on quantity.

7. Q: How about shipping and delivery time?

A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP service, delivery time is 11-15 business days. Airline and sea shipping also available.

8. Q: What about after-sale service?

A: We will offer you 1 year guarantee. If there are any problems, please inform us, we will offer you positive solutions.

Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!
