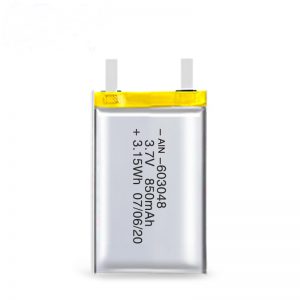

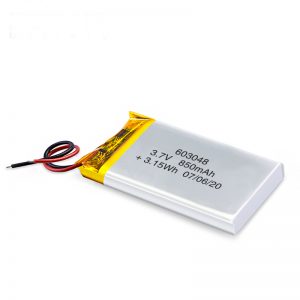

LiPO Rechargeable Battery 603048 3.7V 850mAh/ 3.7V 1700mAH/7.4V 850mAH

2020-08-10 10:47



ItemRatingNote
3.1    CapacityTypical880mAhDischarge:0.2CmA

cut off Voltage:3.0V for cell

Minimum850mAh
3.2    Nominal VoltageAverage  3.7VDischarge:0.2CmA

cut off Voltage:3.0V for cell

3.3    AC Impedance Resistance≤180mΩ
3.4    Discharge Cut-off Voltage3.00V
3.5    Charge Current190mAStandard Charge
3.6    Charge Voltage4.2V
3.7    Max. Charge Voltage4.23V
3.8    Charge TimeApprox 2.5hCharge: 1.0CmA
3.9    Max. Charge Current900mA1.0CmA
3.10   Max. Discharge Current900mA
3.11   WeightApprox 16.1g
3.12  Operating

Temperature

Charge0~+45°C
Discharge-20~+60°C
3.13  Storage

Temperature

less than 1 month-20~+45°CRecommended storage

temperature: 20°C,at the

shipment state

less than 3 months-20~+35°C
Other size lipo battery at stock now.
Model Dimension  With PCM DimensionCapacity
3020253.0*20*25mm3.2*21*27.5mm3.7V 100mAh
302530 3.0*25*30mm3.2*26*32.5mm3.7V 180mAh
401824 4.0*18*24mm4.2*19*26.5mm3.7V 180mAh
402525 4.0*25*25mm4.2*26*27.5mm3.7V 200mAh
483450 4.8*34*50mm5.0*35*52.5mm3.7V 850mAh
502030 5.0*20*30mm5.2*21*32.5mm3.7V 240mAh
502525 5.0*25*25mm5.2*26*27.5mm3.7V 180mAh
503030 5.0*30*30mm5.2*31*32.5mm3.7V 430mAh
523450 5.2*34*50mm5.4*35*52.5mm 3.7V 1000mAh
553444 5.5*34*44mm5.7*35*46.5mm3.7V 850mAh
553640 5.5*36*40mm5.7*37*42.5mm3.7V 850mAh
553759 5.5*37*59mm5.7*38*61.5mm3.7V 1400mAh
602030 6.0*20*30mm6.2*21*32.5mm3.7V 300mAh
602240 6.0*22*40mm6.2*23*42.5mm3.7V 500mAh
602535 6.0*25*35mm6.2*26*37.5mm3.7V 500mAh
602663 6.0*26*63mm6.2*27*65.5mm3.7V 1000mAh
603030 6.0*30*30mm6.2*31*32.5mm3.7V 520mAh
603040 6.0*30*40mm6.2*31*42.5mm3.7V 750mAh
603048 6.0*30*48mm6.2*31*50.5mm3.7V 900mAh
603450 6.0*34*50mm6.2*35*52.5mm3.7v 1050mAh
702040 7.0*21*40mm7.2*22*42.5mm3.7V 500mAh
753048 7.5*30*48mm7.7*31*50.5mm 3.7V 1200mAh
803035 8.0*30*35mm8.2*31*37.5mm3.7V 800mAh

Advantages

1. High energy density: volume energy density can be 460Wh/L
2. Excellent security: no fire, no explore of short-circuit, over-charge, over-discharge, over-current, Shock, vibration, crush, acupuncture.
3. Long cycle lifespan: capacity recovery can be above 80% after 500 cycles
4. High discharge voltage plateau: the 3.6V discharge voltage plateau is more than 42min
5.Environment-friendly: no PB, CD added
6.Flexible size design subject to different space of application
7. Hundreds of moulds for micro size with 10mAh-1000mAh
8. CE/RoHS Directive-compliant/REACH/UL/MSDS/UN38.3/IEC61233 standards.

Application

Communications equipment: mobile phones, PHS phones, Bluetooth cell phones, walkie-talkie
Information equipment: laptop computers, PDA, portable fax machines, printers
Audio-visual equipment: digital cameras, camcorders, portable DVD, VCD players
Others: electric bicycles, miner's lamp
We have more than 400 models Lithium-polymer rechargeable battery for MP3, MP4 players, Bluetooth, GPS, digital phone, PDA, should you have any interest, your inquiry will be highly appreciated

Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!
