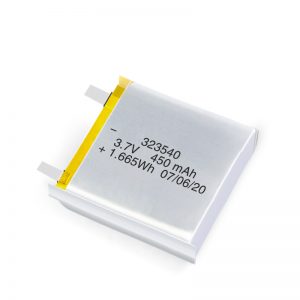

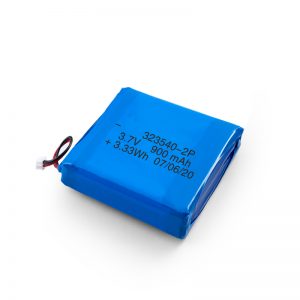

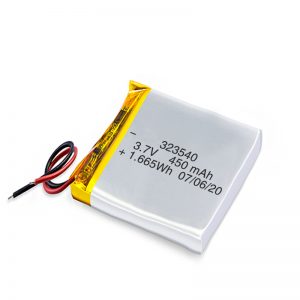

LiPO Rechargeable Battery 323540 3.7V 900mAH/ 7.4V 450mAH

2020-08-10 09:28

Lithium polymer battery 450mah 3.7v rechargeable lithium-ion battery/ li-ion battery 323540 with PCB

Lipo battery Specification:

ModelAIN323540-450
Battery TypeLithium polymer battery
Power Wh:1.665Wh
Accembly Composed Type
Nominal Capacity450 mAh@0.2C discharge
Nominal Voltage3.7 V
Charge Voltage4.2±0.12 V
Cut-off Voltage3.0 V
Standard charge Current225A@0.5C charge
Max. charge current450 mA@1C charge
Standard Discharge Current90mA@0.2C discharge
Max. Discharge Current450mA@1C discharge
Cycle Life:Over 500 times
Weight (Approx.)8g
Dimensions(T.W.L.)3.2*35*40(mm)
Charge Temperature0 ~ 45℃
Discharge Temperature-10 ~ 60℃
Storage Temperature0~40℃Less than one month
0~30℃More than one month

Battery OEM Service:

-Selected color of shrinkable tube.
-Selected Discharge plug and Balance connector
-High quality OEM label are welcomed

Advantages:
1, High energy density
2, Factory price& High quality
4, Pollution-free
6, Good consistency, low self discharge
2, High working voltage for single battery cells
5, Safe and reliable, With short-circuit protection function,

Battery Warranty:
The period of warranty is one year from the date of shipment.
We guarantee to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.

Our services:

1.Your enquiry will be replied in 8 working hours.
3.Professional engineers & Exclusive and unique battery solution
5.Good sales: From begining to end,any quality problem with our products,new free one will be replaced.
4.Good quality assurance:All the cells are A grade cells,100% quality check and full one year warranty.

Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!
