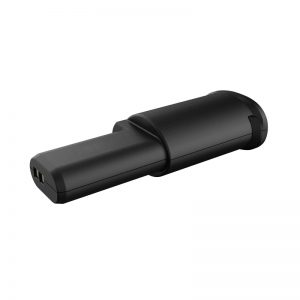

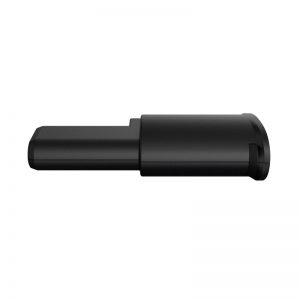

18650 7.2V 7.8Ah Lithium Ion Battery for Industrial Testing Equipment

2020-08-25 08:29

18650 7.2V 7.8Ah Lithium Ion Battery for Industrial Testing Equipment

• Model number:AIN7/2-7800
• Nominal voltage:7.2V
• Nominal capacity:7800mAh
• Battery cell: INR18650-26JM/3.6V/2.6Ah
• Dimension: special-shaped（mm）
• Application: industrial testing equipment

Product Detail

Cell model：INR18650-26JM/3.6V/2.6Ah

Battery specification: 18650/2S3P/7.2V/7.8Ah

Nominal voltage：7.2V

Nominal capacity：7.8Ah

Charging voltage: 8.4V

Charging current: ≤2A

Discharging current: 2A

Instant discharging current: 4A,3~4S

End-off voltage: 5.6V

Internal resistance: ≤180mΩ

Battery weight: 300g

Product dimension: special-shaped（mm）

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20℃～+23℃（≤12 months）

Battery case: PC+ABS

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection and overcurrent protection.

Application field: industrial testing equipment

Product features

1. Low self-discharge.
2. The battery pack has good security and long cycle life.
3. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
4. Special shape design meets all kinds of special structure customization.
5. It has drop resistant design.
