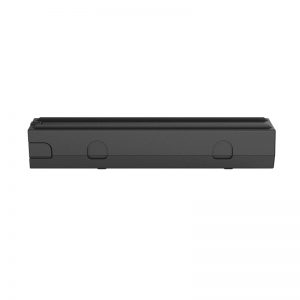

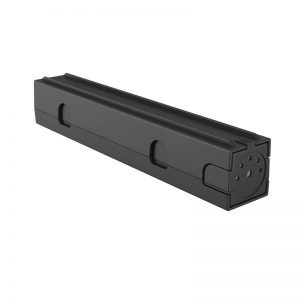

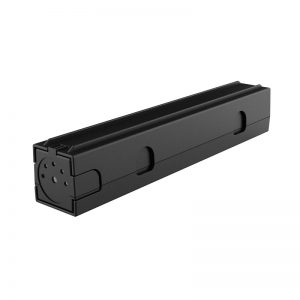

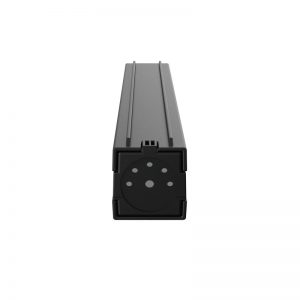

18650 14.8V 8800mAh Lithium Battery for Track Measurer

2020-08-25 07:33

18650 14.8V 8800mAh Lithium Battery for Track Measurer

• Model number:AIN14/8-8800
• Nominal voltage:14.8V
• Nominal capacity:8800mAh
• Battery cell:18650CL/2200mAh/3.6V
• Dimension:288.0*46.4*45.5mm（Max）
• Application: industrial device, track measurer

Product Detail

Cell model：18650CL/2200mAh/3.6V low temperature

Battery specification: 18650-4S4P/8800mAh/14.8V

Nominal voltage：14.8V

Nominal capacity：8800mAh

Charging voltage: 16.8V

Charging current: 1760mA

Discharging current: 1760mA

Instant discharging current: 4400mA

End-off voltage: 11V

Internal resistance: ≤250mΩ

Battery weight: 900g

Product dimension: 288.0*46.4*45.5mm（Max）

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20～30 ℃

Battery case: ABS

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: industrial device, track measurer
