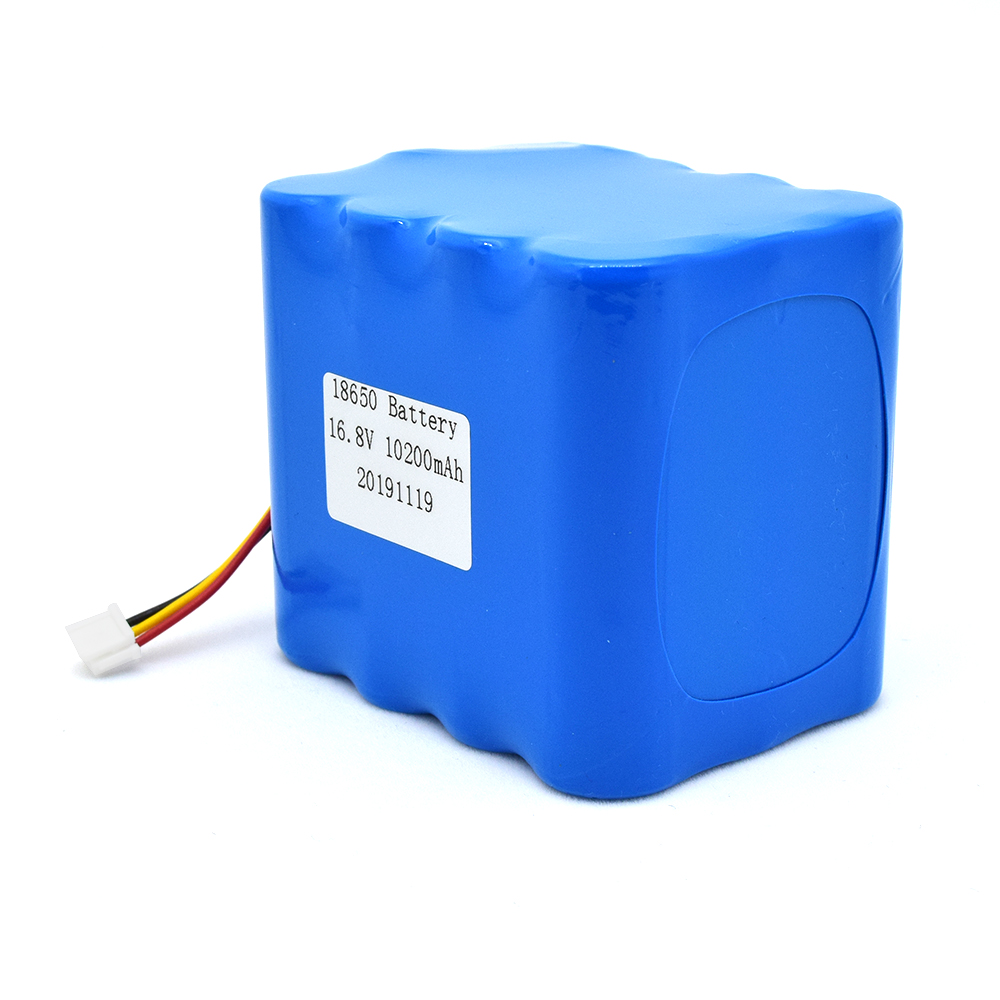

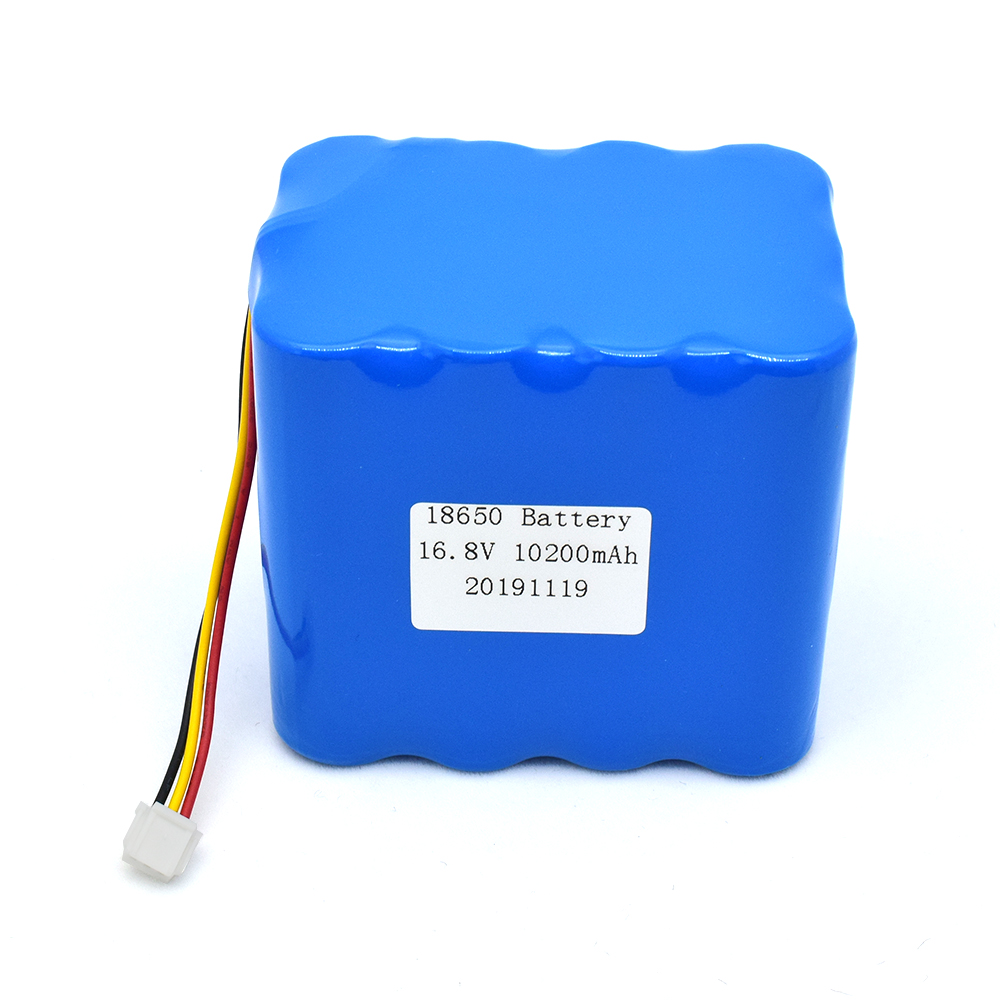

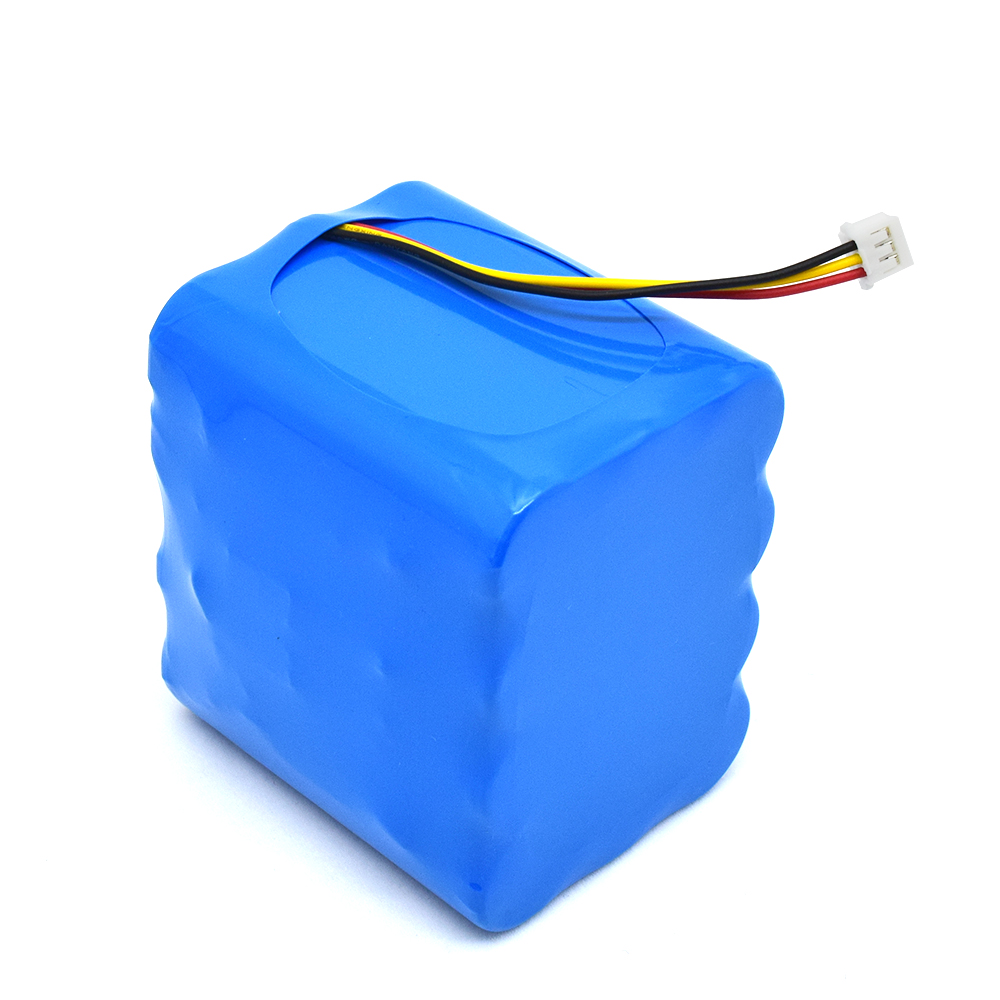

Electronic Devices 18650 4S4P 10200mah 16.8v BMS

2020-10-08 08:28



 Specifications:

CE/RoHS/UL/CB approved
ISO 9001:2000 & ISO 14001:2004 applied

ModelAIN18650-4S4Pcharge temperature0~45°C,45~85%RH
Norminal votage16.8V discharge temperature-20~55°C,45~85%RH
Norminal capacity10200mAh storage temperature and humidity rangewithin  a month-20~+55°C,45~85%RH
continous discharge current0.5Cabove three months-20~+45°C,45~85%RH
over discharge protection current2Cwithin one year-5~+20°C,45~85%RH
over charge protection voltage4.25V + / - 0.025V /CELL Size

  60mm*72mm*80mm(with pcm)
discharge protection voltage2.50V + / - 0.10V /CELL
max. charge voltage4.20v
charge current≤1CSampleOK
 Cycle Life                                        more than 500 times

Cautions:

1.Do not throw battery into water or make it wet;

2.Keep the battery away from heat source(like fire or heat)

3.Do not throw the battery into fire or heat the battery;

4.Forbid to hammer to trample the battery;

5.Forbid disassembling the battery in anyway

Our Factory

Advantages:

1.Professional lithium-ion battery manufacturer for 10 years.

2. CE/ROSH/SGS/UL/MSDS/UN38.3/IEC61233 standard.

3.Strong R&D team to support.

4.With short-circuit production function, safe and reliable.

5.Long cycle Life up to 500 times.

6.Flexible design to meet customer's unique requirement.

Related Lithium battery

Packing And Shipping

FAQ

Q. Do you make custom products?
A. Yes, we offer OEM/ODM solutions for our customers. The OEM MOQ is100,000 pieces.

Q. How long is your trial period for samples?
A. Two weeks (14 days).

Q. How long does it take for the production?
A. Around 20-25 days.

Q. What is your terms of payment?
A. 30% in advance as deposit and 70% before the delivery as the balance payment.

Q. What is your terms of delivery?
A. We offer EXW, FOB and CIF.

Q. How can we pay?
A.You can pay via T/T, PayPal and Western Union.

Note: We are a battery manufacturer. All products do not support retail, please contact us for product prices!
