Lithium Rechargeable 7S3P 24v 6ah lithium ion battery 24v 6ah battery

2020-08-12 09:28


1.Product Advantages:

1). Green product

2). Long standby time

3). One year warranty

4). Excellent safety performance

5). Excellent storage performance and low self-discharge rate

6). Short circuit testing passed

7). Overcharge testing passed

8). Over discharge testing passed

9). 150C thermal shock test passed

10). 1.2m drop testing passed

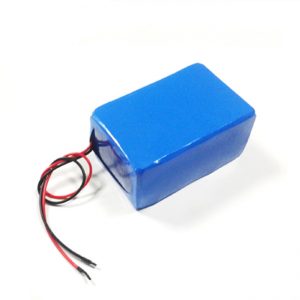

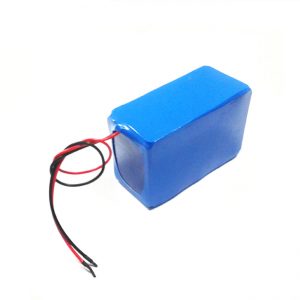

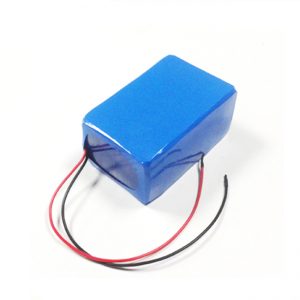

Product24V 6Ah Lithium ion battery
ModelAIN18650-7S3P
Rated Capacity6Ah
Nominal Voltage24V
Over discharge protection voltage29.4V±0.05V
Over charge protection voltage21V±0.05V
AC  (1KHz) Impedance New Cell Max.(mΩ)≤120 mΩ
Maximum Continuous Charge Current≤3A can be adjustable
Maximum Continuous Discharge Current≤5A can be adjustable
Maximum Pulse discharge current≤15A can be adjustable
Operation Temperature RangeCharge: 0~45℃,Discharge: -20~60℃
Storage Temperature RangeLess than 1 year: -20~25℃
Less than 3 months: -20~40℃
Storage Temperature RangeLess than 30 Days: -25℃~45℃
Less than 90 Days: -25℃~30℃
WeightApprox  1.2kg
Cycle Characteristicover 800 times
Export2 wires/plugs/connnectors
Dimension58*72*145mm   ,  can be customized

2.Key Applications:

Widely applied in POS system, Solar supply system, electric tools, lighting devices, toy, household appliances and emergent device area. cordless phone, power tools, instrument and apparatus, electric bikes, Portable equipment: Laptop, camcorder,emergency light , Military equipment: IR telescope, Medical devices, household appliances, small portable Power tools  and etc.
3.Spotlight:

1).Provide both single cells and battery packs

2).100% inspection before delivery

3).Inspects inner resistance, discharge platform and self-discharge

4). manufacturer of 18650 lithium ion battery,lithium polymer battery etc.

5).tablished quality control systems under ISO9001

6).stomized packs, tags,labels, plugs, connectors, over current protection, temperature cont8.l protection are available

 4.Shipping terms:

1).Samples checking: sending by Express ( DHL / UPS / FEDEX / TNT ,by air)

2).Bulk production: sending out by cargo shipping / air freight / Express(DHL/UPS/FedEx/TNT),or we can accept other shipping terms according to your requirements.

3).We are not responsible for any accidents, delays or other issues that are caused by the shipping.

5.Safety Precaution:

1).Do not throw battery into water or make it wet;
2).Keep the battery away from heat source(like fire or heater);
3).Do not throw the battery into fire or heat the battery;
4).Forbid to hammer to trample the battery;
5).Forbid disassembling the battery in anyway

Note: We are a battery manufacturer. All products do not support retail, please contact us for product prices!
