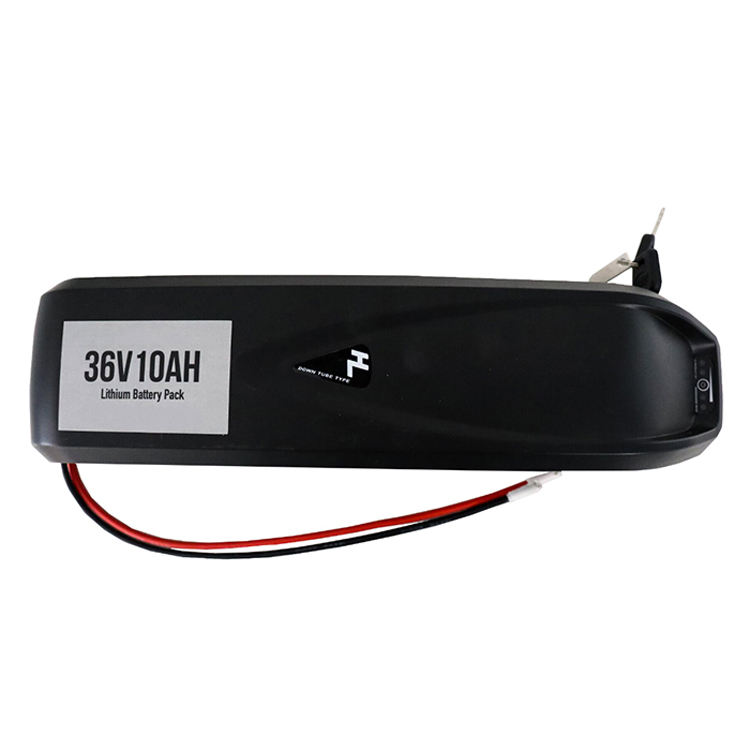

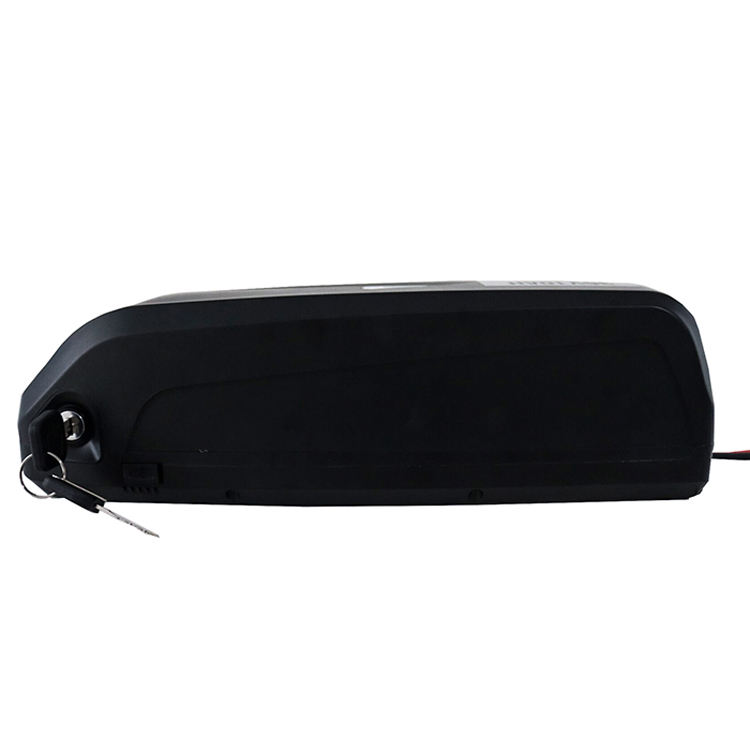

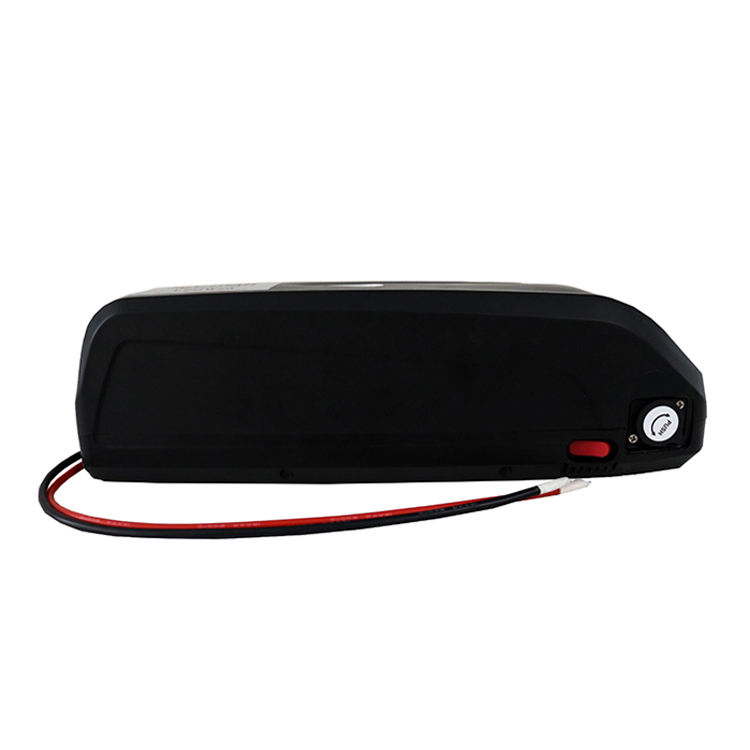

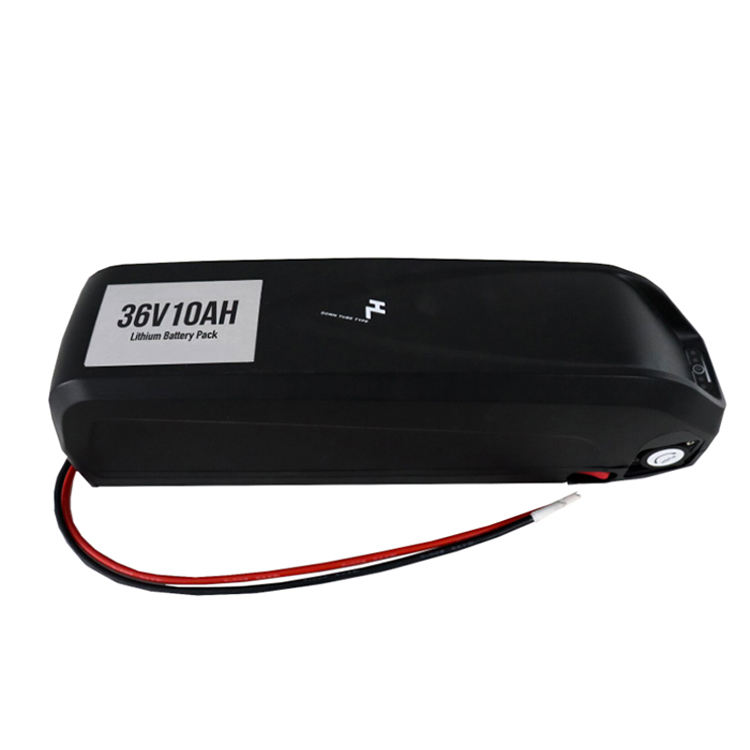

36V 10Ah Storage Battery Packs for Electric Scooter Bicycle Vehicle

2025-09-09 01:48

Specification

Model No.	AIN36-10
Nominal Voltage	38.4V
Nominal Capacity @ 0.2C	10Ah
Watt-Hour	384Wh
Dimensions	368mm*90mm*111mm
Weight	3.1Kg
Internal Resistance	≤50mΩ @ 50% SOC
Recommended Charge Current	2A(0.2C)
BMS Maximum Charge Current	10A
Charge Cut-off Voltage	43.8V
Maximum Continuous Discharge Current	10A
Peak Discharge Current	30A (3S)
Discharge Cut-off Voltage	30V
Expected Cycle Life	≥2000 cycles at 0.2C/0.2C, 80% DoD
Self Discharge	<3% per month
Cell Type	Cylindrical
Operating Temperature Charge Discharge Storage	0 - +55°C -20 - +60°C -5 - +35°C
Humidity	RH≤85%
Case Material	ABS
Terminal	M8 bolt
Communication Interface	BT Monitor

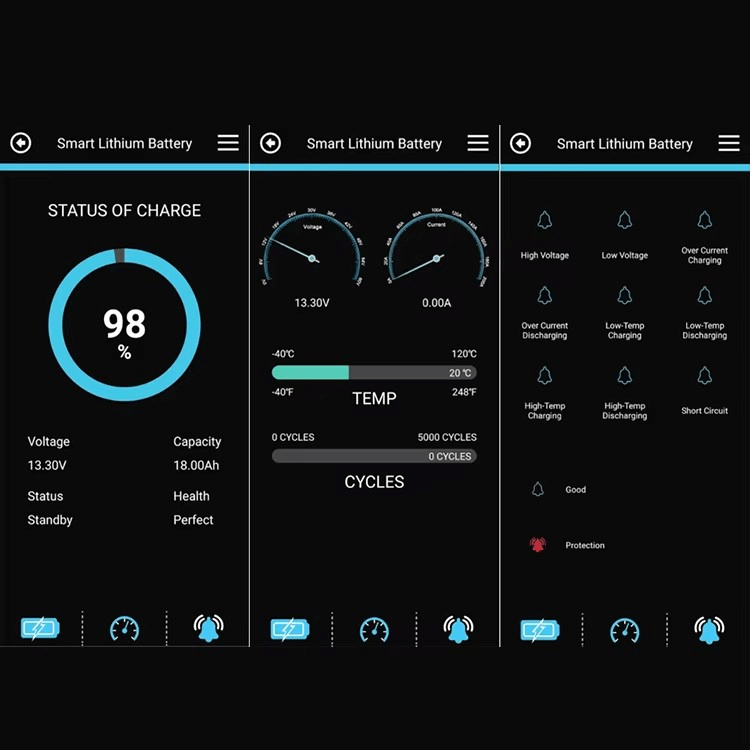

Built-in BT Communication

BT BMS can precisely monitor real-time parameters( volt, current, state of charge, cycle time, temperature) and alarm (high volt, low volt, over current, short circuit),keep you informed about functioning of your battery, and also State of Charge and how much energy left, save your hundred of dollars buying an external battery monitor.

Our Great Service

1.We specializes in research, develop, produce and selling lithium ion battery pack for over 15 years in our own factory.
2.Strong and professional R&D team to support.
3.Offer OEM service for customer's orders.
4.Quick reply, action for long-term cooperation.
5.Competitive price, quality and great pre-sale and after-sales service.

Our Factory

Packing and Shipment

Sample time: About 7-10 days. Bulk order time: About 30 days.

Shipping method: Express, by Air and Sea etc.

Kind Notice: All Batteries have been tested one by one carefully by our professional engineer team,and package well to protect the products from being damaged during transportation.

FAQ

1. Who are we?
   We are based in Guangdong, China, start from 2010,sell to North America(34.00%),Western Europe(32.00%),Oceania(7.00%),Mid East(5.00%),Southeast Asia(3.00%),Eastern Europe(3.00%),Northern Europe(3.00%),South Asia(2.00%),Southern Europe(2.00%),Domestic Market(1.00%),South America(1.00%),Eastern Asia(1.00%),Africa(1.00%). There are total about 51-100 people in our office.

   2. How can we guarantee quality?
   Always a pre-production sample before mass production;
   Always final Inspection before shipment;

   3.What can you buy from us?
   lithium-ion battery,battery charger,LiFePO4 battery,power wall,energy storage system

   4. Why should you buy from us not from other suppliers?
   1. Professional R&D team; 2. Advanced production and test equipment; 3. 10 years experience in lithium battery industry; 4. Good customer service

   5. What services can we provide?
   Accepted Delivery Terms: FOB,EXW,Express Delivery；
   Accepted Payment Currency:USD,EUR,GBP,CNY;
   Accepted Payment Type: T/T,Western Union,Cash;
   Language Spoken:English,Chinese,Spanish,German,French
