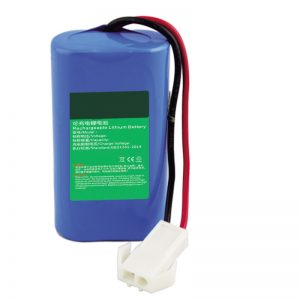

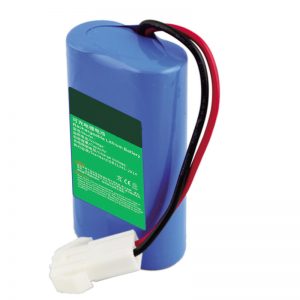

18650 7.2V 2.6Ah Lithium Battery for Express logistics handheld terminal equipment

2020-08-27 08:42

NoItemStandardRemark
1ModelAIN7/2-2600
2Cell Specification18650/2600mAh/3.6V
3Battery pack18650/2S1P/2.6Ah/7.2VCustomizable
4Rated Capacity2.6AhCustomizable
5Min Capacity2.5Ah
6Energy18.72Wh
7Nominal Voltage7.2VCustomizable
8Voltage Before Shipment≥7.8V
9Inner Resistance≤100mΩ
10Charging Voltage8.4±0.2V
11Floating Charging Voltage8.5±0.2V
12Standard Charging Current0.52A
13Max Charging Current1A
14Standard Discharging Current0.52A
15Max Discharging Current2.6A
16Peak discharge current5A/0.1s
17Terminate Voltage6V
18SizeLength  75±1 mmCustomizable
Wide  39±1 mmCustomizable
Thickness  20±1 mmCustomizable
19WeightAround 110g±20g
20Output WayJST ELP-02V-2P UL1007/18#,Wire Length 95mmCustomizable
21Working TemperatureCharge:0~45℃
Discharge:-20~60℃
Recommended Working Temperature:15℃~35℃
22Self-discharge RateThe Residual Capacity:   ≤3%/Month;    ≤15%/Year
Recoverable Capacity

: ≤1.5%/Month;   ≤8%/Year

23Storage EnvironmentLess Than a Month:-20~+35℃、45~75%RH
Less Than 3 Months:-10~+35℃、45~75%RH
Recommended Storage Temperature:15~30℃、45~75%RH
24Warranty12 Months
25Operation StandardGB31241-2014
Long time storage:

When the battery needs to be stored for a long time, it should be charged to nearly 50% of the battery with a voltage of about 7.8V and placed under the recommended storage conditions. Do a full charge and discharge cycle at least once every 6 months (charge first, discharge and then recharge 50%).

Application Field:

Field water quality monitor lithium battery, laser particle counter lithium battery, intelligent robot lithium battery, track signal lamp standby power lithium battery, industrial instrumentation, industrial control monitoring instrument, medical infusion pump lithium battery portable instrument power supply and other fields.

Main Features:

1. Multiple protection functions: over charge, over discharge, over current, short circuit over temperature, etc.;
