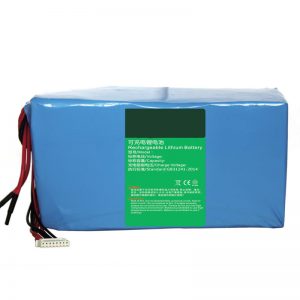

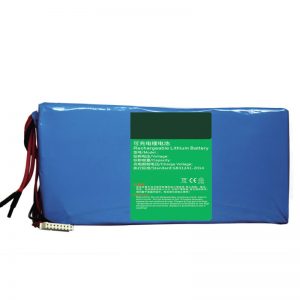

18650 48V6Ah Laser equipment backup power lithium battery

2020-08-26 06:18

NO	Item	Standard	Remark
1	Model	AIN46/8-6000
2	Cell Specification	18650/3000mAh/3.6V
3	Battery pack	18650-13S2P-6Ah-46.8V
4	Rated Capacity	6.0Ah	Customizable
5	Min Capacity	5.4Ah
6	Energy	280.8Wh
7	Nominal Voltage	46.8V（48V）	Customizable
8	Voltage Before Shipment	≥49.4V
9	Inner Resistance	≤180mΩ
10	Charging Voltage	54.6±0.2V
11	Floating Charging Voltage	55.25±0.2V
12	Standard Charging Current	1.2A	0.2C
13	Max Charging Current	3.0A	0.5C
14	Standard Discharging Current	1.2A	Customizable
15	Max Discharging Current	6A	Customizable
16	Peak discharge current	10A/0.1s
17	Terminate Voltage	35.75V
18	Size	Length 175±1 mm	Customizable
		Wide 90±1 mm	Customizable
		Thickness 75±1 mm	Customizable
19	Weight	Around 1.65kg±0.3kg
20	Output Way	UL3135 AWG 18# Wires 200mm	Customizable
21	Working Temperature	Charge：0～45℃
		Discharge：-20～60℃
		Recommended Working Temperature：15℃～35℃
22	Self-discharge Rate	The Residual Capacity： ≤3%/Month; ≤15%/Year
22	Self-discharge Rate	Recoverable Capacity ： ≤1.5%/Month; ≤8%/Year
23	Storage Environment	小于1个月：-20～+35℃、45～75%RH
		小于3个月：-10～+35℃、45～75%RH
		Recommended Storage Temperature：15～30℃、45～75%RH
24	Warranty	12 Month
25	Operation Standard	GB31241-2014
Long time storage: When the battery needs to be stored for a long time, it should be charged to a state close to 50% of the battery with a voltage of about 50.7V and placed under the recommended storage conditions. Do a full charge and discharge cycle at least once every 6 months (charge first, discharge and then recharge 50%). Application Field: Spare power battery for laser equipment, lithium battery for medical rehabilitation robot, lithium battery for patrol robot, power supply for medical devices and equipment, security instruments and meters, wireless monitoring equipment, RGV rail transit, unmanned ship, standby power supply for security, etc Main Features: 1. Super large capacity: imported high energy density 18650/3.6 V/3000mAh battery core, small volume, high capacity. 2. Multiple protection functions: over charge, over discharge, over current, short circuit over temperature, etc.;
