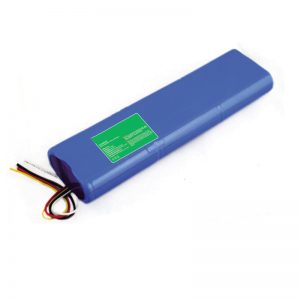

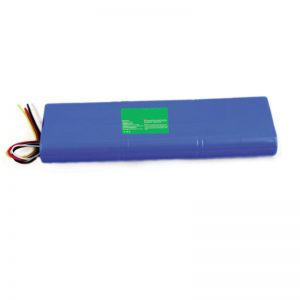

11.1V 9000mAh 18650 lithium battery pack for Intelligent reinforcement computer

2020-08-26 01:46

Specification

NOItemStandardRemark
1ModelAIN3/6-3000
2Cell SpecificationICR18650/3000mAh/3.6V
3Battery pack18650-3S3P-9000mAh-10.8V
4Rated Capacity9000mAhCustomizable
5Min Capacity8550mAh
6Energy97.2Wh
7Nominal Voltage10.8VCustomizable
8Voltage Before Shipment≥11.4V
9Inner Resistance≤150mΩ
10Charging Voltage12.6±0.2V
11Floating Charging Voltage12.65±0.2V
12Standard Charging Current2700mA
13Max Charging Current4500mA
14Standard Discharging Current2700mACustomizable
15Max Discharging Current5000mACustomizable
16Peak discharge current9000mA/0.1s
17Terminate Voltage8.25V
18SizeLength   200±1 mmCustomizable
Wide   80±1 mmCustomizable
Thickness   22±1 mmCustomizable
19WeightAround  610g±30g
20Output WayUL1007/P Red 18# =P+,P2 Yellow 24# =SMBD,P Black 24# =SMBC,P4 Black 18#=P-,Wire 100mmCustomizable
21Working TemperatureCharge:0~45℃
Discharge:-20~60℃
Recommended Working Temperature:15℃~35℃
22Self-discharge RateThe Residual Capacity:   ≤3%/Month;    ≤15%/Year
Recoverable Capacity

: ≤1.5%/Month;   ≤8%/Year

23Storage EnvironmentLess Than 1 Month:-20~+35℃、45~75%RH
Less Than 3 Months:-10~+35℃、45~75%RH
Recommended Storage Temperature:15~30℃、45~75%RH
24Warranty12 Months
25Operation StandardGB31241-2014
Long time storage:

When the battery needs to be stored for a long time, it should be charged to nearly 50% of the battery with a voltage of about 11.5V and placed under the recommended storage conditions. Do a full charge and discharge cycle at least once every 6 months (charge first, discharge and then recharge 50%).

Application Field:

Industrial supporting facilities, hand-held instruments and equipment, intelligent reinforcement computer and other fields

Main Features:

1. Accurate electric quantity detection: use intelligent electric quantity detection meter IC to calculate the remaining electric quantity, with an accuracy of 5%;

2. Multiple protection functions: over charge, over discharge, over current, short circuit over temperature, etc.;

3. Support SANBUS communication protocol and monitor battery condition in real time

Note: All products do not support retail, please contact us for product prices!
