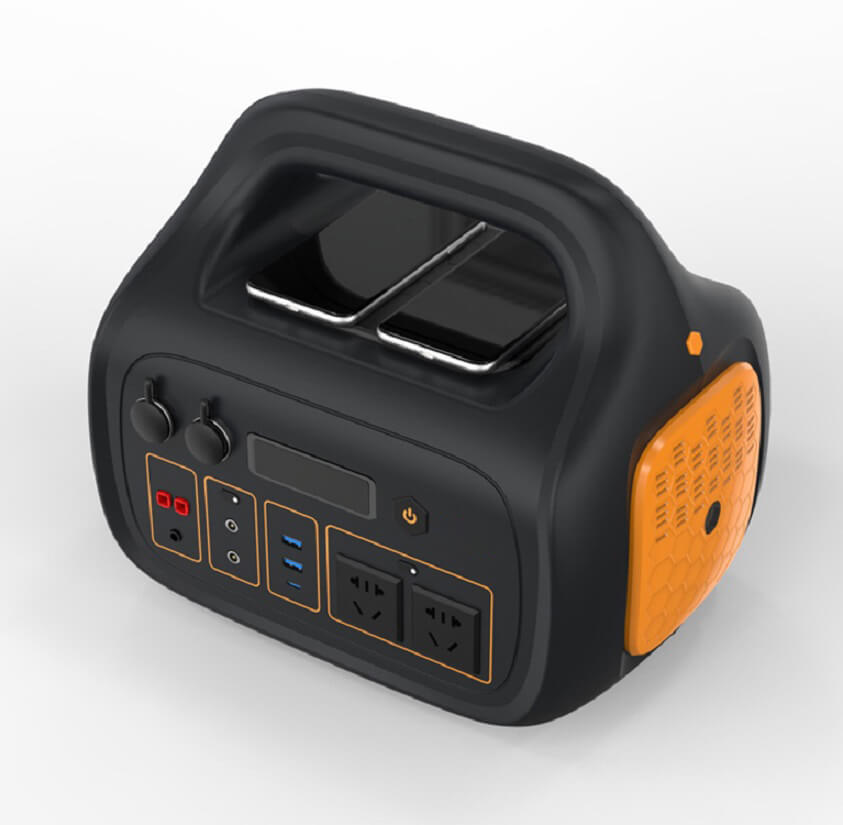

1000W Portable Power Station LiFePO4 Battery

2021-11-04 09:57

Specification

Product modelAS1000 LFP
Output waveformPure sine wave
Output powerRated 1000W Peak power 2000W
Output voltageAC100V - 240V
output frequency50 hz 或 60 hz(50 hz or 60hz)
Built-in battery pack typeLFP
Built-in lithium battery pack capacity25.6 V 42AH 1075.2 WH
Battery self - consuming current)≤500uA
AC input voltage rangeAC 90v-140v 50HZ or AC180-265V 50/60Hz)
Built-inconverterhas no load current)≤0.05A
Built-in converter undervoltage protection≤19.6V
Built-in converter temperature protection≤85℃
Intelligent power management systemBMS
Case MaterialsVO Grade ABS fire-proof material
Operating Temperature0℃ ~ 60℃





Built-in converter overload protection≥2000W
Built-in converter conversion efficiency≥90%
Built-in charger chargingcurrent15A±0.5A
Built-in battery protection board overrelease protection20.8V±0.2V
Built-in battery protection board overchargeprotection25.6V±0.1V
12V DC output specification12V/10A( MAX 130W)
USB DC output specification5 V 2.1 A/9V 2A, 12V 1.5A,PD60W
AC fully charged battery voltage25.6V±0.1V
AC charging time≤10H
Solar panel optional specificationsConversion efficiency of 36V 100-200W ≥18%
Solar energy full battery voltage36V±0.3V



LED lighting power)3W
The product weight13 kg
Product size (L * W * H)L360*W215*H300mm
colorblack+Orange red

Product Features

  1. Fashion design, exquisite appearance and easy to carry.
  2. Light weight, small size, high capacity, using high-quality power lithium-ion battery.
  3. Support DC USB2.0 USB3.0 PD60W DC 12V 10A 5V output, AC 100V/110V/220V/230V output, the output jack type can be designed according to the electricity demand of various countries.
  4. Eight protection functions (over current protection, over voltage protection, under voltage protection, over power protection, over discharge protection, over charge protection, over temperature protection, short circuit protection), safer to use.
  5. Three charging modes, mains, solar and vehicle charging.
  6. It supports charging and discharging at the same time. It has a wide range of uses. It can be used as an online UPS power supply or as an outdoor emergency backup power supply. It can meet indoor medical equipment, small printers, various lamps, small fish tank heaters, notebooks, and outdoor camping. It is used when lighting and AC power supply are required in occasions such as photography, fire emergency, emergency rescue and disaster relief.

Usage

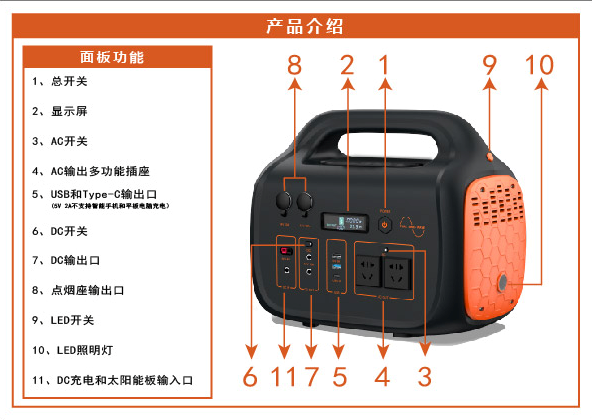

  1. Turn on the AC power supply: (1) Click the No. 1 button of the main power switch (2) Click the No. 3button of the AC switch (3) AC power starts to work.
  2. Turn on the DC power supply: (1) Click the No. 1 button of the main power switch (2) Click the No. 6button of the DC switch (3) Start the DC power supply. Direct current includes cigarette lighter, DC5525, USB, PD
  3. Turn on the LED light: (1) Click the No. 1button of the main power switch (2) Long press the No. 9button of the LED light switch for 3 seconds

(3) Turn on the LED light (4) Click the No. 9 button of the LED light switch to turn on the burst mode (5) Click the No. 9 button of the LED light switch to turn on the SOS mode (6) Click the No. 9 button of the LED light switch, LED Lights off.

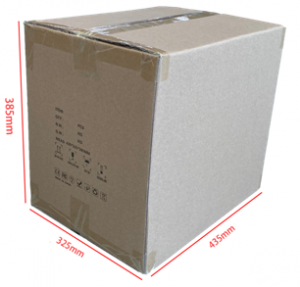

Packing And Shipping

FAQ
Q1. Can I have a sample order for Battery?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A:Sample needs 5-10 days, mass production time needs 25-30 days.

Q3. Do you have any MOQ limit for Battery?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by UPS, TNT... It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for Battery?

A: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.

Q6. Is it OK to print my logo on Battery?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 1-2 years warranty to our products.





Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!
