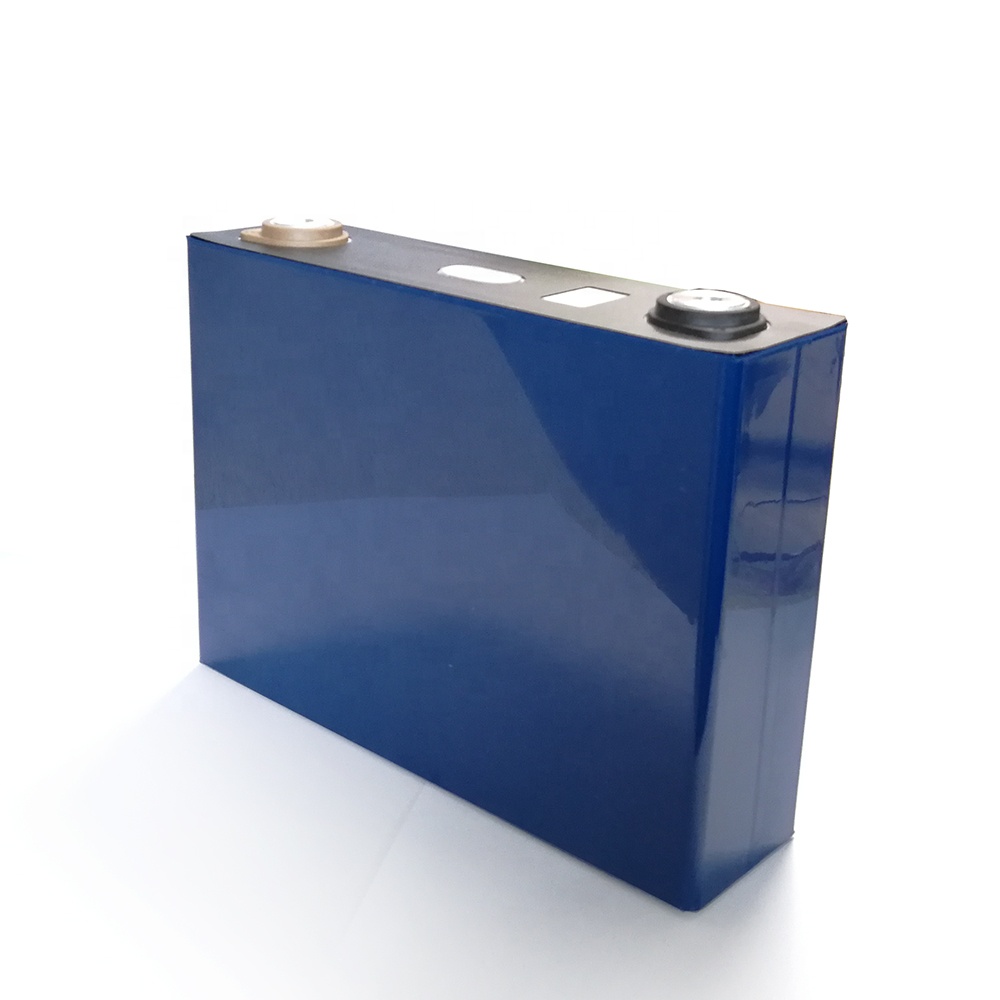

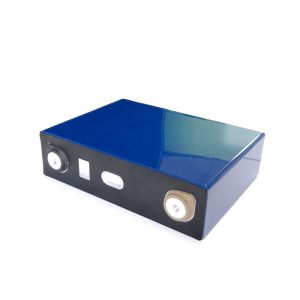

Deep cycle 3.2V 100Ah lithium LiFePo4 battery cell for Solar Panel

2020-12-10 00:29


Nominal capacity100Ah
Working voltage2.50-3.65V
Internal resistance≤ 0.35mΩ
Charge temperature0°C ~ 55°C
Discharge temperature-20°C ~ 55°C
Net weightaround 2.3KG
Self-discharge rate≤3.5% monthly
Stadnard charge current50A
Standard charge voltage3.65V
Charge methodCC/CV
Standard discharge current50A
Max continuous discharge current100A
Max pulse discharge current258A
Warranty2 years
Lifecycle2000 times
Discharge cut off voltage2.5V


Low self-discharge

Free of charge memory

Steady discharge and charge performance.

Outstanding thermal stability

Wide temperature performance

Short circuit protection

Over charge and over discharge protection

Over current protection

Easy carrying and installation - can be carried and installed in any direction

Fast charging - about 4~6 hours to be fully charged

Lighter weight - 1/2~1/4 in weight compared to LA batteries

Require no change to a lead acid battery charging system

Better safety - mild warm, no explosion and firing, free of leakage

Environmentally friendly - no poisonous lead, no acid, no heavy/rare metals,

No gasses during charge, free of leakage and pollution


Our Services

1. OEM an ODM available

2. All of your inquiry or emails will be replied within 12 hours

3. All of the battery and accessories will be tested before shipment

4. We can help you to track the shipping status so that you can receive the goods timely

5. If any quality problem,we can replace new item for you

6. We can gurantee on time leadtime and high quality of goods

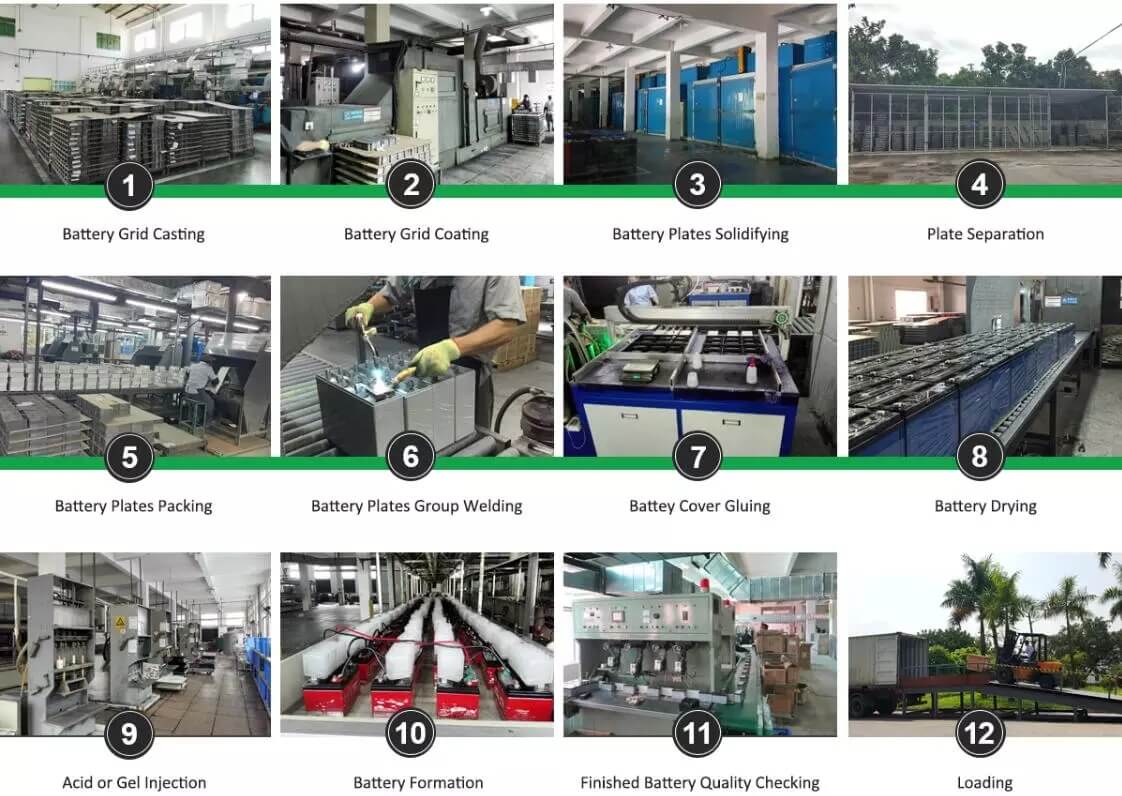

Our Factory

Packing And Shipping


Q1:Can I have samples to test? And what is lead time for sample order?
A1:Yes,we can supply samples,the leadtime for samples is 7-10days.and buyer pay for sample cost and shipping cost.

Q2: Do you provide after-sales serive?
A2: Yes,the warranty is 2 years, if any quality problems on our side in this period, we can send new one as replacement.

Q3 What is your company's advantage?
A3: We only supply high level quality of lithium battery and we gurantee on-time shipment,we also provide excellent after sales service

Q4: Do you accept OEM/ODM?
A4: Yes,it is avaliable.

Q5: What is your lead time for the mass production?
A5: General speaking, about 25-30 days depending on different items after getting down payment and confirmation about the samples.

Q6:Are you battery real capacity?

A6:All of our battery cells with Grade A,100% new and real capacity.

Q7:Are you a factory or a trading company?

A7:ALL IN ONE Battery Technology Co Ltd. is a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer,welcome to visit.

Q8: What kind of certificates do you have?
A8: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 if your order quantity is big.

Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!
