Ganfeng Prismatic rechargeable new cell deep cycle lifepo4 3.2v 100ah

2023-03-27 08:11

1. High capacity and stable discharge voltage
2. Longer working time with high performance
3. Light weight with small size
4. Outstanding discharge properties and small internal resistance
5. No memory effect, good discharge ability and high load and resist high temperature
6. Pollution free for environmental protection
7. 100% Authentic original li-ion rechargeable battery
8. Bulid-in anti-explosion protection and circuit protection

9.Long cycle life more than 4000 times

10.Good consistency, low self discharge

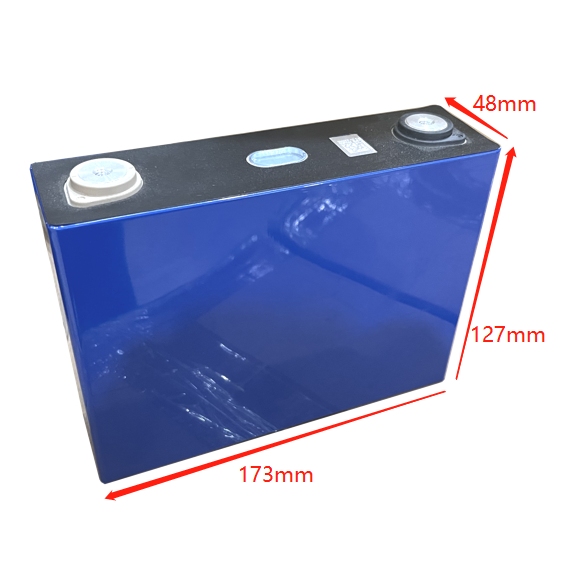

Battery type:lifepo4 prismatic cells
Nominal Voltage(V):3.2V
Nominal Capacity(mAh):100Ah
Max Charge Voltage:3.65V
Discharge cut-off voltage:2.5V
1Max charge current:1C
Max discharge current:3C
Internal resistance:<0.34mohms
Charge Temperature(℃):0~55Centigrade
Discharge Temperature(℃):-20~55Centigrade
Storage Temperature(℃):-20~45Centigrade
Cycle life:More than 4000 times
Weight(g):About 2.3kg


Our Factory

Please use the battery correctly in strict accordance with the following requirements,otherwise it is not covered by the warranty
1.When charging and discharging the battery, ensure that the conditions for monitoring and protecting the battery voltage, current and temperature are available.

2.Please keep the battery away from heat source, ignition source and other heating and corrosive environments such as strong acid and alkali.

3.Do not short circuit the battery or install it with incorrect polarity at any time.

4.Do not mix batteries of different models or manufacturers.

5.Do not use external force to drop, impact or puncture the battery. Do not disassemble the battery or change the external structure.

6.When the battery is not used for a long time, please keep the battery charge at 30%~50% SOC, and avoid direct sunlight or high temperature and humidity.

7.When operating the battery, it is necessary to wear protective devices such as rubber gloves.

8.If the battery leaks, smokes or is damaged, please stop using it immediately.

9.Do not charge below zero centigrade

Kindly Reminder
1. DIY battery pack must get the cells balanced (same voltage ) before assembly. Later if there happens don't know how to assembled or wrong assembly is not accepted refund.

2. Professionals will detected voltage/resistance/appearance and other issues
before every shipment, we can only ensure that the single battery is good, when arrival you can test the cells within 15 days,after that means batteries have no problem, does not provide return nor refund.

3. If you found problems you can contact us for return or refund. Battery can only be unused (the electrode intact, no welding, no wear, the appearance good) to provide return. Any return behavior buyers need to be responsible for shipping fee.

Safety precautions and prohibitions!!
1.Don't leave a cell near a fire or a heat source.

2.Don't throw a cell into a fire.
3. Don't immerse, throw, and wet cell in water / seawater

4.Don’t store metallic objects (such as keys or screwdriver) near the cell.
5.Don't short circuit (+) and (-) terminals with metallic object intentionally.
6.Don't pierce cells with a sharp object such as a needle, or screwdrivers.
7.Don't heat a part of cells with heating objects such as a soldering iron.
8.Don't hit cells with heavy objects such as a hammer, or heavy weights.
9.Don't put the a cell into a microwave oven, dryer, or a high-pressure container
10.Don’t expose to water splashing condition.
11.Don’t keep batteries close to baby.

Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!
