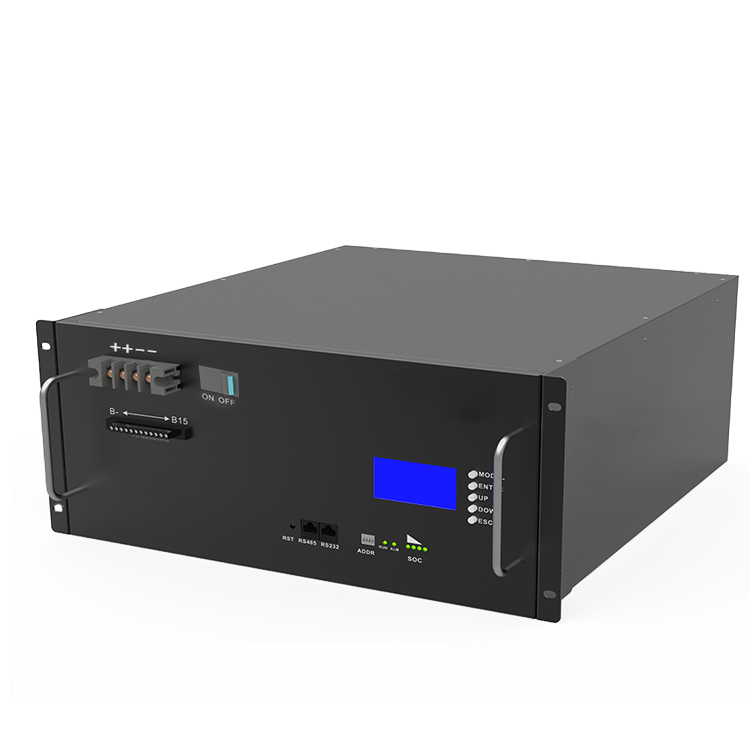

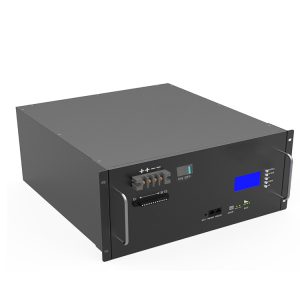

lithium iron phosphate battery for solar systems 48v solar lifepo4 lithium battery 48v 200ah 48v battery

2022-02-15 06:02

Specification

Model
2022-AIN48V50AH
2022-AIN48V100AH
2022-AIN48V150AH
2022-AIN48V200AH
Nominal Voltage(V)
48v
48v
48v
48v
Nominal Capacity(Ah)
50
100
150
200
Usable Capacity(Wh)
2400
4800
7200
9600
Dimension(mm)
442*385*132
442*410*220
442*450*250
442*450*280
Weight(Kg)
29
44
68
91
Cycle Life
4000~6000 , 25℃
4000~6000 , 25℃
4000~6000 , 25℃
4000~6000 , 25℃
Communication Port
RS232 .RS485 .CAN RS232 .RS485 .CAN RS232 .RS485 .CAN
Charge Voltage(V)
53.2~54
53.2~54
53.2~54
53.2~54
Internal Impedance(mΩ)
≤50
≤50
≤50
≤50
Charge / Discharge Current (A)
10 (Recommended)
20 (Recommended)
30 (Recommended)
40 (Recommended)
Design Life(Years)
12
12
12
12

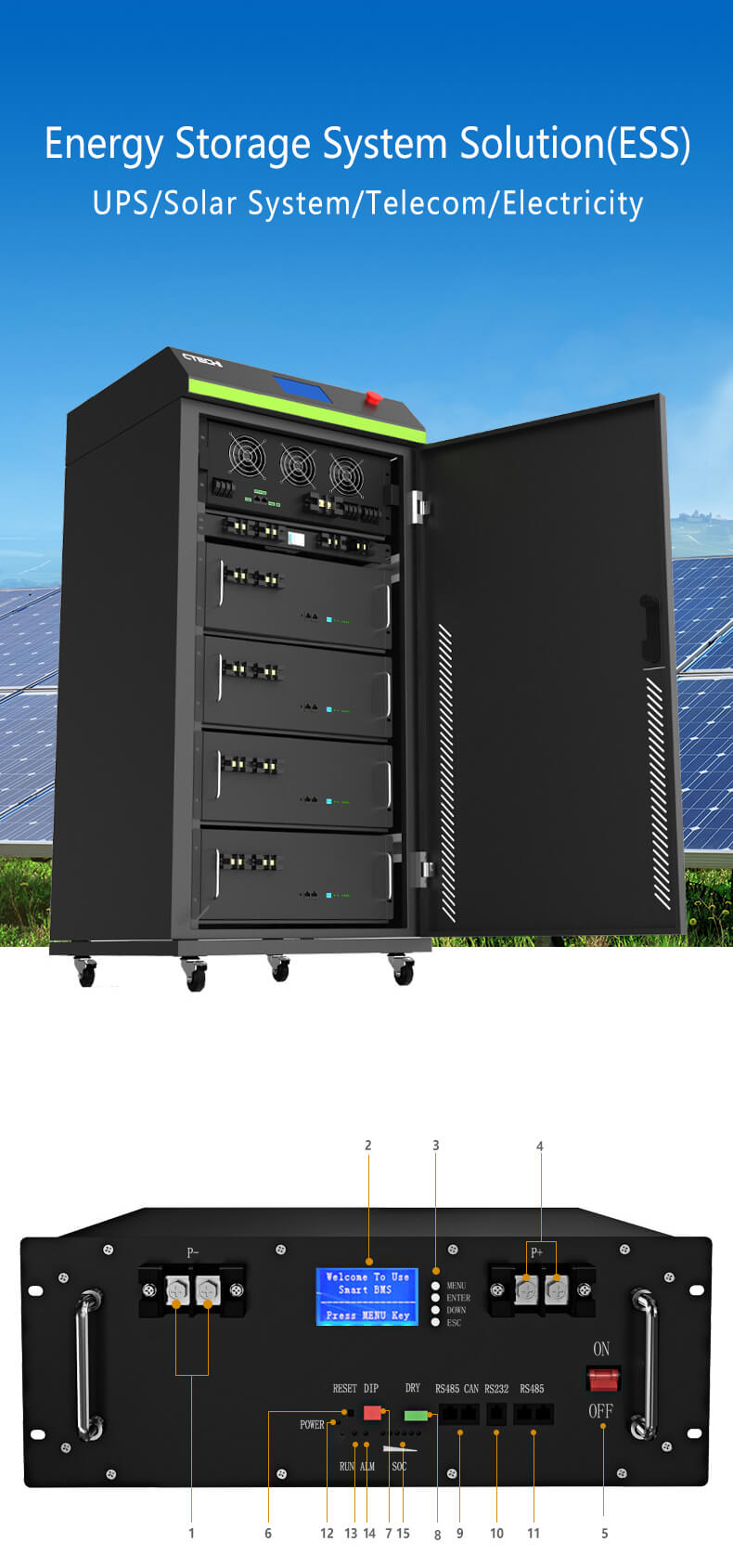

<div">Item
Name
Definition
1
Negative socket
Battery output or parallel cathode line
2
LCD Monitor
Lcd display
3
Menu button
4
Positive socket
Battery output or parallel anode line
5
Power switch
OFF/ON, remains ‘ON’ when using
6
RESET
7
DIP
8
DRY
9
CAN/485
CAN/485 Communication Port communication (factory default CAN communication)
10
RS232
Multiple interfaces possible
11
RS485-2
Multiple interfaces possible
12
Power
13
RUN
Green light, flashing when standby, always on when discharge, flash when charging
14
ALM
Red lights, flash when warning, always on when protection. When the condition of triggering protection is removed, the battery
can
15
SOC
Green light, showing battery capacity

Feature

1.Longer Cycle Life : Offers up to 20 times longer cycle life than lead acid battery. Over 2000 cycles, also the cell is able to deliver virtually full power, helps to minimize replacement cost and reduce total cost of ownership
2.Lighter Weight : About 40% of the weight of a comparable lead acid battery, easy to move and install. It is an ideal choice for outdoor camping power supply and simple indoor installation.
3. Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity
4. Wider Temperature Range : -20℃~65℃
5. Superior Safety: Lithium Iron Phosphate chemistry eleminates the risk of explosion or combustion due to high impact overcharging or short circuit situation
6. BMS Comprehensive Protection: The lithium battery has a built-in Battery Management System (BMS) that can protect it from overcharging, deep discharge, overload, overheating and short circuit, and low self-discharge rate
7. Wide application: Suitable for RV, Caravan, Marine, Boat, Overland, Backup power supply and Off Grid Applications.
