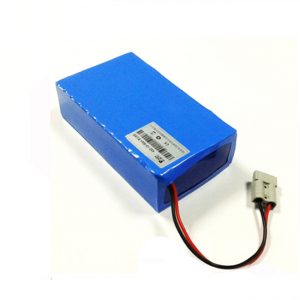

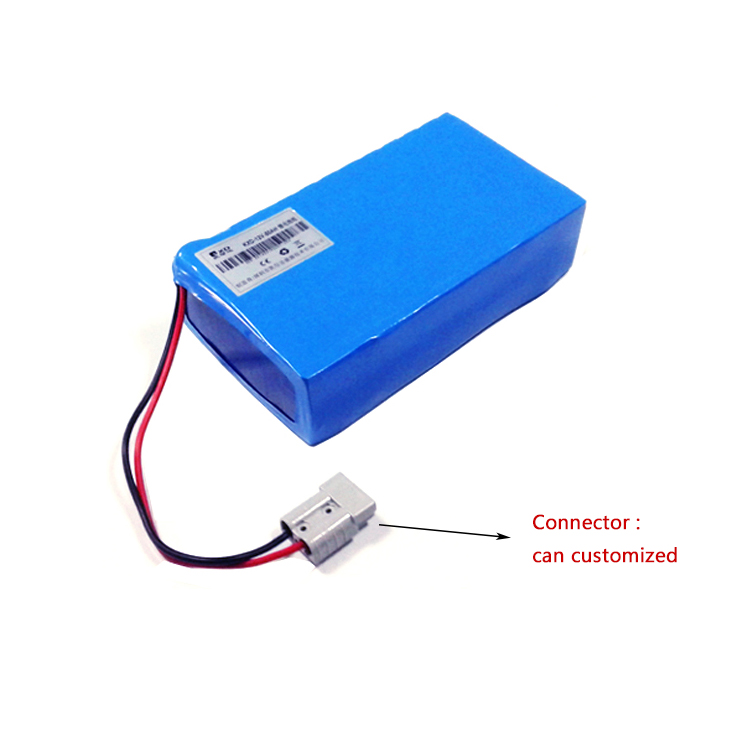

Lithium ion battery packs 60v 12ah electric scooter battery

2020-10-29 02:04

Specification

Item	Specification
Technical data:	AIN-60V-12Ah
Chemistry:	Li-ion/Lithium ion

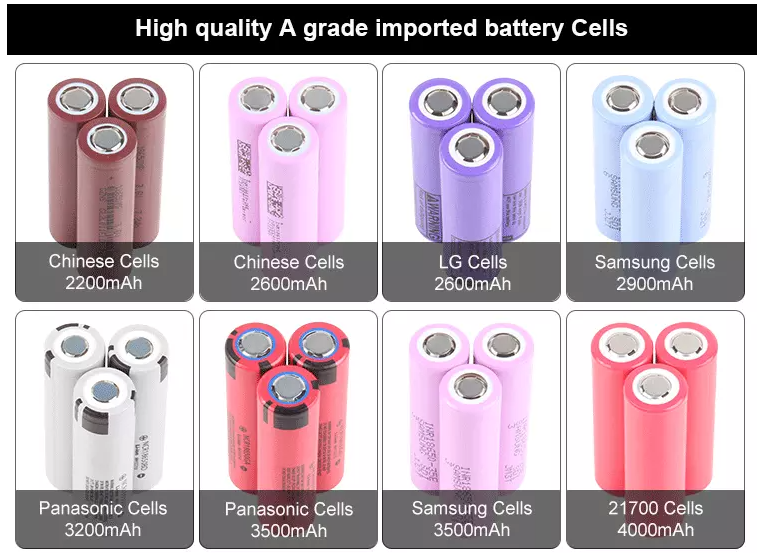

No. of cells:	18650 16S5P
Capacity:	12Ah discharging at 0.2C
Nominal Voltage:	60V
Standard charge voltage:	67.2V±0.05V
Standard discharge voltage:	48±0.05V
Impedance:	≤ 150 mΩ
Norminal Charge Current:	0.5C
Maximum Charge Current:	<10Ah  (can be adjustable)
Maximum Discharge Current:	<15Ah  (can be adjustable 10A 20A)
Maximum Pulse discharge current:	≤ 45A (can be adjustable)
Charge end current:	0.01C
Operation Temperature Range:	Charge: 0~45℃
	Discharge: -20~60℃
Storage Temperature:	Less than 1 year: -20~25℃
	less than 3 months: -20~40℃
Weight:	Approx 4.5kg
Dimension:	Customized

Charger:

Item	Specification
Technical data	67.2V 2A/5A
Input Voltage	AC90~240V
Output Voltage	67.2V
Max charging current	2A/5A
Protection function	AC safety&output short circuit, over charging/temperature
Weight	0.5kg
Warranty	12 months

Application

Our Factory

Production Capacity:

Product Line Name	Production Line Capacity	Actual Units Produced(Previous Year)
Lithium Lon Battery, Lifepo4 Storage Battery, Lithium Polymer Battery	Lithium Lon Battery: 1000000 Sets/Year;Lifepo4 Storage Battery: 1000000 Sets/Year;Lithium Polymer Battery: 6000000Sets/Year	1000000Sets/Year;1000000Sets/Year; 6000000 Sets/Year

Export Market Distribution:

Market	Revenue(Previous Year)	Total Revenue (%)
North America	confidential	60.0
Western Europe	confidential	40.0

Production Machinery:

Machine Name	Brand & Model No.	Quantity	Number of Year(s) Used	Condition
Sanyo SMT	Sanyo	2	2.0	Acceptable
Ten Range Automatic Sorting Machine	Shencheng	1	2.0	Acceptable
Sorting Machine Core	No Information	10	2.0	Acceptable
Laminating Machines	BSE-4535	1	2.0	Acceptable
Ink-jet Machine	A400	1	2.0	Acceptable
Heat Gun	8616	6	2.0	Acceptable
Spot Welder	HY-8868	11	2.0	Acceptable
Reflow Oven	No Information	1	2.0	Acceptable
Auto Spot Welder	No Information	1	2.0	Acceptable

Testing Machinery:

Machine Name	Brand & Model No.	Quantity	Number of Year(s) Used	Condition
Battery Tester	BTS-2004	5	2.0	Acceptable
Capacity Testing Machine	5V 3A,60V 10A,100V 100A	6	2.0	Acceptable
Electronic Salt-Spray Tester	No Information	1	2.0	Acceptable
Battery Vibration Tester	No Information	1	2.0	Acceptable
Programmable Temp & Humid Tester	XMTB-8802	1	2.0	Acceptable
Protection Plate Automatic Tester	RPT-1000	6	2.0	Acceptable
