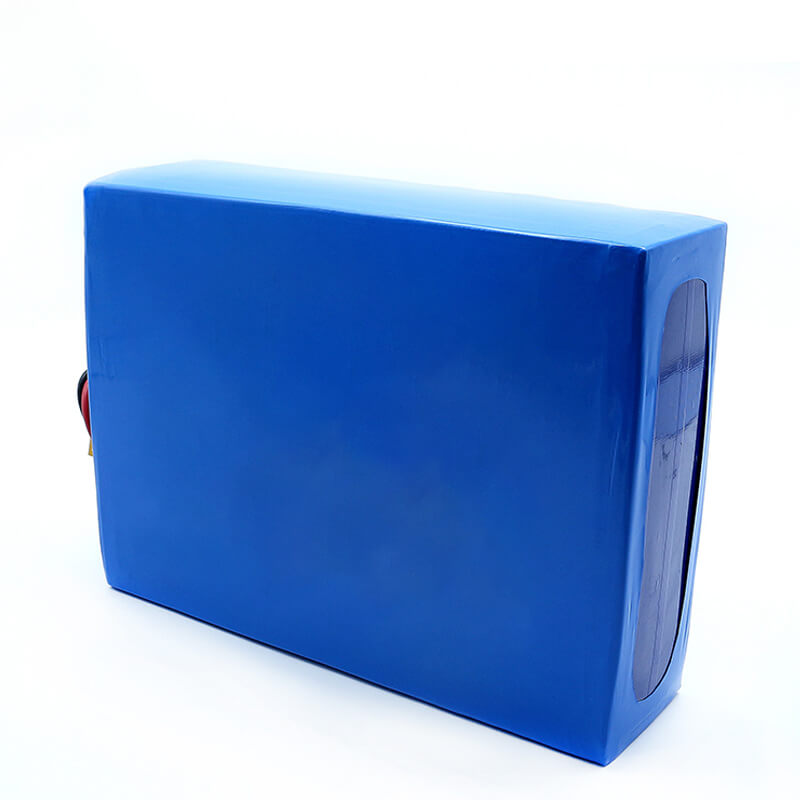

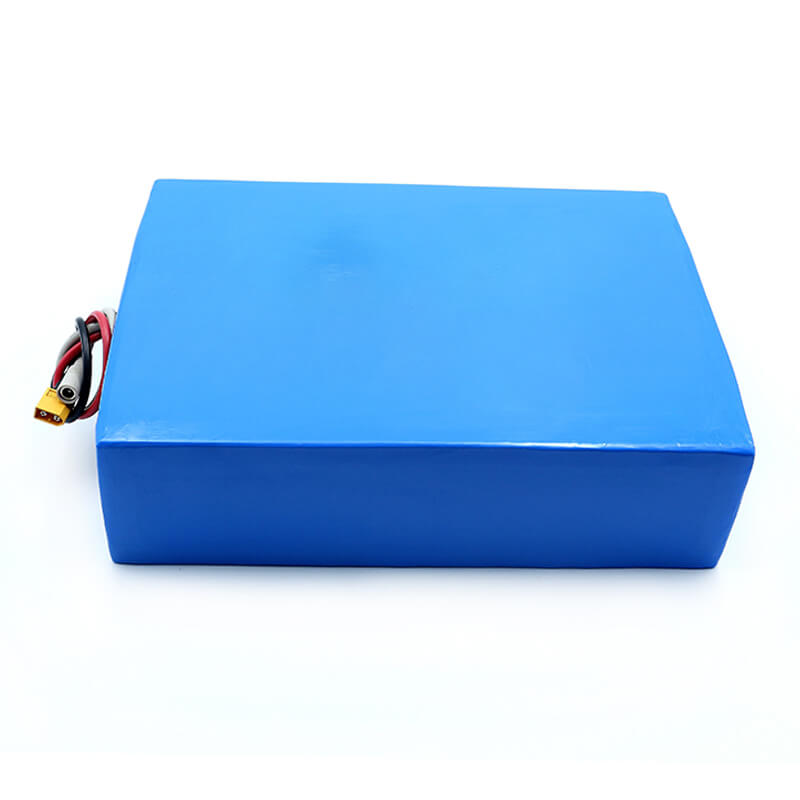

High quality 60v 40ah lithium ion battery electric bike battery

2021-10-13 06:32

Product ParametersThe capacity part of the current product parameters, click on the parameters and view the product description
Nominal voltage60V48V52V52V52V
Nominal capacity40Ah30Ah10Ah20Ah30Ah
Max charge voltage67.2V54.6V58.8V58.8V58.8V
Cut-off discharge voltage48V39V42V42V42V
Max.continuous discharge current15-30A15-30A15-30A15-30A15-30A
Peak current  (less than 10s)40A40A40A40A40A

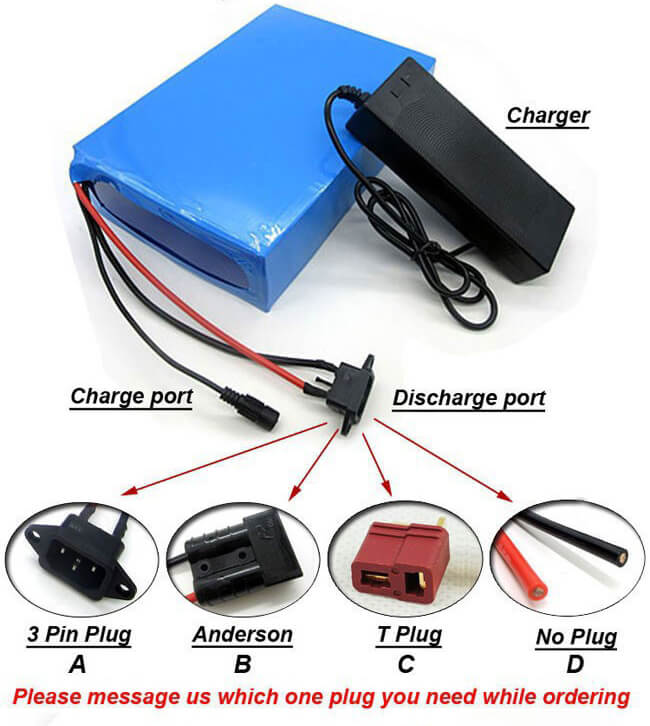

Charger67.2V 3A54.6V 3A58.8V 3A58.8V 3A58.8V 3A
Battery Weight13Kg6.5Kg3Kg6Kg7Kg
Warranty12 Months12 Months12 Months12 Months12 Months

Features

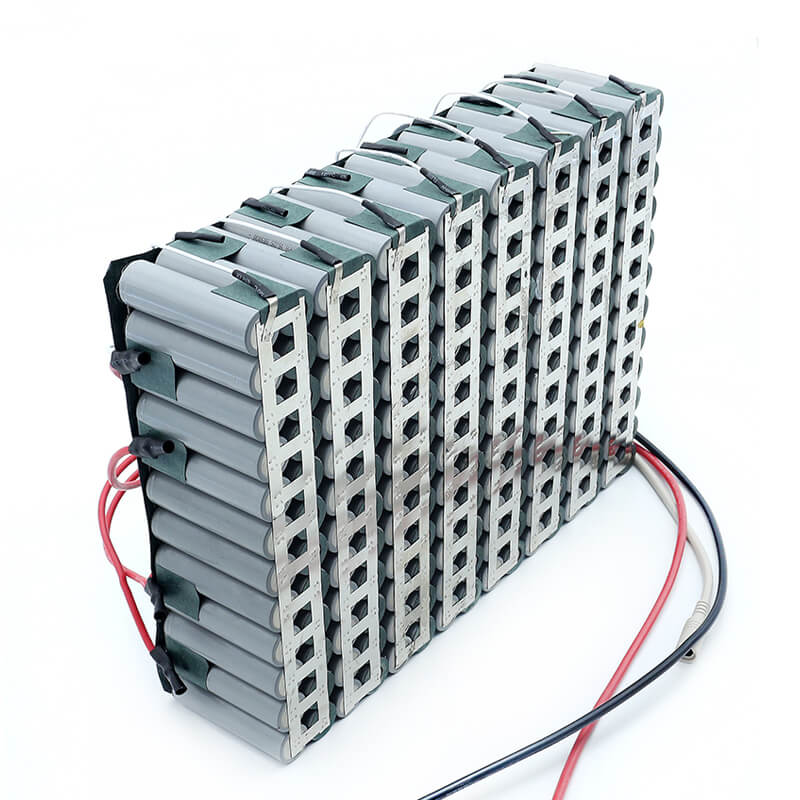

60V battery pack – Li(NiCoMn)O2 18650
High lifespan: About 500-800 cycles @ 100% DOD
Deep discharge allowed up to 100%
BMS Protection ( no thermal runaway, no fire or explosion risks)
Excellent temperature robustness(-20 °C up to +60°C)
Constant power during discharge( very low internal resistance)
Very low Peukert's losses( energy efficiency>96%)
Very low self-discharge(<3% per month)
No memory effect
About 50% lighter and 40% smaller than an equivalent Lead-AGM battery with same usable energy

Related Lithium Battery Packs

Application

Electric Propelling

♦ Engine Starting Battery
♦ E-car, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair, E-sweeper, Floor cleaner,
♦ Intellectual Robots
♦ Power tools: electric drills, toys
♦ 60V 2000W electric citycoco/motorcycle

Our Factory



Packing And Shipping

FAQ

Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q8.How about warranty?
A:1 year warranty.



Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!
