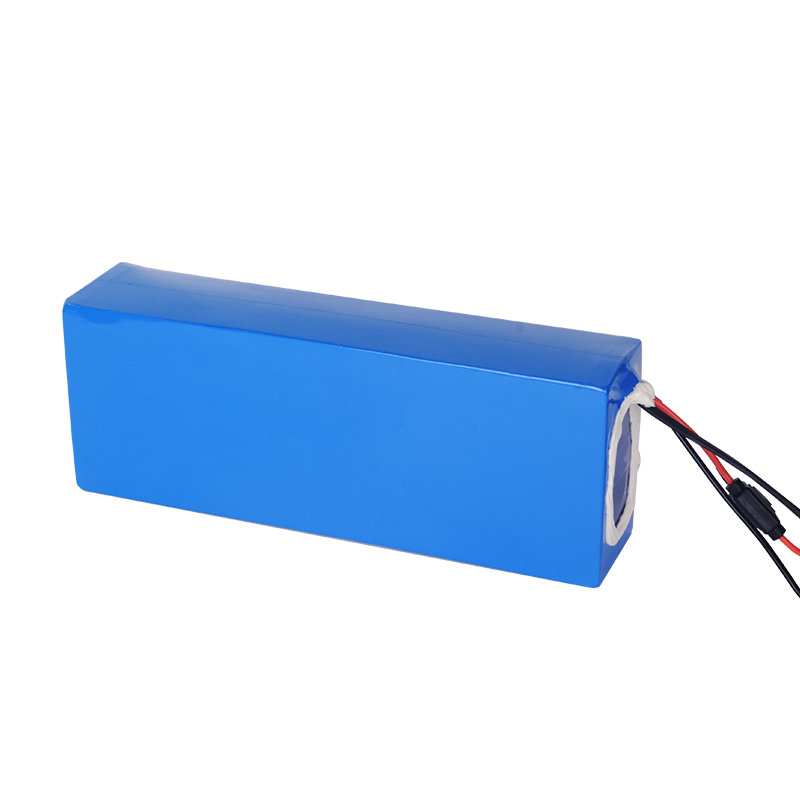

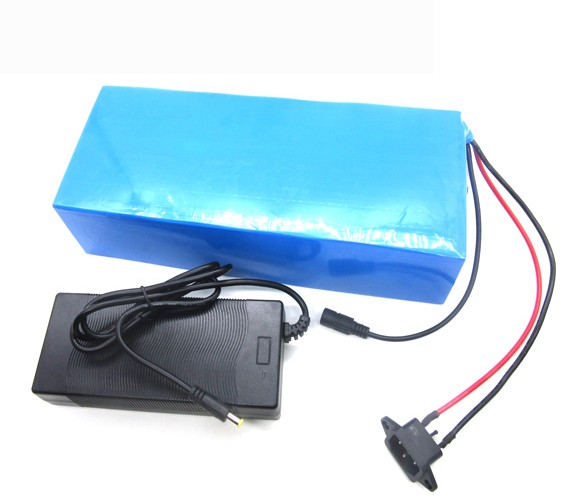

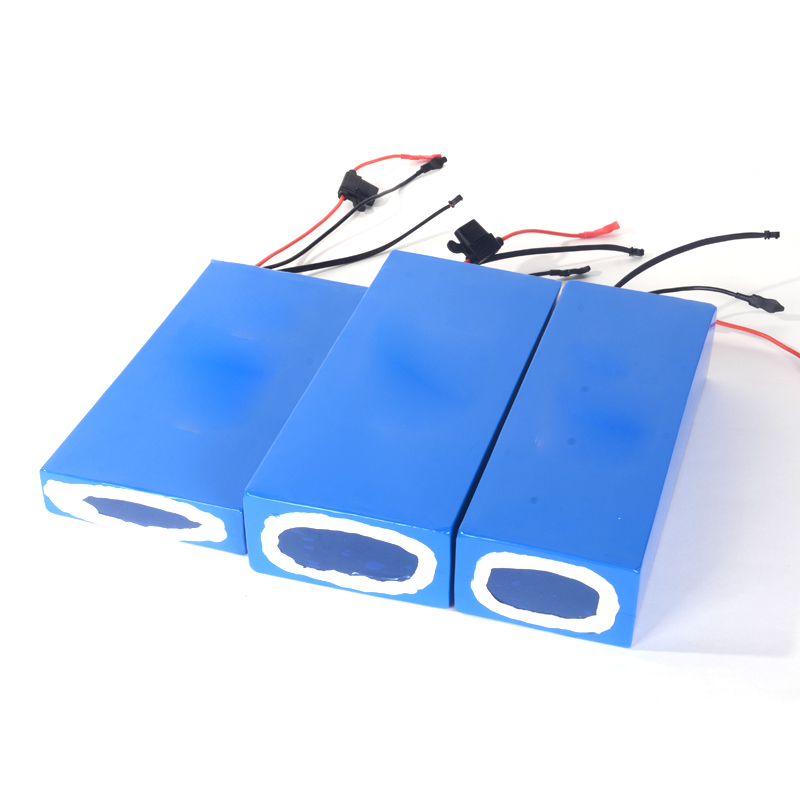

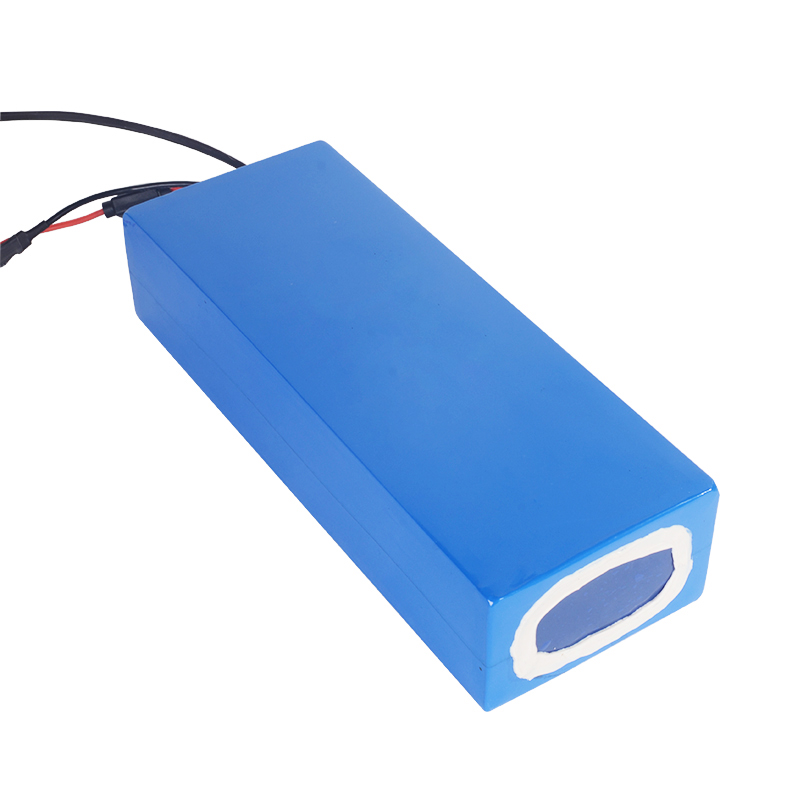

60 Volt Lithium Battery 60V 12Ah 20Ah 40Ah 50Ah Li Ion Battery Pack For Electric Scooter

2020-10-29 02:52

lithium battery cells pack:

Battery Model
60V 20Ah battery pack
Cell
18650 2500mAh
Nominal Capacity
20Ah
Nominal Power
1200Wh
Cell Combination
16S8P
Cell Quantity(Parallel*series)
128pcs
Over-charged Protection Voltage
4.25±0.025V/cell
Over-discharged Protection Voltage
2.50±0.10V/ cell
Rated Discharge Current(A)
15-30A
Instantaneous Maximum Discharge
50-70A
Charge Mode
CC CV
Standard Charge Current(A)
2A
Charge Time under Standard Charge
2-6H
Charge Temperature Range
-20~50℃
Battery Net Weight
6.4KGS
Size
flexible
Application
Electric Unicycles,e-bicycles,e-scooters
Cycle life
> 500 times
Warranty
1 year
Certificates
CE ROHS MSDS UN38.3
Packing
PVC Shrink Tube

PCM parameter:

Item Value
Over-charge Protection Voltage: 4.25±0.025v
Over-discharge protection Voltage: 2.5±0.05v
Short-circuit protection time: 12mS
Short-circuit protection current detection : 120A
Continuous operating current: 1-45A
PCM equalizer: Yes

We can provide you with customized services; The battery capacity and dimension can customize according to your request: We have the ability to provide a vertical supply chain, from single cells to pack/module and to a complete power solution with BMS. 12v-96v and 10ah-500ah lithium battery module.

Features

1. Safety: safest Li-Ion battery, PCB board protect, none fire, none explosive
2. Clean and Green energy, no toxic material contained
3. Long life cycle, > 500 times deep cycle,8 times of lead acid battery
4. No memory effect,highly efficient charge anytime, no reduction of capacity
5. Operation temperature: -20~70°C
6.Small size, light weight: 1/2 size of lead acid battery, 70% size of Ni-MH Ni Cd battery, 1/2 weight of lead acid battery
7. Good performance at high temperature and high temperature resistance
8. Low self-discharge rate: < 3% monthly

Applications

Recreational Vehicles
Marine
Commercial, Industrial and Trade
• Caravans
• Pop-tops
• Motorhomes
• Campervans
• Camper trailers
• Fifth Wheelers
• Converted buses
• Converted coaches
• Combi vans
• 4WDs
• Utes
• Motorised Golf carts
• Mobility Scooters
• Boats
• Cruisers
• Leisure Yachts
• Racing yachts
• Catamarans
• Trimarans
• Fishing vessels
• Houseboats
• Kayaks
• Tourist boats
• Passenger Ferries
• Emergency vehicles
• Refrigerated vans/trucks
• Prime movers
• Outdoor industrial equipment
• Trailer
• Trade utes and vans
• Rental motorhomes
• Mobile classrooms
• Gantry cranes
• Solar system
• Scooter

Related Lithium Batteries

Features:

A. Extremely safe and stable chemistry: PCB and/or BMS built inside to balance protect the battery.
B. Long life-cycle: Can be circularly used, best can up to 2000 times recycles, 8 times of Lead acid battery.
C. Lighter weight, with the best power-to-weight ratio: 1/3 of Lead acid battery weight.
D. Good performance at high temperature and high temperature resistance
E. Low self-discharge rate, less than 3% monthly.
F. No memory effects and highly efficient charge.
G. Environment friendly: Clean and Green energy poses no pollution on our environment.
