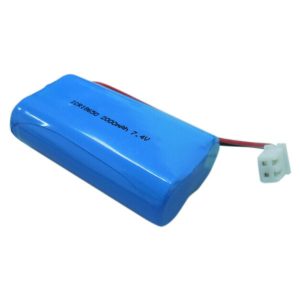

Lithium Battery 18650 2000mAH 7.4V

2020-08-11 09:21

18650 7.4V 2000mah li ion battery packs

Nominal Voltage7.4V
Nominal capacity2200mAh
Discharge cut-off voltage5.2V
Max. charge voltage8.5V
Max. constant working current2A
Peak Current3A
PCB boardIC
MOS
Working temperature-20ºC~55ºC
PackingPVC package
Certificate:CE, RoHS,N38.3
Protection FunctionsOver charge, Over discharge,  Over load, Short Circuit

The series of 7.4&V&8.4 V lithium ion batteries can be widely used in:

Solar street light, communication equipment, vehicle terminal, GPS locator, dresser, loudspeaker box, mobile lighting products, stage lights, LCR gravimeter, grass cutter, back-up source, detectoscope, ultrasound equipment, engineering detectors,...

Notice:

1.Do not overcharge or over-discharge batteries .It will decrease the batteries’ service life.
2.Do not short circuit, incinerate and disassemble batteries.
3.Do not impact the battery.
4.Do not drop of cause unnecessary shocks to the batteries
5.Do not carry loose batteries in a pocket or purse with metal objects like coins, paper clips etc.
6.Do not use inferior charger to recharge this battery in case of damaging the battery.
7.Do not put the battery in the charger too long.
8.Put it beyond the reach of children.

ALL IN ONE 18650 Series
Battery TypeCapacityDetailsNo. of Cell
Battery Cell1500mAh3.7V 1500mAh Single1PKS/1PCS
Battery Pack1500mAh7.4V 1500mAh 2S1P1PKS/2 PCS
Battery Pack1500mAh7.4V 3000mAh 2S2P1PKS/4 PCS
Battery Pack1500mAh11.1V 1500mAh 3S1P1PKS/3 PCS
Battery Pack1500mAh11.1V 3000mAh 3S2P1PKS/6 PCS
Battery Pack1500mAh14.8V 1500mAh 4S1P1PKS/4 PCS
Battery Pack1500mAh14.8V 3000mAh 4S2P1PKS/8 PCS
Battery Pack1500mAh22.2V 1500mAh 6S1P1PKS/6 PCS
Battery Pack1500mAh22.2V 3000mAh 6S2P1PKS/12 PCS
Battery Pack1500mAh25.9V 1500mAh 7S1P1PKS/7 PCS
Battery Pack1500mAh25.9V 3000mAh 7S2P1PKS/14 PCS
Battery Cell1800mAh3.7V 1800mAh  Single1PKS/1 PCS
Battery Pack1800mAh7.4V 1800mAh 2S1P1PKS/2 PCS
Battery Pack1800mAh7.4V 3600mAh 2S2P1PKS/4 PCS
Battery Pack1800mAh11.1V 1800mAh 3S1P1PKS/3 PCS
Battery Pack1800mAh11.1V 3600mAh 3S2P1PKS/6 PCS
Battery Pack1800mAh14.8V 1800mAh 4S1P1PKS/4 PCS
Battery Pack1800mAh14.8V 3600mAh 4S2P1PKS/8 PCS
Battery Pack1800mAh22.2V 1800mAh 6S1P1PKS/6 PCS
Battery Pack1800mAh22.2V 3600mAh 6S2P1PKS/12 PCS
Battery Pack1800mAh25.9V 1800mAh 7S1P1PKS/7 PCS
Battery Pack1800mAh25.9V 3600mAh 7S2P1PKS/14 PCS
Battery Cell2000mAh3.7V 2000mAh  Single1PKS/1 PCS
Battery Pack2000mAh7.4V 2000mAh 2S1P1PKS/2 PCS
Battery Pack2000mAh7.4V 4000mAh 2S2P1PKS/4 PCS
Battery Pack2000mAh11.1V 2000mAh 3S1P1PKS/3 PCS
Battery Pack2000mAh11.1V 4000mAh 3S2P1PKS/6 PCS
Battery Pack2000mAh14.8V 2000mAh 4S1P1PKS/4 PCS
Battery Pack2000mAh14.8V 4000mAh 4S2P1PKS/8 PCS
Battery Pack2000mAh22.2V 2000mAh 6S1P1PKS/6 PCS
Battery Pack2000mAh22.2V 4000mAh 6S2P1PKS/12 PCS
Battery Pack2000mAh25.9V 2000mAh 7S1P1PKS/7 PCS
Battery Pack2000mAh25.9V 4000mAh 7S2P1PKS/14 PCS
Battery Cell2200mAh3.7V 2200mAh Single1PKS/1 PCS
Battery Pack2200mAh7.4V 2200mAh 2S1P1PKS/2 PCS
Battery Pack2200mAh7.4V 4400mAh 2S2P1PKS/4 PCS
Battery Pack2200mAh11.1V 2200mAh 3S1P1PKS/3 PCS
Battery Pack2200mAh11.1V 4400mAh 3S2P1PKS/6 PCS
Battery Pack2200mAh14.8V 2200mAh 4S1P1PKS/4 PCS
Battery Pack2200mAh14.8V 4400mAh 4S2P1PKS/8 PCS
Battery Pack2200mAh22.2V 2200mAh 6S1P1PKS/6 PCS
Battery Pack2200mAh22.2V 4400mAh 6S2P1PKS/12 PCS
Battery Pack2200mAh25.9V 2200mAh 7S1P1PKS/7 PCS
Battery Pack2200mAh25.9V 4400mAh 7S2P1PKS/14 PCS
Battery Cell2400mAh3.7V 2400mAh Single1PKS/1 PCS
Battery Pack2400mAh7.4V 2400mAh 2S1P1PKS/2 PCS
Battery Pack2400mAh7.4V 4800mAh 2S2P1PKS/4 PCS
Battery Pack2400mAh11.1V 2400mAh 3S1P1PKS/3 PCS
Battery Pack2400mAh11.1V 4800mAh 3S2P1PKS/6 PCS
Battery Pack2400mAh14.8V 2400mAh 4S1P1PKS/4 PCS
Battery Pack2400mAh14.8V 4800mAh 4S2P1PKS/8 PCS
Battery Pack2400mAh22.2V 2400mAh 6S1P1PKS/6 PCS
Battery Pack2400mAh22.2V 4800mAh 6S2P1PKS/12 PCS
Battery Pack2400mAh25.9V 2400mAh 7S1P1PKS/7 PCS
Battery Pack2400mAh25.9V 4800mAh 7S2P1PKS/14 PCS
Battery Cell2600mAh3.7V 2600mAh Single1PKS/1 PCS
Battery Pack2600mAh7.4V 2600mAh 2S1P1PKS/2 PCS
Battery Pack2600mAh7.4V 5200mAh 2S2P1PKS/4 PCS
Battery Pack2600mAh11.1V 2600mAh 3S1P1PKS/3 PCS
Battery Pack2600mAh11.1V 5200mAh 3S2P1PKS/6 PCS
Battery Pack2600mAh14.8V 2600mAh 4S1P1PKS/4 PCS
Battery Pack2600mAh14.8V 5200mAh 4S2P1PKS/8 PCS
Battery Pack2600mAh22.2V 2600mAh 6S1P1PKS/6 PCS
Battery Pack2600mAh22.2V 5200mAh 6S2P1PKS/12 PCS
Battery Pack2600mAh25.9V 2600mAh 7S1P1PKS/7 PCS
Battery Pack2600mAh25.9V 5200mAh 7S2P1PKS/14 PCS
Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!
