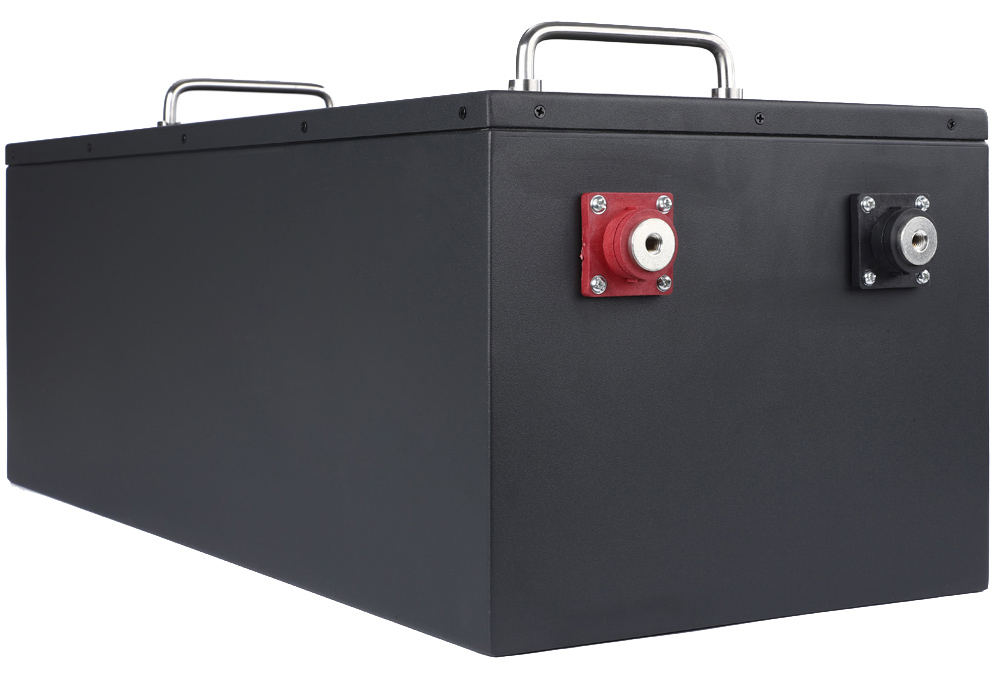

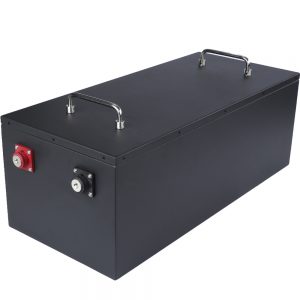

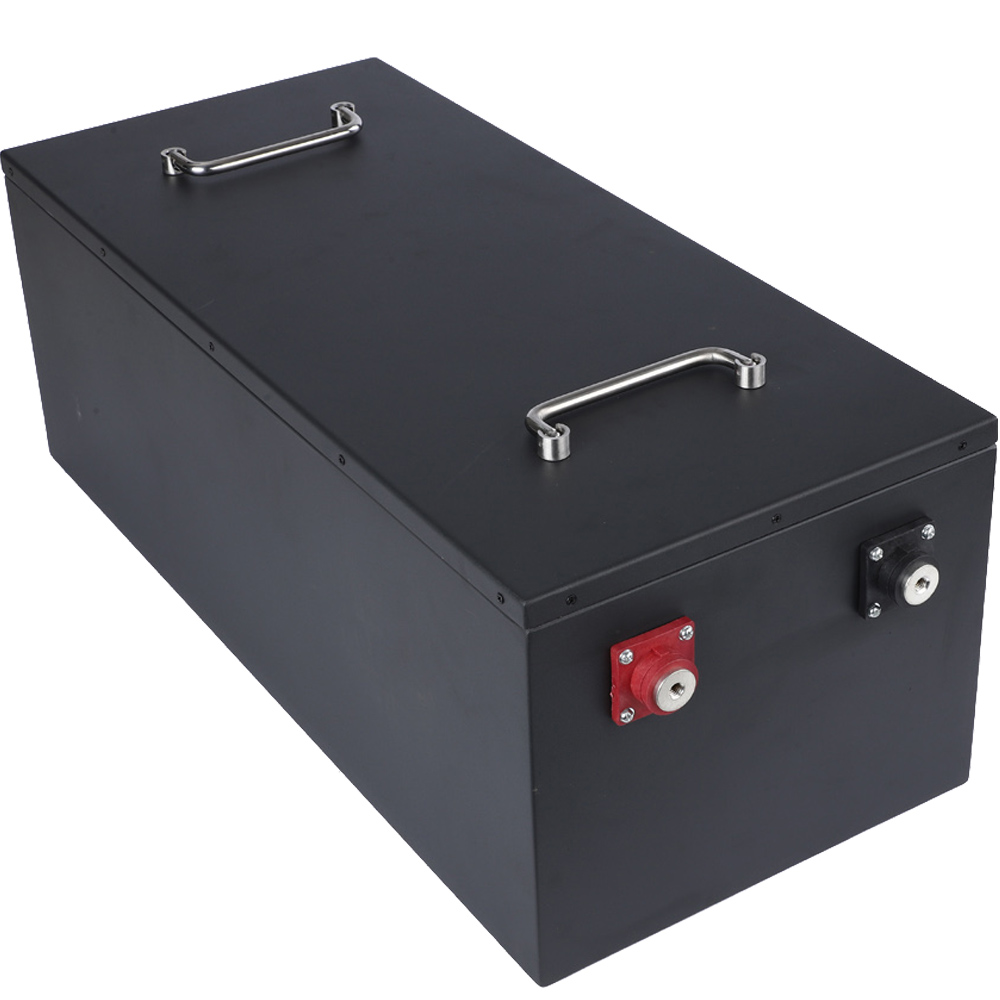

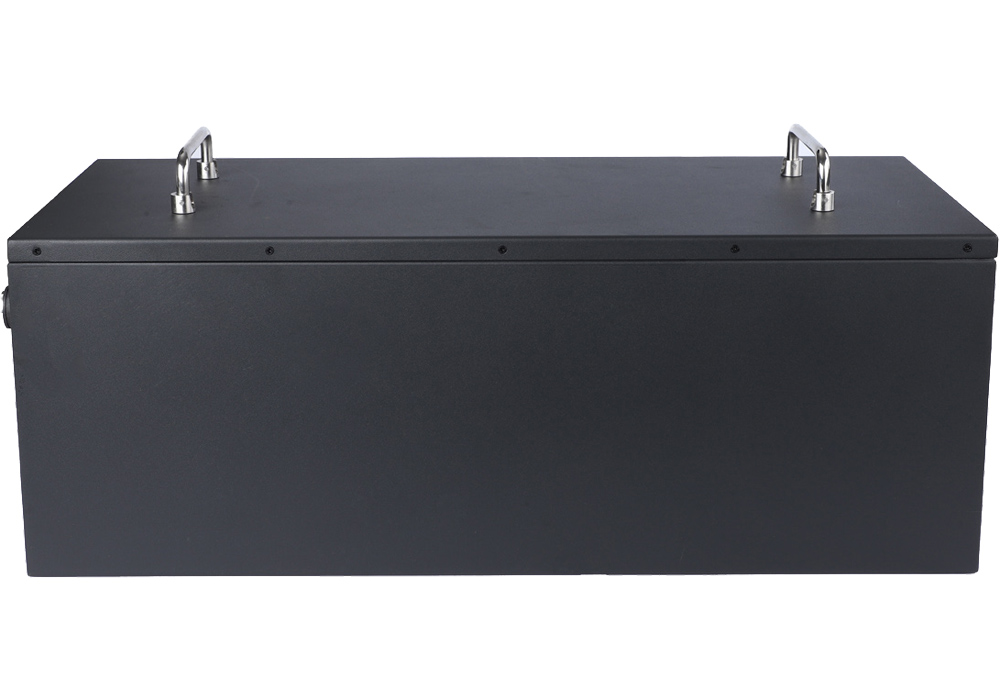

Deep Cycle 36V Battery Pack 12S1P LFP Lithium ion 36V Battery Pack Rickshaw EV RV AGV E-bike Lifepo4 36V 100Ah Batterie

2021-02-05 02:13

Product Paramenters

Battery Pack	Specification		Remark
	Model No.	AIN36100	/
	Battery Type	36V LiFEPO4 battery	/
	Nominal Voltage	36V / 38.4Volt	customizable Voltage
	Charge Cut-off (BMS protection)	45volt±0.35volt	/
	Discharge Cut-off (BMS protection)	27.6volt±1.2volt	/
	Standard / Nominal Capacity	105Ah	customizable
	Approx. Weight	29kg	/
	Pack Type	12S1P	customizable
	Reserve Minutes @0.2C 25℃ /	300minutes	/
	Working Voltage	27.6volt~43.8volt	customizable
	Peak discharge current	300A±25A within 5second	customizable
	Impedance	≤10mΩ	/
	Built-in Cell Model	Prismatic @ 100Ah/50Ah/300Ah	customizable
	Charge Temperature	32(℉)~122(℉)	/
	Discharge Temperature	-4(℉)~140(℉)	/
	Cycle life	4000cycle (80%DOD)	/
	Max Cont. discharge current	100A	customizable
	Charge Method	CC/CV	customizable
	Built-in BMS system	Yes	/
	BMS Protection Type	Over-Charge, Over-Dishcarge, Over-Voltage, Over-Current, Short-Circuit, Auto-reset	/
	BMS Balance Type	Active Auto-Balancing	/
	Dimensions	532217cm	customizable
	Connection Type	Modular Pack welding or laser spot welding	/
BMS	Balanced Current ( BMS )	20~30mA	/
	Balanced voltage	3.6volt	/
	Over Charge Protection	3.75±0.0.3v / cell	/
	Release Voltage for overcharge	3.60±0.05v	/
	Rated Charge Current Protection	100A	customizable
	Detection delay (over-Charge)	1000mS	/
	Short circuit trigger condition	external load short circuit	/
	Detection delay (short-circuit)	200uS	/
	Over-Discharge Cut-Off Voltage	2.1V±0.1V / cell	/
	Over-Discharge Release Voltage	2.3V±0.1v	/
	Discharge protection current	300 (10mS)	/
	Rated Discharge Current	≤100A	customizable
	Release condition (short circuit & over discharge)	Disconnect Load & Charge Activation	/
	Detection delay (over-discharge )	1000mS	/
	Communication interface	Bluehost / RS485 / RS232 GPS protocol port for Choice	customizable
	Temperature control protection	Discharge protection: 167 (℉)±40 (℉)	/
	Working Temperature	-4(℉) ~ 176(℉)	/
	Over Heat Temperature Protection（Charge&Dishcarge)	167(℉)±41(℉)	/
	High temperature release value（Charge&Dishcarge)	127.4(℉)	/
LED Indicator	Display Value	Voltage / Capacity percent / Work Temperature	customizable
Certificate		CE, MSDS, CB-SG, UN38, UL1642	customizable
Outside Battery Box	Outside Protection Box	Stainless steel outer box	Available ABS BOX Series
Outside Battery Box	IP Level	IP65	customizable
Aging	Lead time	5-15days normally	rely on the order quantity
Aging	Shipment Time	7-12days by express, 15~35days by Air, sea and rail transportation	/
Quality Assurance	Warranty	3 year / 36 months	/

Product advantages

◆ Preferred supply high-quality batteries, Exceptional voltage stability

◆ >4000 Cycles at 80% depth of discharge to ensure long cycle life

◆ Rugged mechanical design with Modular design or laser spot welding to group

◆ Suitable for high-power power products

◆ Automatic system cell Charging balancing, Maintenance-free & No hydrogen generation or gassing

◆ Direct replacement for lead-acid batteries, <70% the weight of similarly sized SLA batteries

◆ Support fast charging & 100% deep cycle

◆ High discharge rate, sustainable discharge 300A @ 3~5 second

◆ Low power consumption design, long time standby

◆ Smart LCD Auto-Display Module for Capacity Rate and Voltage / Temperature display

◆ BMS powerful intelligent protection function and automatic short circuit & activation protection function

◆ IP56 water and dust resistant Group 31 case

◆ Stainless steel outer box-compression resistant, shock resistant, durable

◆ Environmentally friendly design and quality assurance in compliance with RoHS MSDS UN38 UL CB requirements

◆ Stock / Customize available for quick delivery in the US /UK / DE / FR or worldwide

Applications

1) Energy Storage: UPS, backup, power station.

2) EV: Golf trolleys, Electric scooters.

3) Solar Energy Storage Systems, Wind Energy Storage,Solar/Storage Home System, Solar Street Light.

4) Telecommunications Base Stations.

5) Marine Boat.

6) UPS (Uninterrupted Power Supply).

7) General Energy Storage (Such as Back-up Power, Miner's lamp, portable power supply, digital products, etc.)

Related LFP Batteries

Our Factory

Packing And Shipping

FAQ

Q1: Are you a factory?
A1: Yes, we are the original factory, specializing in NiMH battery and lithium battery for more than 10 years.

Q2: Can I place a sample order?
A2: Yes, we accept sample order to test and check the quality, battery can be made as required.

Q3: Do you have MOQ?
A3: No limited, but the more you order, the better price you will get.

Q4: What is your delivery date?
A4: Usually 3-5 weeks after payment confirmed subject to exact order quantity.

Q5: Which shipping method you usually take?
A5: Generally, small volume via express or air. Bulk order quantity via sea.

Q6: What kind of packing you provide?
A6: Standard export carton or wooden case according to battery size and weight, the package will be strong enough for long-distance transport.

We sincerely look forward to establishing long term cooperation relationship with you, if you have any questions, please do not hesitate to contact us!

Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!
