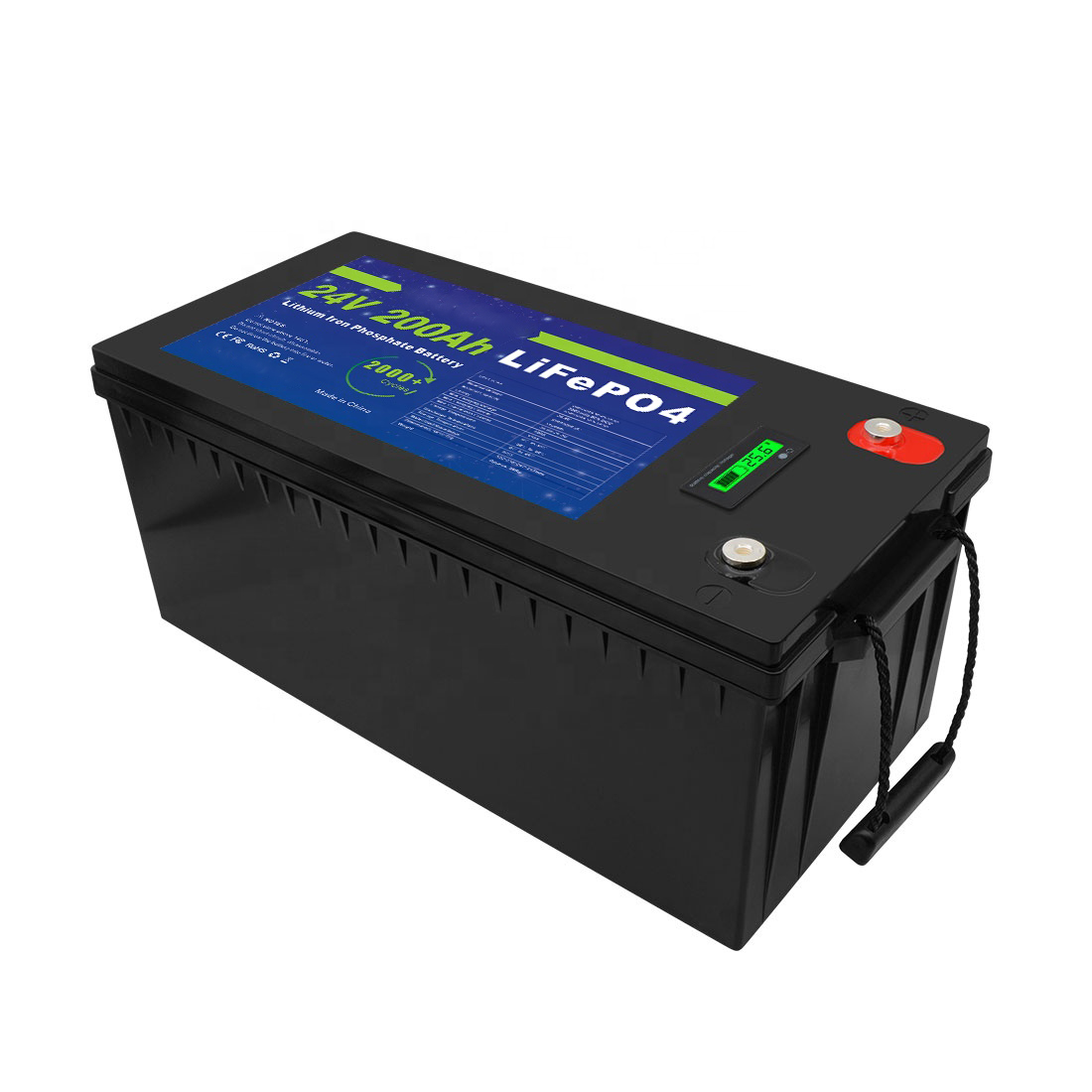

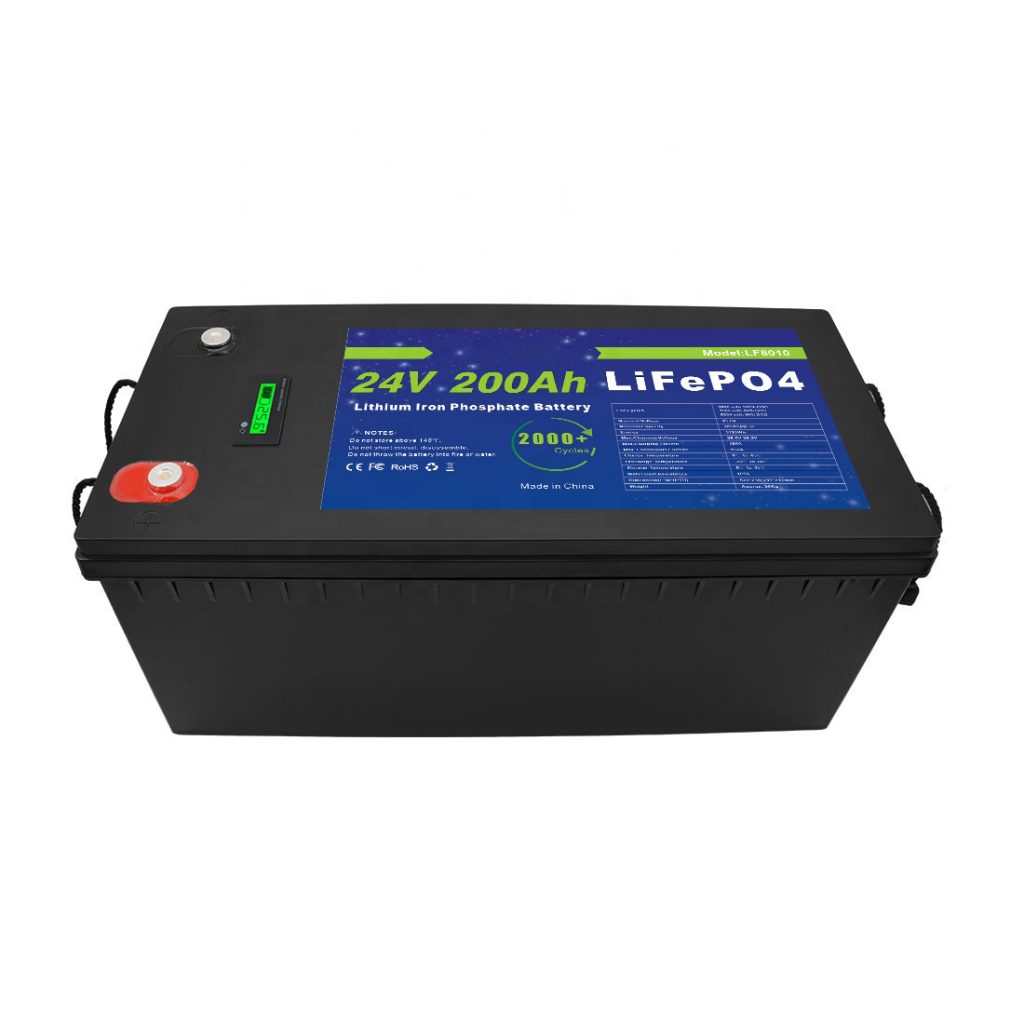

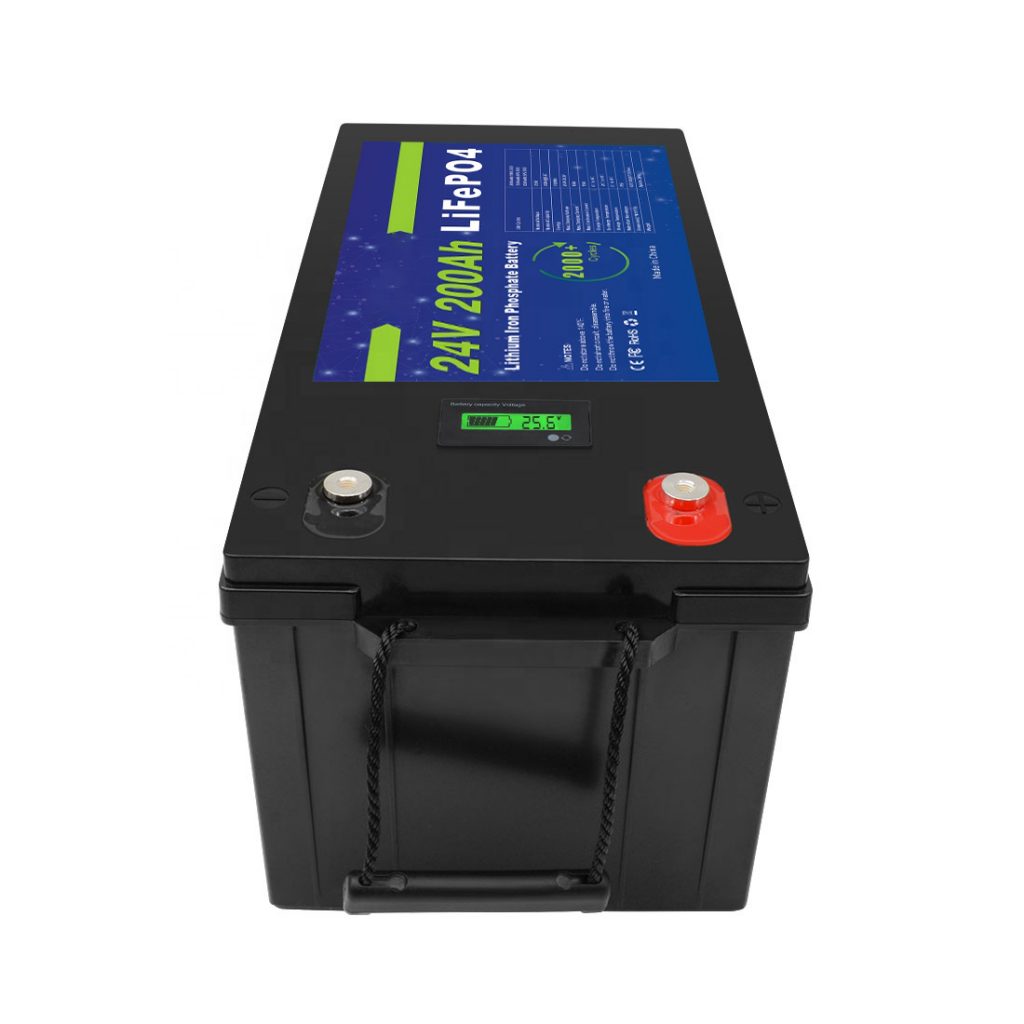

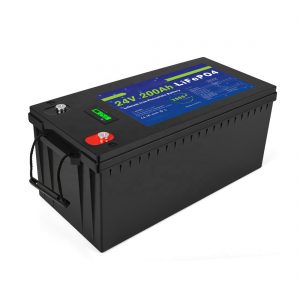

Super Quality Deep Cycle Lifepo4 24v 200Ah High Safety Lithium ion Battery for Home Solar System

2021-06-17 02:32

Specification

Electrical Characteristics	Nominal Voltage	24V
	Nominal Capacity	[email protected]
	Energy	5120Wh
	Internal Resistance	≤35mΩ
	Cycle Life	2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
	Self Discharge	≤3.5% per month at 25℃
Standard Charging	Max.Charging Voltage	14.0~14.6V
	Charging Mode	At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and then,changed continuously with constant voltage of 14.6V until the current was not more than 0.02C
	Charging Current	100A
	Max.Charging Current	150A
Standard Discharging	Discharging Current	100A
	Max. Continuous Current	150A
	Max.Pulse Current	250A(<100mS）
	Discharging Cut-off Voltage	20.0
Operating Condition	Charge Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
	Discharge Temperature	-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
	Storage Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
	Water Dust Resistance	IP55
Structure	Cell & Format	200Ah,8S1P
	Casing	Plastic
	Dimension(LWH*TH)	522238217*217
	Weight	Approx.36Kg
	Terminal	M8

Product Advantage

◆ Using the technology of lithium iron phosphate cell, superior safety, thousands of cycles, 100%DOD, under normal conditions.

◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.

◆ Free of maintenance .

◆ Internal cell balancing.

◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.

◆ Can be charged using most standard lead-acid charges (set).

◆ Wider temperature range:-20℃~60℃.

◆ Support for Series application expansion (up to 51.2V) and two in parallels.

Application

Our Factory

FAQ

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit?

A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order?

A. Firstly let us know your requirements or application.

Secondly, We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7.Which certificates do you have?

A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q8.How about warranty?

A:3 year warranty.
