Cheap Deep Cycle 6V 6Ah LiFePO4 Lithium Battery for Solar Energy Storage Systems

2021-06-21 06:56

Products Description

Electrical Characteristics	Nominal Voltage	6.4V
	Nominal Capacity	[email protected]
	Energy	38.4Wh
	Internal Resistance	≤80mΩ

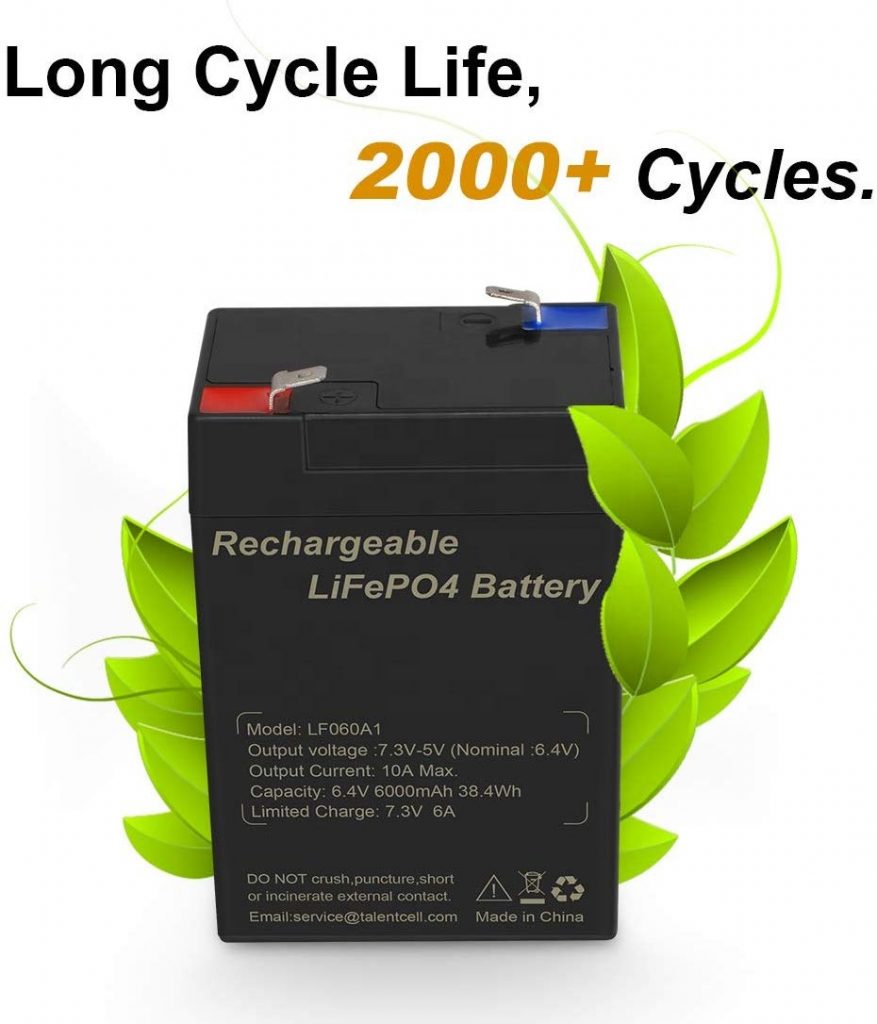

	Cycle Life	>2000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity.
	Months Self Discharge	≤3.5% per month at 25
Standard Charge	Charge Voltage	7.3±0.2V
	Charge Mode CC/CV	At 0℃~45℃ temperature, charged to 7.3V at a constant current of 0.2C, and then,changed continuously with constant voltage of 7.3V until the current was not more than 0.02C.
	Charger Current	1.2A
	Max.Charge Current	3A
Standard Discharge	Discharge Current	1.2A
	Max. Continuous Current	10A
	Max.Pulse Current	20A(<3S）
	Disxcharge Cut-off Voltage	5.0V
Environmental	Charge Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
	Disxcharge Temperature	-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
	Storage Temperature	0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
	Water Dust Resistance	IP55
Mechanical	Cell & Method	IFR32700 ,2S1P
	Plastic Case	ABS

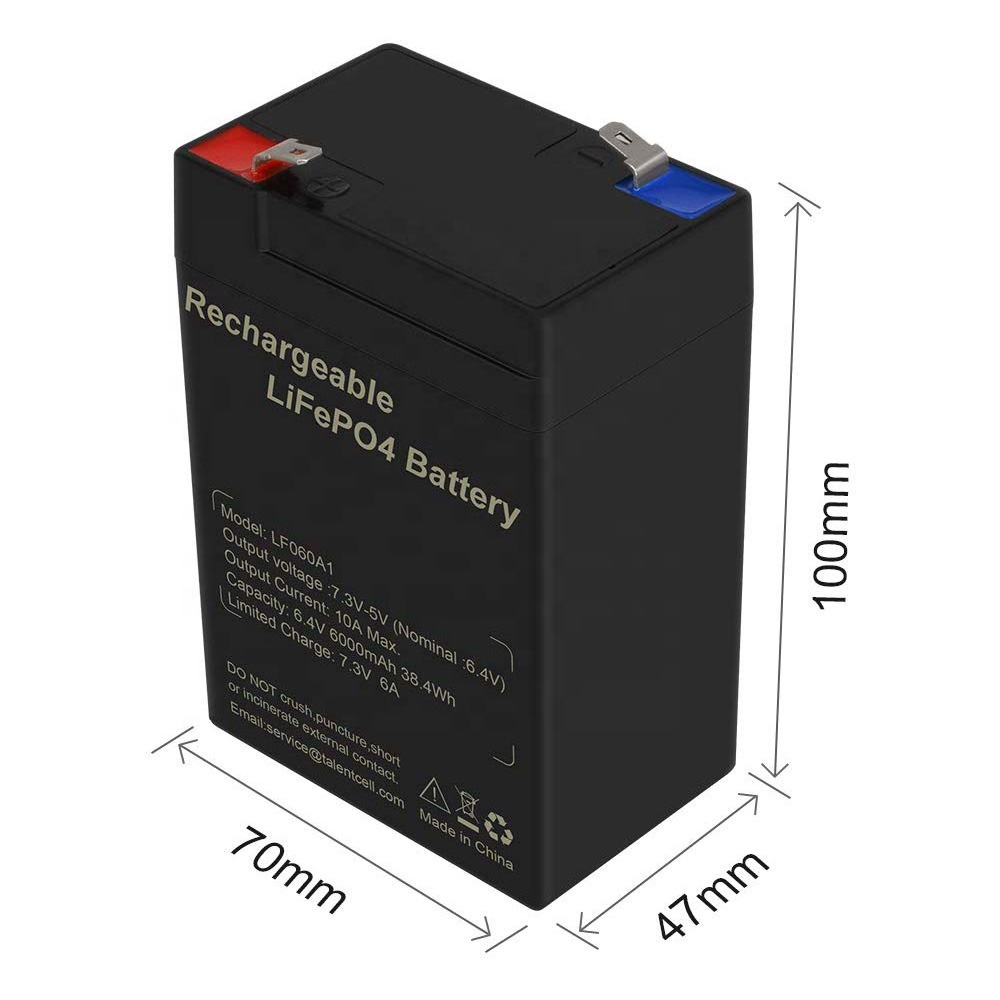

	Dimension(LWH*TH)	7047102*105mm
	Weight	Approx. 0.4Kg
	Terminal	F2

Our Advantages

◆ Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles, 100%DOD, under normal conditions.

◆ Built-in automatic protection for over-charge, over discharge, over current and over temperature.

◆ Free of maintenance .

◆ Internal cell balancing.

◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.

◆ Can be charged using most standard lead-acid charges (set).

◆ Wider temperature range:-20℃~60℃.

Application

FAQ

Q1. Can I have a sample order?

A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit?

A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order?

A. Firstly let us know your requirements or application.

Secondly, We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places a deposit for formal order.

Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?

A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7.Which certificates do you have?

A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q8.How about warranty?
