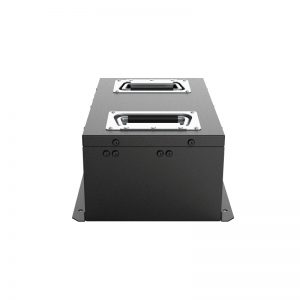

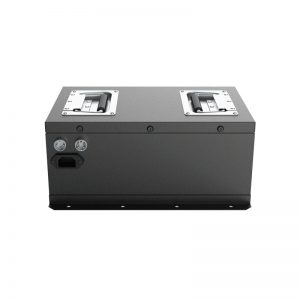

26650 25.6V 19.2Ah LiFePO4 Storage Battery for Backup Power of Medical Device

2020-08-25 06:27

26650 25.6V 19.2Ah LiFePO4 Storage Battery for Backup Power of Medical Device

• Model number:AIN25/6-20
• Nominal voltage:25.6V
• Nominal capacity:19200mAh
• Battery cell:26650/3.2V/3.2Ah
• Dimension:300*190*130 mm（Max）
• Application: medical device

Product Detail

Product number: 40DZ002-01A

Cell model：26650/3.2V/3.2Ah

Battery specification: 8S6P/25.6V/19.2Ah

Nominal voltage：25.6V

Nominal capacity：19.2Ah

Charging voltage: 100-245VAC 50HZ/60HZ

Charging current: ≤5A

Discharging current: 15A

Instant discharging current: 60A

End-off voltage: 16V

Internal resistance: ≤150mΩ

Battery weight: 7.5Kg

Product dimension: 300*190*130 mm（Max）

Charging temperature：0～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20～45 ℃

Temperature protection: 70℃±5℃

Battery case: metal plate housing

Waterproof grade: IP65

Communication management: 485 MOSBUS protocol

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, equilibrium, Reverse connection protection, etc.

Application field: medical device

Product features

Small self-discharge.

The battery has temperature protection.

It has 485 communication.

Charge 220V AC input charging.

IP65 waterproof and dustproof.

It can pass IEC62133 UN38.3 certificate.

The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
