Solar Deep Cycle 24v 48v 24ah Lifepo4 Battery Pack UPS 12v 24ah Battery

2021-01-21 01:21

Electrical CharacteristicsNominal Voltage12.8V
Nominal Capacity[email protected]
Energy307.2Wh
Internal Resistance=60MO
Cycle Life2000 [email protected] Charging/Discharging until 70% Capacity
Self Discharge=3.5% per month at 25℃
Standard ChargingMax Charging Voltage14.0~14.6V
Charging ModeAt 0℃~45℃temperature, charged to 14.6V at a constant current of 0.2℃, and then charged continuously with constant voltahe of 14.6V until the current was not more than 0.02C
Charging Current12A
Max Charging Current20A
Standard DischargingDischarging Current12A
Max Continuous Current20A(<3S)
Max Pulse Current40A(<3S)
Discharging Cut-off Voltage10.0
Operating ConditionCharge Temperature0℃to 45℃@ 60+/-25% Relative Humidity
Discharge Temperature-20℃ to 45℃ @60+/-25% Relative Humidity
Storage Temperature0℃ to 45℃ @60+/-25% Relative Humidity
Water ResistanceIP55
StructureCell&FormatIFP 32700 N60,4S2P
CasingPlastic

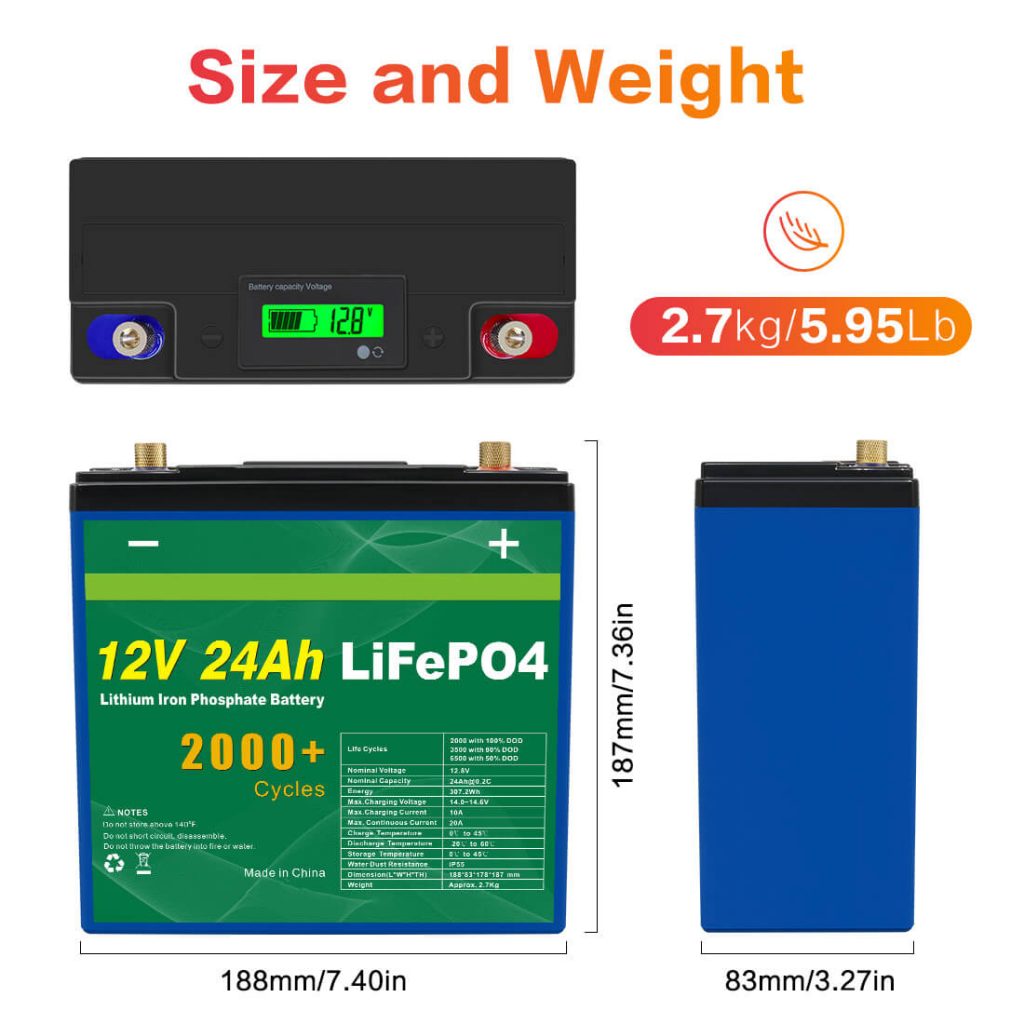

Dimension188*83*178*187
WeightApprox 2.7kg
TerminalM5

Features of LiFePO4 battery

  • Longer Cycle Life: Offers up to 20times longer cycle life and five times longer float /calendar life than lead acid battery.
  • Lighter Weight: About 40% of the weight of a comparable lead acid battery. A 'drop in' replacement for lead acid batteries.
  • Higher Power: Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity.
  • Superior Safety: Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
  • Increased Flexibility: Modular Design enables deployment of up to up to ten battery in parallel.
NOTES
Do not use the 12V lithium battery pack in places with high humidity or where it may be exposed to wet.
Do not modify or disassemble the power bank.
Do not throw the 12V power bank into fire or water. Do not reverse the polarity of the battery pack.
Chart
Application
* UPS * Solar &Wind Power System * Golf Cart * Electric Vehicle , E-bike, E-rickshaw etc. * Lighting
Our Factory

 Packing And Shipping
FAQ

Q1: Can you accept OEM and ODM service?
A: Yes, it’s available.
Q2: Can I have a sample order for battery?
A: Yes, we welcome sample order to test and check quality.
Q3: Do you have any MOQ limit for battery?
A: Depends on different models.For the very regular models,the MOQ is low.
Q4: Are you a factory or trading company?
A: We are a factory and trading, an integrated company.
Q5: What's the payment term?
A: We accept T/T, 30% deposit & 70% balance payment before shipping, and Western Union.
Q6: When can I get the price?
A: Our sales will quote to you within 8 hours exclude public holiday.
Q7: How about the shipment?
A: We can ship the goods by air, by sea or by express.

Note: All products do not support retail, please contact us for product prices!
