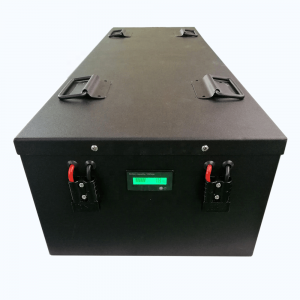

LiFePO4 Prismatic Battery 96V 100AH

2020-08-11 01:21

Nominal voltage	96V
Charge voltage	109.6V
Nominal capacity	100Ah
Battery cell	3.2V 100Ah LifePO4 cell
Battery configation	30S 1P,  Lithium iron phosphate lifepo4 prismatic  battery pack  96v 100ah  , 30s BMS 100A
Internal resistance	≤420mΩ
End of charge voltage	114V
End of charge current	100mA
End of discharge voltage	75V
Charge method	CC/CV
Max continuous charge current	Standard 20A, OEM 25A, 40AH,50A, 100A
Max continuous discharge current	OEM 20A, 25A, 50A, 100A ETC
Max pulse discharge current	300A/10s max
Weight	100KG
Case material	metal casing HOUSE
Case dimension	880*365*220mm
BMS protection	30S bms 25A, Can OEM 50A,  100A ,  over-charge,over-discharge,over-current,short circuit
Charge temperature	0~45℃
Discharge temperature	-20~ 60℃
Storage temperature	-10~45℃
Life cycle	2000 times
Warranty	2 years

Cell Specification

Prismatic punch 3.2v 100Ah battery cell :

48176133/100A   48*176*133mm/pcs

80% dod 2000 times cycle

65% dod 5000 times cycle

40% dod 8000 times cycle

Related LiFePO4 Batteries

Advantages

1)Environmental friendly.
2) High temperature performance,the maximum working temperature can be 70℃
3) High capacity.
4) Fast charging.
5) Safety in use.
6) Long cycle life, chargeable up to 2000 times.
7) No memory effect.
8) Doesn’t contain Mercury, No fire, No explosion, No leakage.
9)  High temperature resistance.
10) Stable discharge platform , it is can support large current  and high power to charging and discharging.

11)With Anderson connector for charge and discharge port
12)With display screen which can show the voltage and remaining power
