lifepo4 battery 48v battery pack 16s10p 48v 60Ah 100Ah

2020-11-24 08:00

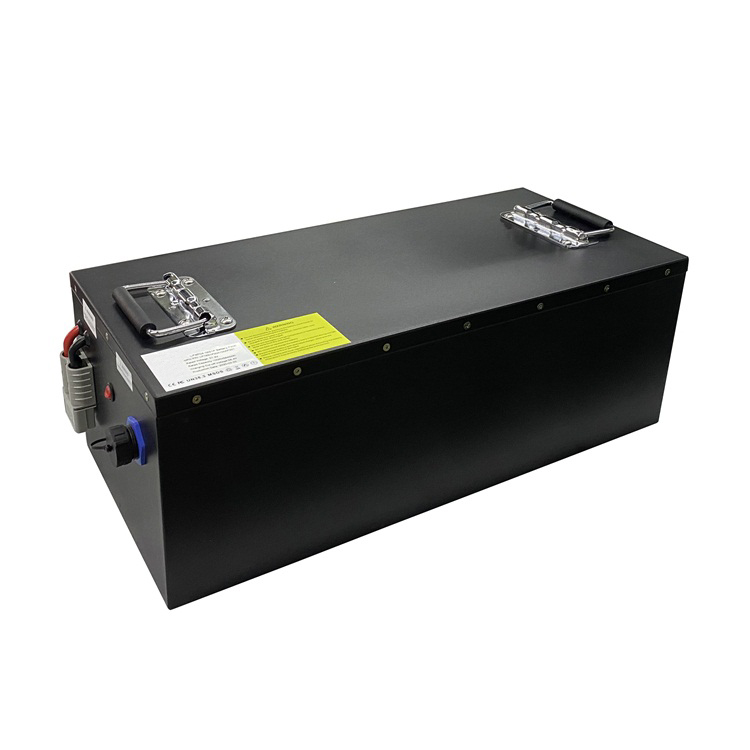

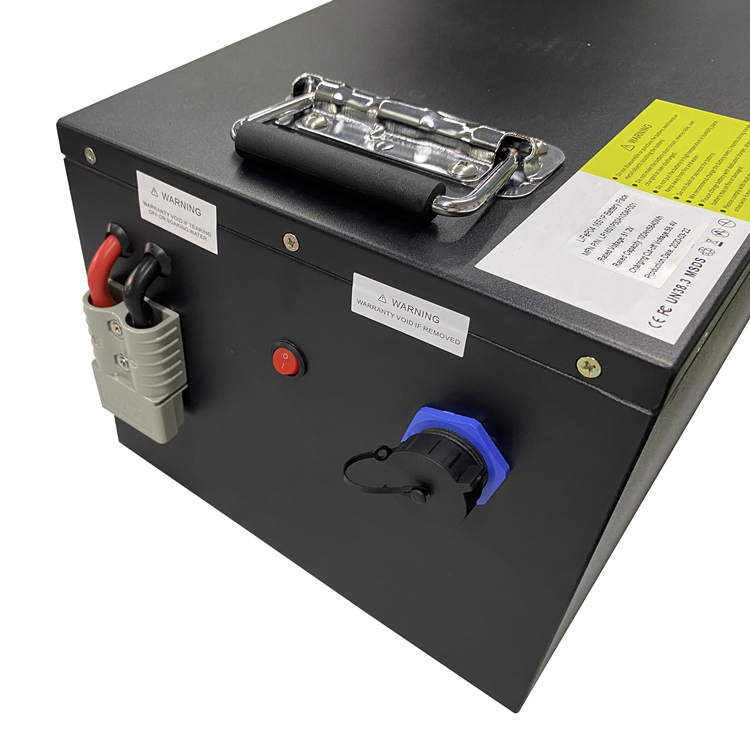

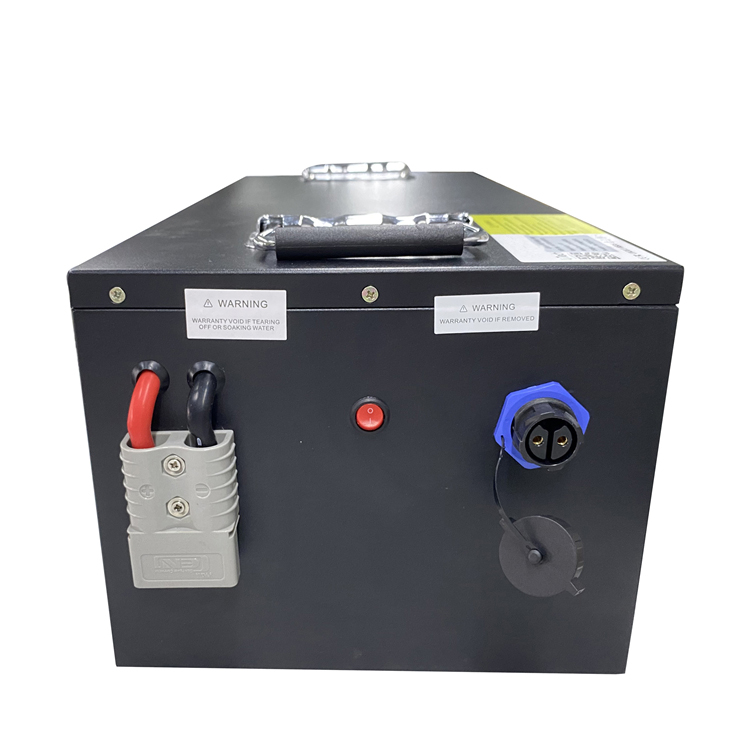

48v 60ah battery packs are Lithium iron phosphate rechargeable battery packs with battery management system intergrated, normal voltage at 48v, rated capacity at 60Ah, with 15cm long 10AWG open wires for charge and discharge (it comes with bare leads in default but connector can be customized accordingly). It is mainly used on electric tools, electric toys, electric bikes, electric scooters, electric boats and so on.

Voltage Range58.4v-35.2v
CapacityNominal Capacity:60Ah
Minimum Capacity:59Ah
Charge Cut-off Voltage58.4v
Discharge Cut-off Voltage35.2v
Continuous Discharge Current60A
Discharge Peak Current90A
Charge Current10A
Cycle Life≥ 2000 cycles, DOD 100% @ rated current and temp.
Weight24kg around
DimensionTBD
Operation Temp.Discharge at -20°C ~ 60°C & Charge at 0°C ~ 45°C
Communication ProtocolIndependent choice

Why Choose US

1.Develop customized BMS for your project in house,

2. Use high- quality battery cell, with strictly QC control,

3. All safety testings carries on in incoming materials and outgoing goods,

4. 100% one by one testing and again spot-testing from OQC before shipping out,

5. With German high standard quality control system but at pretty competitive price,

6. Flexible for all projects, no high minimum order quality requests,

7. Support drop shipping all over the world.

Application

ALL IN ONE Battery Sucessful Cases

Packing And Shipping

FAQ

Q1. Can ALL IN ONE Battery Technology Co.,Ltd. ship battery out of China?
R1: Yes, we can ship to any country out of China, you can tell us your address to check.

Q2. How does ALL IN ONE Battery Technology Co Ltd ship the LiFePo4 battery packs?
R2: For sample order or small battery packs, we can ship by express through Fedex, UPS, TNT etc. If whole parcel over 100KG, can ship by air or by sea, sea shipping is more cheaper.
Customer can tell your nearest airport name and sea port name for Lithium Valley sales person to check the best option for you.

Q3. Can we put different LiFePO4 battery pack in parallel or series by ourself?
R3: Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention;
1> Make sure the voltage of each battery are same before put inparallel. If they are not same, charge them to the same rate.
2> Don't not put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack.
3> Advise us the target capacity of the whole pack if you would like to put them in series. We will choose the suitable BMS for each battery.
4> If you are not professional in parallel and series batteries, please don't handle the battery by yourself.
It may cause danger and hurt the cycle life of battery.

Q4. Can we put different LiFePO4 battery pack in series by ourself?
R4: You can buy big voltage directly from us. We suggest do not out them in series by yourself, it will hurt the cycle life of the pack.

Q5. Does your battery pack include BMS? Can we use it for car?
R5: Yes, our battery pack include BMS, you can use it for low speed car only or aux. power for standard car. Do not use it for standard car directly, that will need more complex design BMS for the pack.

Q6. What is your warranty?
R6: We offer 2 years warranty for all our battery pack. we ensure at least 2000 cycle life for the LiFePO4 battery pack, which means, after 2000@80% DOD, there will still around 60% capacityt left. You can use it for at least 5 years for normal 1 time charge and discharge everyday.

Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!
