LifePO4 Battery 48V 100Ah lithium battery solar storage 48v Rechargeable Battery Pack

2022-03-29 03:31

Battery Specifications

Model No	AIN2400	AIN5000	AIN7200	AIN9600	AIN12000
Voltage	48 V	48 V	48 V	48 V	48 V
Capacity	50Ah	100Ah	150Ah	200Ah	250Ah
Energy	2.4KWH	5.12KWH	7.68KWH	10.24KWH	12.80KWH
Operation voltage	35.25-54.75 Vdc	37.6-58.4Vdc	37.6-58.4Vdc	37.6-58.4Vdc	37.6-58.4Vdc
Max.charging voltage	54.75Vdc	58.4 Vdc	58.4 Vdc	58.4 Vdc	58.4 Vdc
Max.charging and discharging current	50A	100A	100A	100A	100A
Max Power	2400W	5120W	7680W	10240W	12800W
Life time(25°C)	10 years
Life cycles(80% DOD, 25°C)	6000 Cycles
Storage time / temperature	5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C
Operation temperature	-20°C to 60°C @60+/-25% Relative Humidity
Storage temperature	0°C to 45°C @60+/-25% Relative Humidity
Lithium Battery Standard	UL1642, IEC62619, UN38.3, ROHS,CE-EMC
Enclosure protection rating	IP65
Dimensions(L×W×H)mm	48241089	482400177	482430222	482500280	482500280
Weight	24KG	43KG	65KG	82KG	100KG

Key Features
♦Longer Cycle Life : Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership
♦Lighter Weight : About 40% of the weight of a comparable lead acid battery . A " drop in" replacement for lead acid batteries
♦Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity

♦Wider Temperature Range : -20℃~60℃

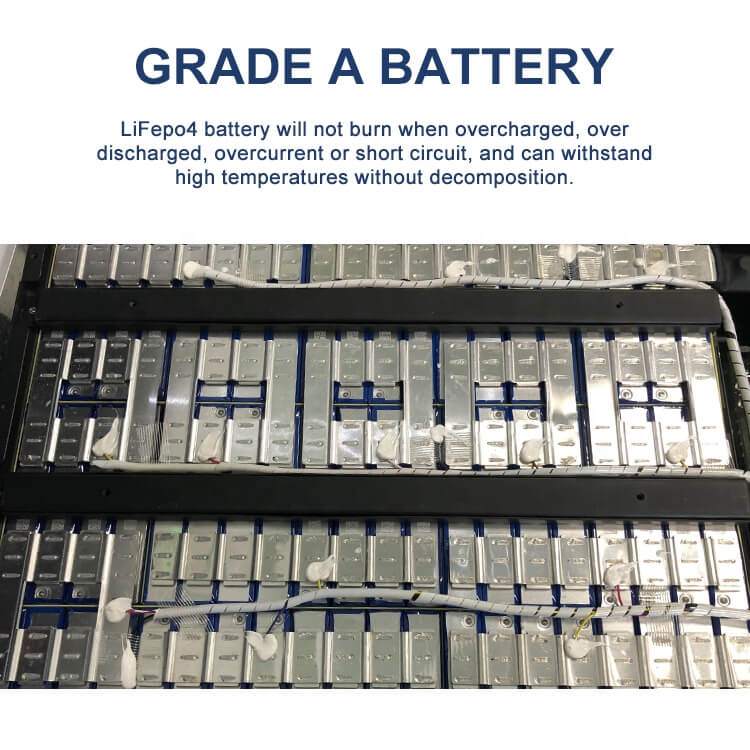

♦Superior Safety: Lithium Iron Phosphate chemistry eleminates the risk of explosion or combustion due to high impact overcharging or short circuit situation

Applications
♦Wheelchairs and scooters
♦Solar/wind energy storage

♦Back-up power for small UPS

♦Golf trolleys & buggies
♦Electric bikes
