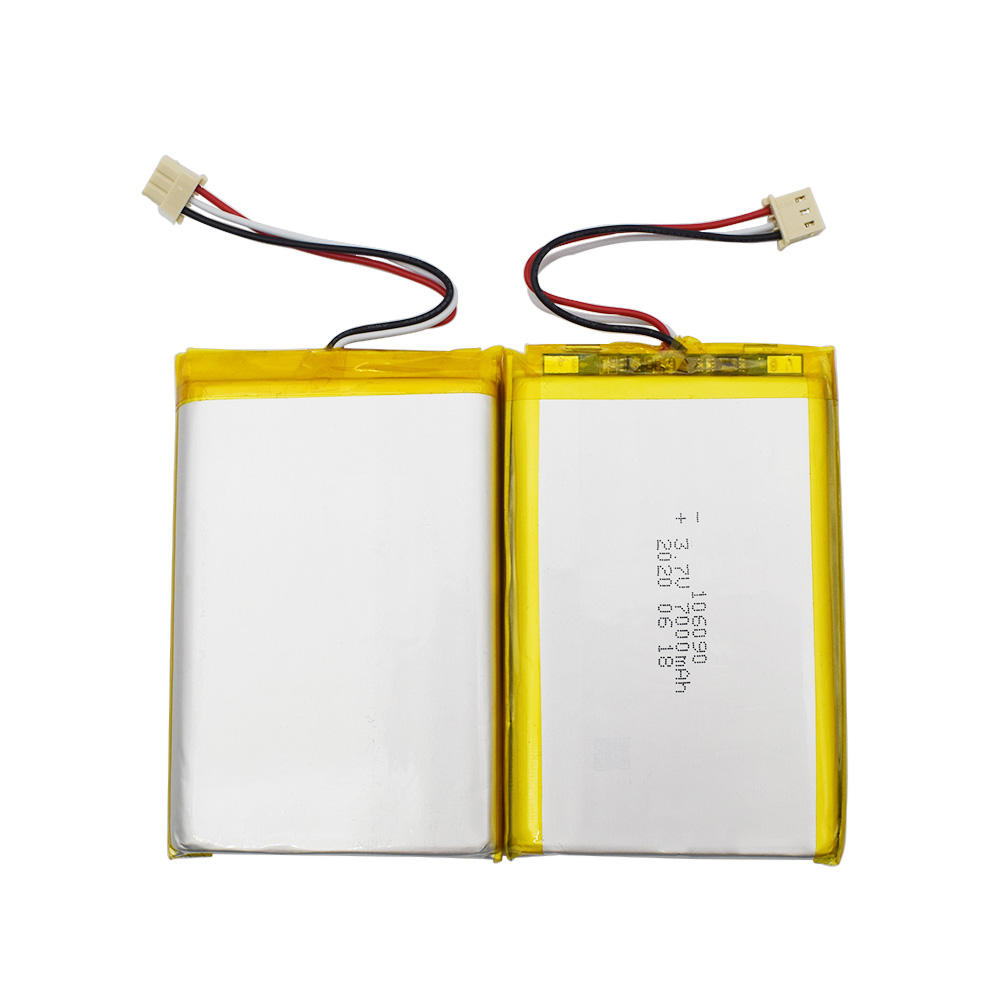

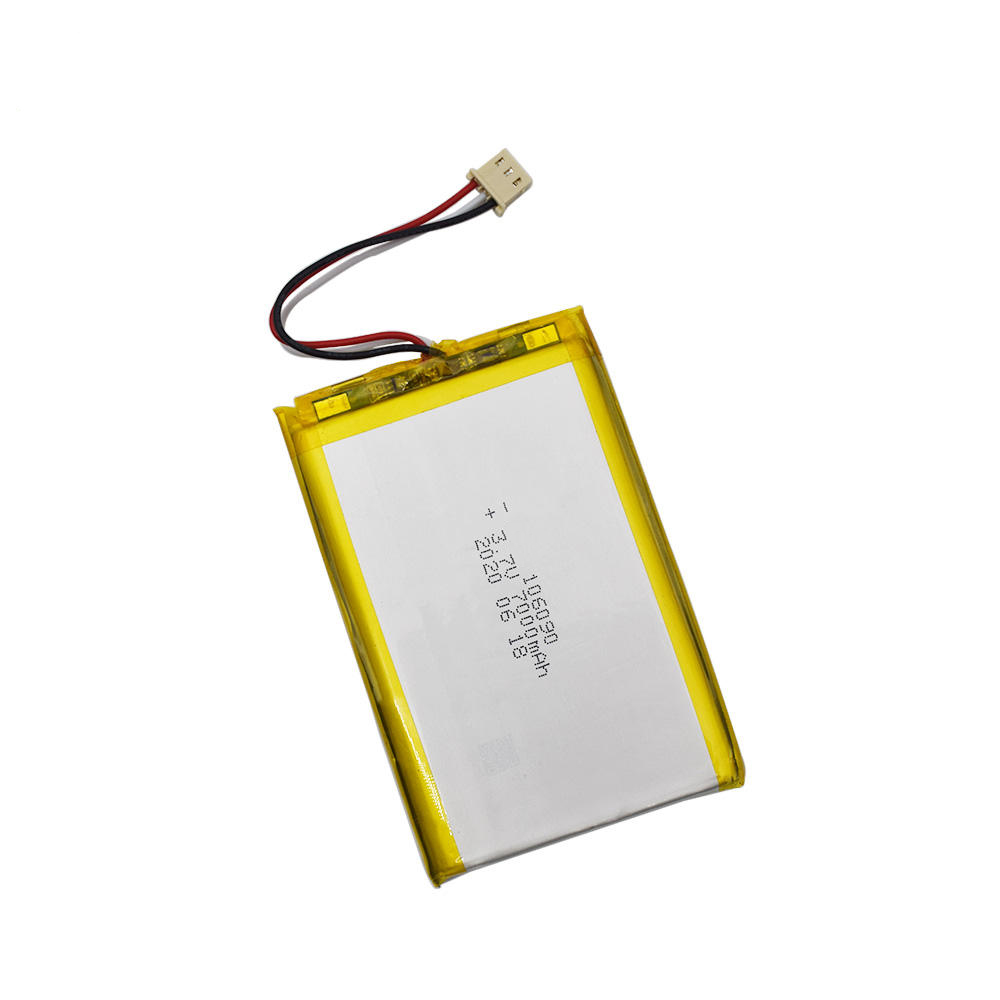

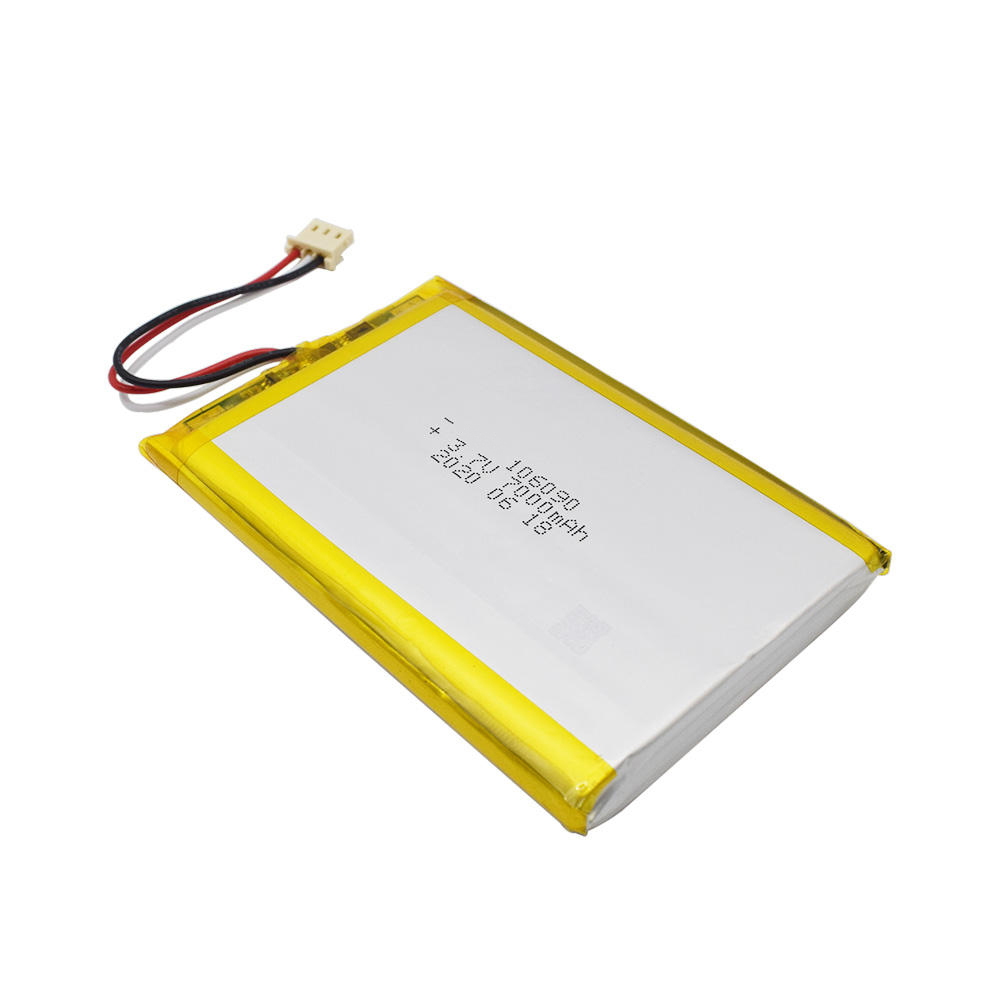

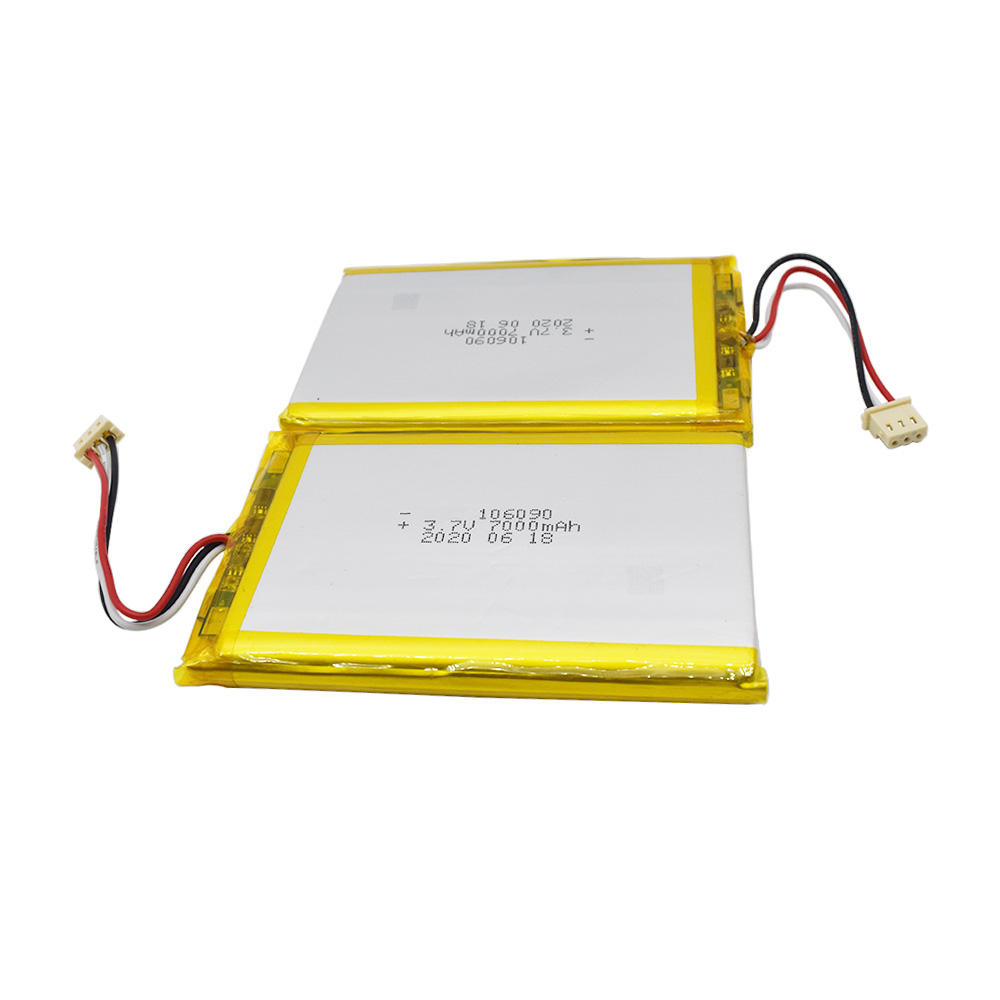

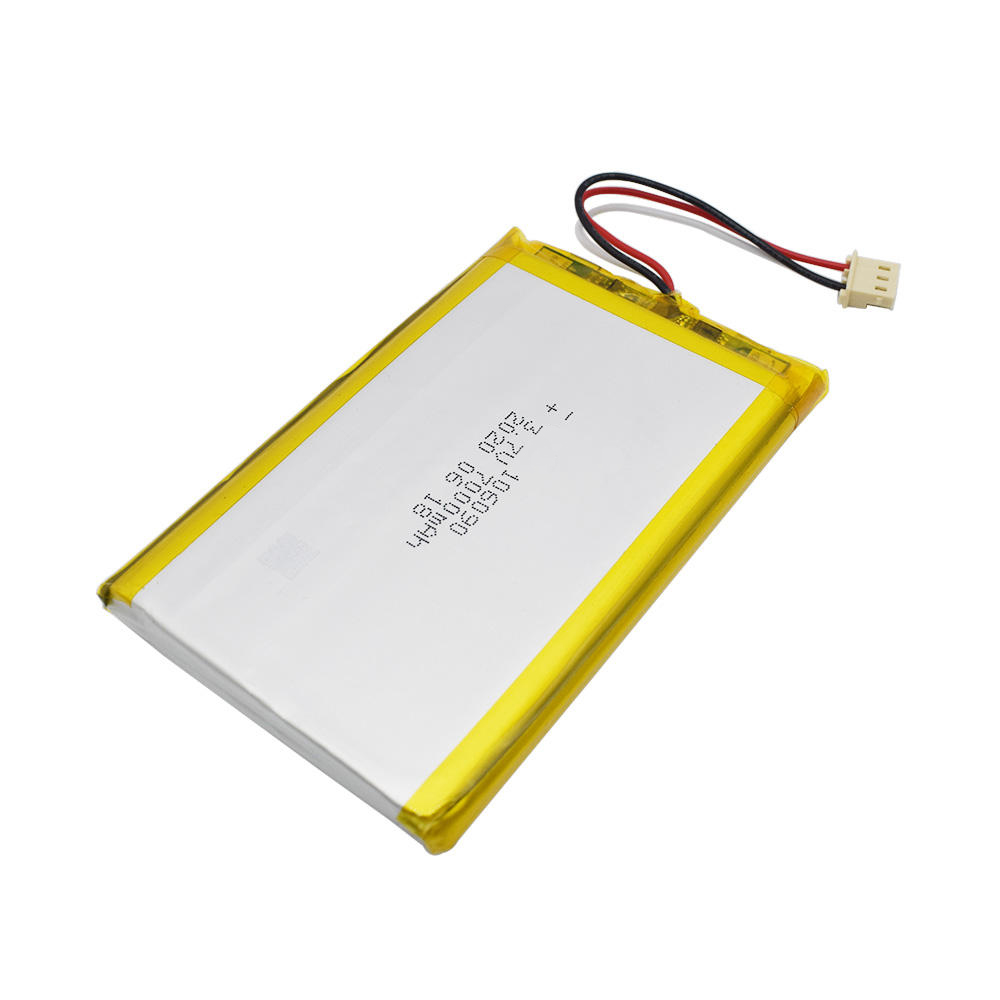

LiPO Battery 106090

2026-07-06 09:04

Specification

Items	Parameter
Battery model	AIN106090
Nominal voltage	3.7V
Minimum capacity	7000mAh
Charging voltage	4.2V
Discharging cut-off voltage	3.0V
Standard charging	0.2C /4.2V
Max charging	1.0C /4.2V
Standard discharging	0.2C/3.0V
Max discharging		continuous discharge	1.0C/3.0V
		non-continuous discharge	2.0C/3.0V
Shipment voltage	≥3.85V
Battery pack impedance
Operating temperature	Charging: 0°C ~ 45°C
	Discharging: -20°C ~60°C
Storage (At 50% SOC and specified temp, recoverable capacity in % vs time )	-10℃~25℃ (12 months ≥85% )
	-10℃ ~45℃ (6 months ≥85% )
	-10℃~55℃ (1 month ≥90% )
	20±5℃ is the recommended storage temperature
Visual Inspection	There should not be any remarkable scratches, cracks, bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell.

Feature

1. High density of energy
2. Environment friendly
3. Long cycle life, chargeable up to 500 times
4. Low internal resistance
5. Short-circuit production function, safe and reliable
6. Good consistency, low self-discharge
7. Can be customized numerous sizes
8. Wide application for electronics and industry

we promise
1.All products will be tested 100% before shipment to ensure that the product does not have any quality problems.
2.We guarantee that within 12 months from the date of receipt of the goods, we will not include man-made damage. If there is any quality problem, we will provide return service.

Customer Service
1.OEM ODM service is acceptable.
2.Orders up to 1000pcs, the sample fee can be refunded.

Application

Our Factory

We can provide you with customized services.

Customized different voltage and capacity lithium polymer battery.

The capacity and dimension can customize according to your request

1.Customized battery size and shell material.
2.Customized protection board charging and discharging current.
3.Customized connect plug and socket, connector wire.

Packing And Shipping

Shipping options		Recommend	Delivery time
Express	DHL	widely recommend	3-7 business days
	UPS	widely recommend	3-7 business days
	FEDEX	recommend	5-7 business days
	TNT	recommend	5-7 business days
	EMS	widely recommend	5-10 business days
Post mail		for sample order	7-60 business days
Airfreight		for sample order	5-7 business days
By sea		for sample order	7-35 business days

FAQ

1,Q: What's the main product in ALL IN ONE?
A: Rechargeable battery. Li-ion, Lipo battery and power battery pack.

2,Q: What is overcharge?
A: After charge, tested the batteries' initial state and capacity. Charge to 10.0V at 3C current, then charge to 0.01C at CV mode.
Observe changes in battery appearance.

3,Q: What is over discharge?
A: After charge, test the batteries' initial state. When the batteries are normal, discharge to 0V at 0.5C. Observe changes in
battery appearance.

4. Q: Can I have a sample order?
A: Yes, we accept sample order to test and check quality. Batteries can be made as require.

5. Q: Do you have MOQ limit?
A: Yes, we have MOQ limit for mass production, but it depends on battery model. Please contact us for details.

6. Q: How about the lead time?
A: Samples will takes 5-7 business days. Mass production will takes 25-30 days. It depends on quantity.

7. Q: How about shipping and delivery time?
A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP
service, delivery time is 11-15 business days. Airline and sea shipping also available.

8. Q: What about after-sale service?
A: We will offer you 1 year guarantee. If there are any problems, please inform us, we will offer you positive solutions.

Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!
