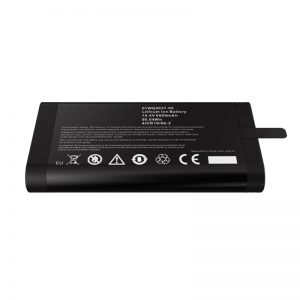

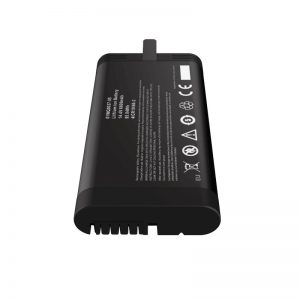

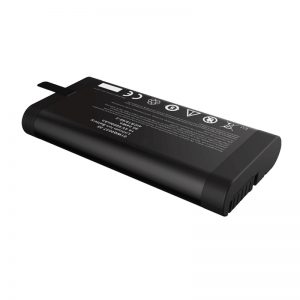

14.4V 6600mAh 18650 Lithium Ion Battery Panasonic Battery for Network Tester with SMBUS Communication Port

2020-08-25 06:12

14.4V 6600mAh 18650 Lithium Ion Battery Panasonic Battery for Network Tester with SMBUS Communication Port

• Model number:01WQ0037-05
• Nominal voltage:14.4V
• Nominal capacity:6600mAh
• Battery cell: NCR18650GA/3300mAh/3.6V
• Dimension:(150.4*77.4*22.5)±0.25mm
• Application: network tester

Product Detail

Product number: AIN14/4-6600

Cell model：NCR18650GA/3300mAh/3.6V

Battery specification: NCR18650GA-4S2P-6600mAh-14.4V

Nominal voltage：14.4V

Nominal capacity：6.6Ah

Charging voltage: 16.8V

Charging current: ≤3.3A

Discharging current: ≤6.6A

End-off voltage: 12.0V

Internal resistance: ≤250mΩ

Battery weight: about 390g

Product dimension: (150.4*77.4*22.5)±0.25mm

Charging temperature：10～45℃

Discharging temperature: -20～60 ℃

Storage temperature: -20～35 ℃

Temperature protection: charge at 45±2℃ and discharge at 60±2℃

Battery case: PVC

Lithium ion battery protection: overcharge protection, over-discharge protection, overcurrent protection, short circuit protection, temperature protection, low voltage alarm, etc.

Application field: network tester

Product features

1. Data communication management SMBUS: adopt TI software management chip, and IC monitors the temperature, voltage, capacity, percentage, etc. of the battery pack.
2. The host machine transmits the data by SMBUS to know the information of battery pack so as to improve the security.
3. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
