Hot Products 3.2V 6Ah Battery LiFePO4 Cell 32650 32700 with 2500times Cycle Life

2020-11-23 03:27

Specification

Item	Condition/Note	Specification
Norminal Capacity	1C discharge capacity	6.0Ah
AC Impedance	At AC1000Hz	6.5mΩ
Norminal Voltage		3.2V

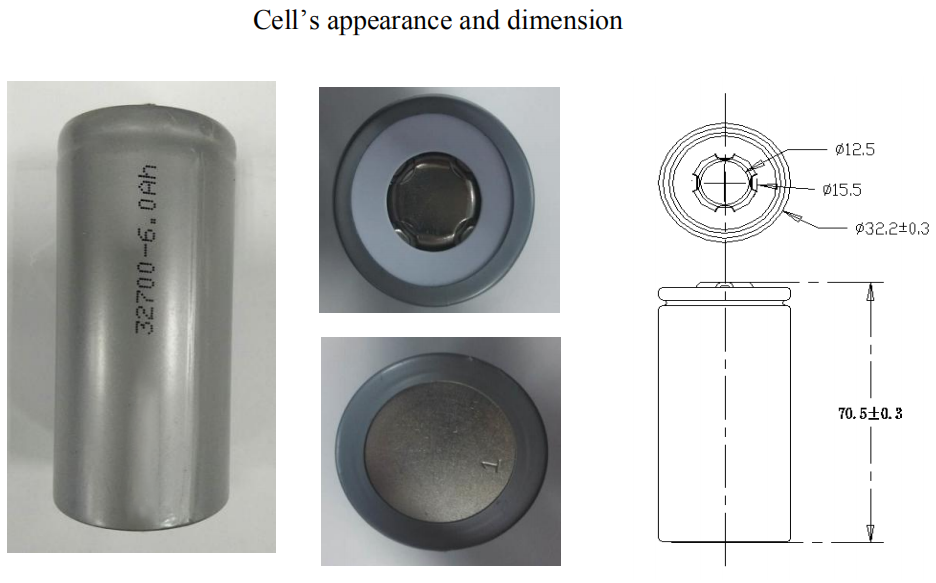

Cell SIze	Diameter: 32.2±0.3mm, Max 32.5mm	Height: 70.5±0.3mm, Max.70.8mm
Cell Weight		140±5g
End-of-charge Voltage	CC Mode	3.65V
End-of-discharge Current	CV Mode	0.3A
Charging Method	Standard Charging	1C at CC/CV 60min
Charging Method	Max. Continuous Charging	6C at CC/CV 10min
End-of-discharge Voltage	CC Mode	2.0V
Max continuouse Discharge Current		36A
Max Pulse Discharging Current	3s	60A
Cycle Life	1C/100% DOD	≥2000 cycles
Operating Temperature Range	Charging Temperature Discharging Temperature Storage Tempearture	0~60℃ -20~60℃ -20~45℃
Appearance	Without break,scratch,distortion,contamination,leakage and so on

Without screw: 32650 With screw: 32*70mm 32700

Benefits

* Low self-discharge
* Double safety protection
* Sturdy and pressure resistanct steel envelope
* Excellent high and low temperature performance
* With outstanding high level of vibrations and shocks

Main Application

- EV/PHEV- UPS

- Storage energy
- Starting power supply

Packing And Shipping

Why Choose ALL IN ONE

1. We offer one-stop power solutions, which saves design time and cost for customer:
-- Pack design / External Case design / BMS design

2. Strict quality control system which enhances customers' competitiveness:
-- 100% PCM test by IQC
-- 100% Capacity test by OQC

3. Delivery on time & excellent service:
-- Fast Delivery in 10 days if stock
-- 8h response & 48h solution

4. Experienced R&D team, be customer's professinonal power solution consultant:
-- Comprehensive Battery Test Center (Safety and Reliable test)
-- Powerful ODM Ability to Afford Customized Design Requirement

Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!
