High Voltage 48V 96V 192V LiFePO4 Battery 50Ah 100Ah 200Ah 300Ah BMS LiFePO4

2021-10-12 08:49

Specification

Model	AIN-LFP 5000	AIN-LFP 2400	AIN-LFP 2500	AIN-LFP 2600HV
Total energy(DC)	5.1kWh	2.4kWh	2.5kWh	2.56kWh
Usable energy(DC)	4.6kWh	2.2kWh	2.2kWh	2.2kWh
Norminal dis-/charge power	3.0kw	2.75kw	3.75kw	4.6kw
Peak power(only discharge)	6kw for 3s	3kw for 3s	3kw for 3s	3kw for 3s
Constant current(only discharge)	80A	40A	40A	20A
Voltage	48-56Vdc	48-56Vdc	48-56Vdc	96-112Vdc
Norminal voltage	51.2Vdc	51.2Vdc	51.2Vdc	102.4Vdc
Norminal current	60A	30A	30A	15A
Max.charge voltage	57.6Vdc	57.6Vdc	57.6Vdc	115.2Vdc
Weight	45kg	27.5kg	23kg	24kg
Dimension(mm)	500442135mm	500442133mm	50044288mm	50044288mm
Max.recommended DOD	90%
Operating condition	Indoor
Operating temperature	0--45 deg (charge)； -10-- 50 deg (discharge)
WIFI frequency range	2400MHz--2483MHz
Humidity	＜60%(No condensed water)
Pollution degree	3
Over voltage category	II
Cooling type	Natural cooling
Case material	Metal
Color	Black or White
Installation	Wall mounting/Ground Installation
IP rating	IP20
Protective class	I
Max.numbers of parallel or series	8S/4P	8S/8P	8S/8P	6S
Warranty	10years
Life span	>15years
Communication	CAN/RS485
Protection mode	Dual hardware protection
Battery protection	Over-current/Over-voltage/Short circuit/Under voltage/Over temperature
Safety	CE TUV
Hazardous material classification	9
Transportation	UN38.3

The Energy Storage battery has following advantages

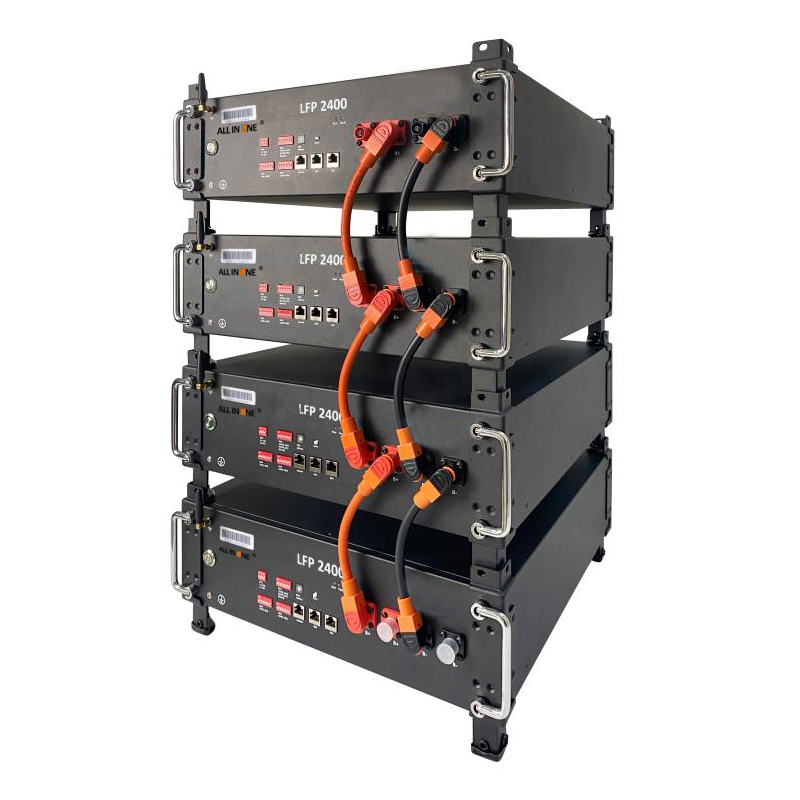

1.Assemblly freely in series or parallel: up to 8S8P(448V326.4kWh)

2.High energy efficiency:Energy efficiency(charge and discharge)>97%

3.High Rate Charge & Discharge:Nominal 0.6C, Max 0.8C

4.More Safety:Dual hardware & Triple software protection

5.Safe and Reliable BMS:Relay design instead of mosfet

6.Long Life:Reliable LFP cells,Cycle life >6000 cycles

7.High Reliability:Key devices(Relay,Fuse) approved by CE and TUV

8.More Smart:With digital monitor system App with WIFI

9.Smart Design & Easy installation：Plug in & off

10.More Quiet:Without fan,more quiet and reduce the fan failure risk

How It Works

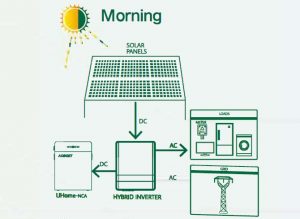

	Optimized self-consumption will be achieved. Batteries are used to store the excess energy produced by PV systerm

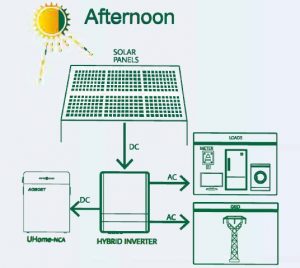

	Extra energy will be fed into the grid when batteries are fully charged and system has already met its self consumption requirement.

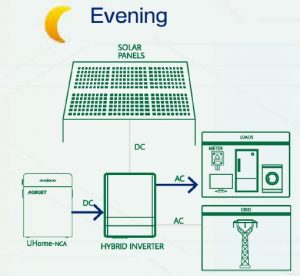

	Batteries will power the AC load when the sun sets.

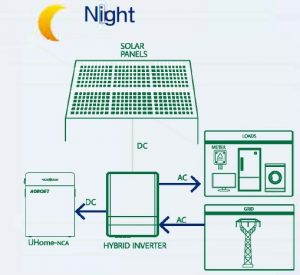

	If the battery capacity is insufficient to meet self consumption, electricity will be obtained from the grid.
