25.6V 150Ah LiFePO4 Lead Acid Replacement Lithium ion Battery Pack 24V 150Ah

2021-08-09 03:44

Specification

Battery Type:	LiFePO4 battery
Rated Voltage	25.6V
Rated Capacity	150Ah
Continuous Charge Current	150A
Continuous Discharge Current	150A
Peak Discharge Current	200A 10S
Recommend Charge Current	30A
Charge Cut-off Voltage	29.2V
Discharge Cut-off Voltage	20V
Working Temperature (CC/CV)	-20°C~60°C
Self-discharge	25°C，monthly ≤3%
Efficiency of Charge	100%@0.5C
Efficiency of Discharge	96-99% @1C
Cycle Life	≥5000 cycle
Dimension	522269220mm
Weight	39kg
Display Screen	Yes
Bluetooth	Optional

1. Can add LCD fuel gauge.

2. Can add Control switch.

3. Can add Coulomb lamp display.

4. Can add USB connector.

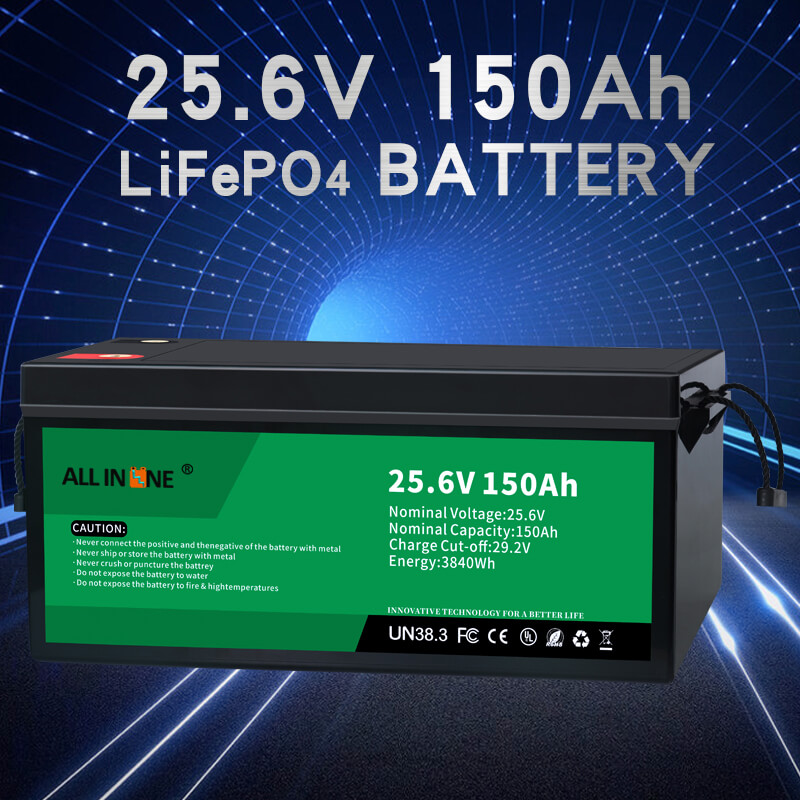

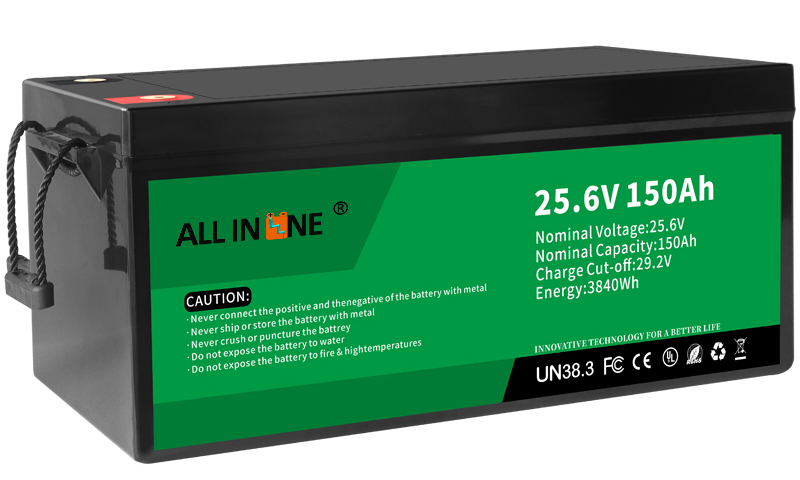

25.6V 150Ah LiFePO4 Battery

This 25.6V 150Ah LFP battery can be perfect substitution to AGM/GEL battery, ALL IN ONE also provides customized batteries with different capacity, dimension and functions according to customer's specific requirements. Comparing with AGM/GEL lead acid batteries, ALL IN ONE Li-ion (LiFePO4) substitution solutions has the following advantages:

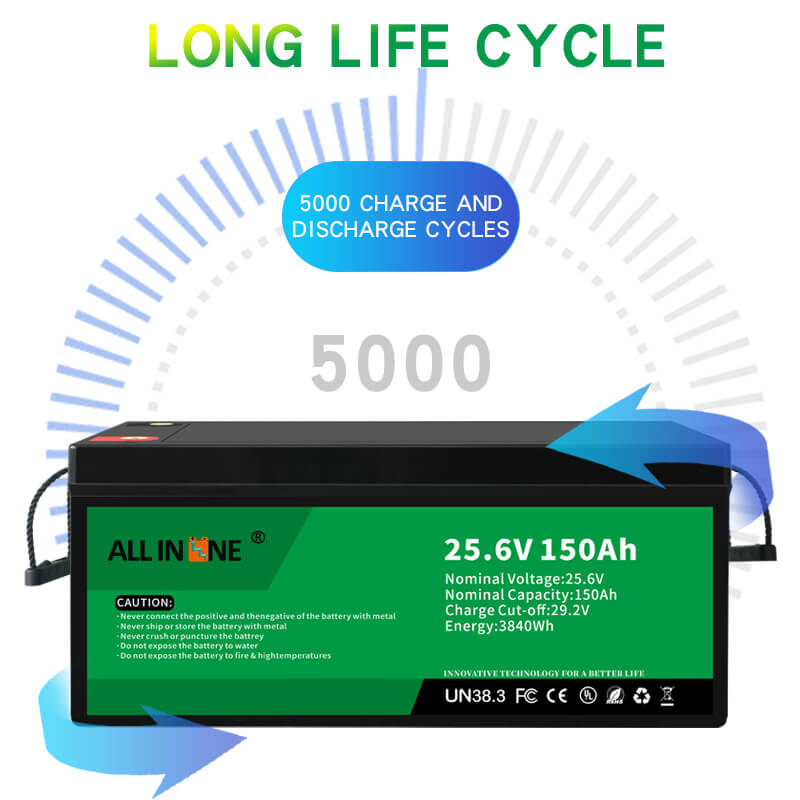

1. Long life: LiFePO4 battery has a long life cycle which is more than 5000 times and its life span is up to 10 years.

2. Light in weight: Li-ion (LiFePO4) substitution battery is only approx. 1/3 of lead acid battery in weight.

3. Deep discharge: the power supplied by LiFePO4 is 25% higher than the power supplied by AGM/GEL lead acid battery with same capacity.

4. Wide working temperature: LiFePO4 battery has wide working temperature range of -20°C ~ 60°C. 5. Environmental friendly: LiFePO4 does not contain any harmful heavy metal elements, it is green, non-toxic, pollution-free.

Related LiFePO4 Battery Packs

Application

Electric Propelling Applications
♦ Engine Starting Battery
♦ Commercial Bus and Transit:
E-car, E-bus, Golf troller/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair,
E-truck, E-sweeper, Floor cleaner, E-walker etc.
♦ Intellectual Robots
♦ Power tools: electric drills, toys
Energy Storage
♦ Solar-Wind Power System
♦ City Grid (On/Off)
Back-up System and UPS
♦ Telcom Base, CATV system, Computer Server Center, Medical Instrumnt, Military Equipment

Our Factory

Packing And Shipping

FAQ

Q1.Do you have your own brand or support OEM/ODM services?
A1: Yes, Our Own brand is ALL IN ONE,and we provide OEM/ODM services if you need.

Q2. How do your company ship the LiFePo4 battery packs?
A2: For sample order or small battery packs, we always ship by express through DHL, Fedex, UPS, TNT etc. If whole parcel over 100KG, we always ship by air or by sea, sea shipping is more cheaper. Please tell us where is your nearest airport name and sea port name for check the best ship option for your order.

Q3. Can we put different LiFePO4 battery pack in parallel or series by ourself?
A3: Yes. The battery can be put in parallel or series by customers. But there are few tips we need to pay attention;
1.Make sure the voltage of each battery are same before put in parallel. If they are not same, charge them to the same rate.
2.Don't put discharged battery and undischarged battery in parallel. This may reduce the capacity of the whole battery pack.
3.Advise us the target capacity of the whole pack if you would like to put them in series. We will choose the suitable BMS for each battery.
4. If you are not professional in parallel and series batteries, please don't handle the battery by yourself.It may cause danger and hurt the cycle life of battery.

Q4. Can we put different LiFePO4 battery pack in series by ourself?
A4: You could consider to buy big voltage from us directly. We don't really suggest out them in series by yourself, it will hurt the cycle life of the pack.

Q5. Does your battery pack include BMS? Can we use it for car?
A5: Yes, our battery pack include BMS, you can use it for low speed car only or aux. power for standard car. Do not use it for standard car directly, that will need more complex design BMS for the pack.
