12.8V 10Ah LiFePO4 Lead Acid Replacement Lithium ion Battery Pack 12V 10Ah

2021-08-16 11:01

Specification

Battery Type:	LiFePO4 battery
Rated Voltage	12.8V
Rated Capacity	10Ah
Continuous Charge Current	10A
Continuous Discharge Current	10A
Peak Discharge Current	20A 10S
Recommend Charge Current	2A
Charge Cut-off Voltage	14.6±0.2V
Discharge Cut-off Voltage	10V
Charge Mode	0.2C to 14.6V, then 14.6V until charge current to 0.02C(CC/CV)
Working Temperature (CC/CV)	-20°C~60°C
Self-discharge	25°C，monthly ≤3%
Efficiency of Charge	100%@0.5C
Efficiency of Discharge	96-99% @1C
Internal Resistance	≤10mΩ
Cycle Life	≥5000 cycle (80% DOD)
Dimension	1519996mm
Weight	1.6 kg
Display Screen	Optional

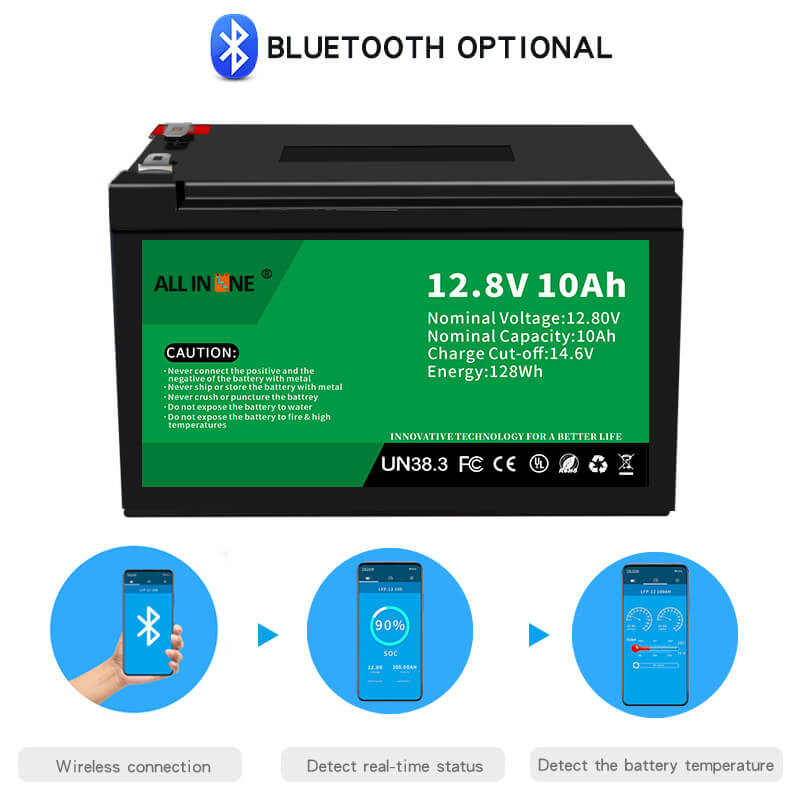

Bluetooth	Optional

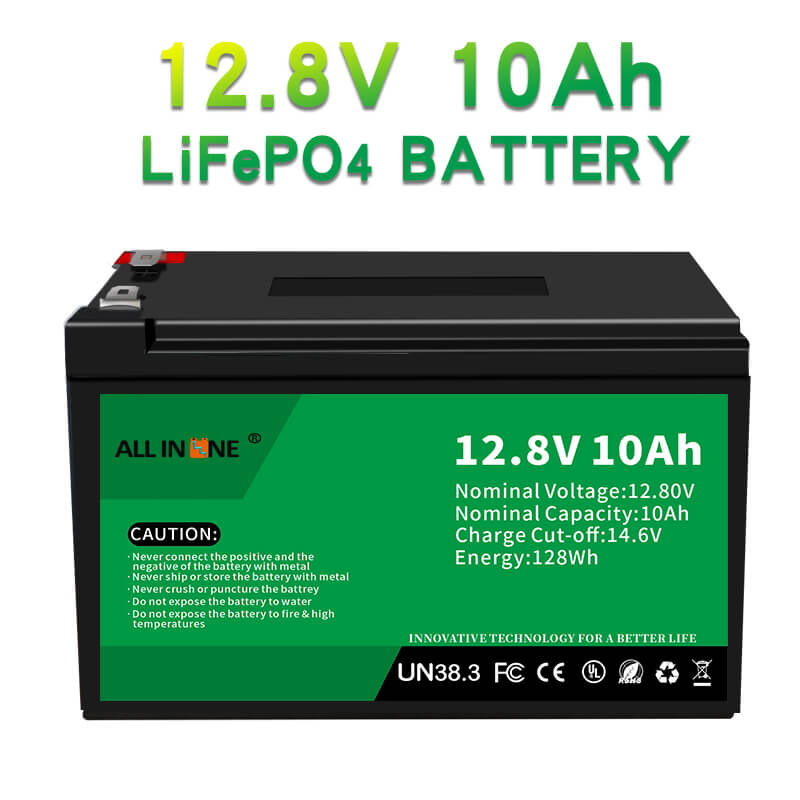

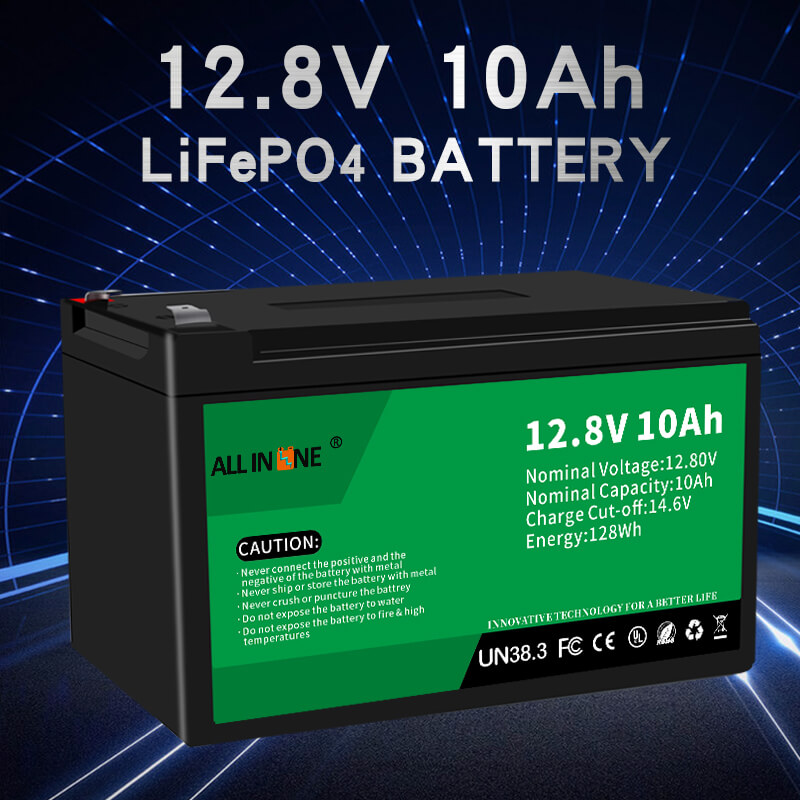

12.8V 10Ah LFP Battery

This 12.8V 10Ah LFP battery can be perfect substitution to AGM/GEL battery, ALLIN ONE also provides customized batteries with different capacity, dimension and functions according to customer's specific requirements.

Comparing with AGM/GEL lead acid batteries, ALL IN ONE Li-ion (LiFePO4) substitution solutions has the following advantages:

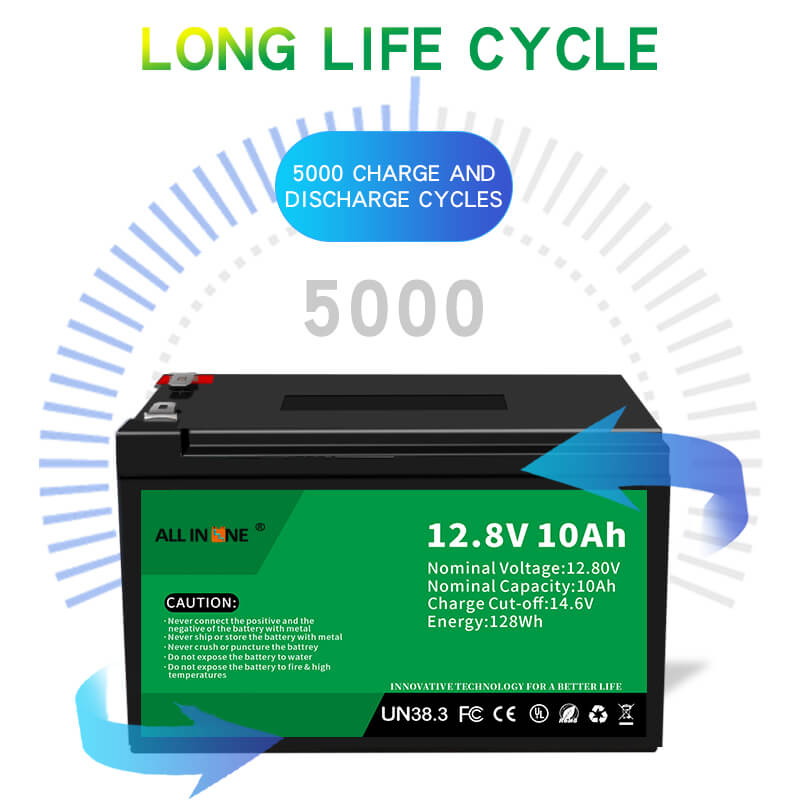

1. Long life: LiFePO4 battery has a long life cycle which is more than 5000 times and its life span is up to 10 years.

2. Light in weight: Li-ion (LiFePO4) substitution battery is only approx. 1/3 of lead acid battery in weight.

3. Deep discharge: the power supplied by LiFePO4 is 25% higher than the power supplied by AGM/GEL lead acid battery with same capacity.

4. Wide working temperature: LiFePO4 battery has wide working temperature range of -20°C ~ 60°C.

5. Environmental friendly: LiFePO4 does not contain any harmful heavy metal elements, it is green, non-toxic, pollution-free.

Related LiFePO4 Battery Packs

Application

Our Factory

Packing And Shipping

FAQ

Q1: Can I have samples to test? And what is lead time for sample order?
Yes,we can supply samples in 5-7 days depending on different product items and clients' requirement.
For normal in stock product,2~5 days; For customized product,3~7days depends on requirements.

Q2: What is the warranty for the products?
1~10 years,Since our product range is wide,Minimum12v 40Ah, Max 2MW container energy storage system,Different products has different warranty,welcome to check before placing order.

Q3: What is your company's advantage?
We're direct factory,have very rich exprience in customizing kinds of high voltage,high capacity,high performance battery packs for 12v/24v/48v/80v RV caravans, Electric forklift, Golf cart, Marine, AGV, Lead acid batteries replacement, Solar home energry storage,384V/460V/614V Aircraft tractors,heavy truck, Mine train,110v/220v DC power supply, ESS cabinet,ESS container and so on, can offer you the best & professional technology support.>

Q4: Do you accept OEM/ODM?
Yes,welcome!

Q5: What is the lead time for the mass order?
Generally speaking,about 7~20 days depending on different items after getting down payment and confirmation about the samples.

Q6: What is the payment terms?
Sample payment accept Paypal,Western union, Escrow;and Mass order by T/T.

Q7: What kind of certificate can offer?
CE,RoHS,UN38.3,MSDS,etc,If need IEC-62133,PSE and others, please consult with us

Note: We are a battery manufacturer. All products do not support retail, we only do B2B business.please contact us for product prices!

Categories: Cylindrical LiFePO4 Battery
